123 LD - Husqvarna String Trimmer (Original) IGNITION SYSTEM Parts Diagram

String Trimmer

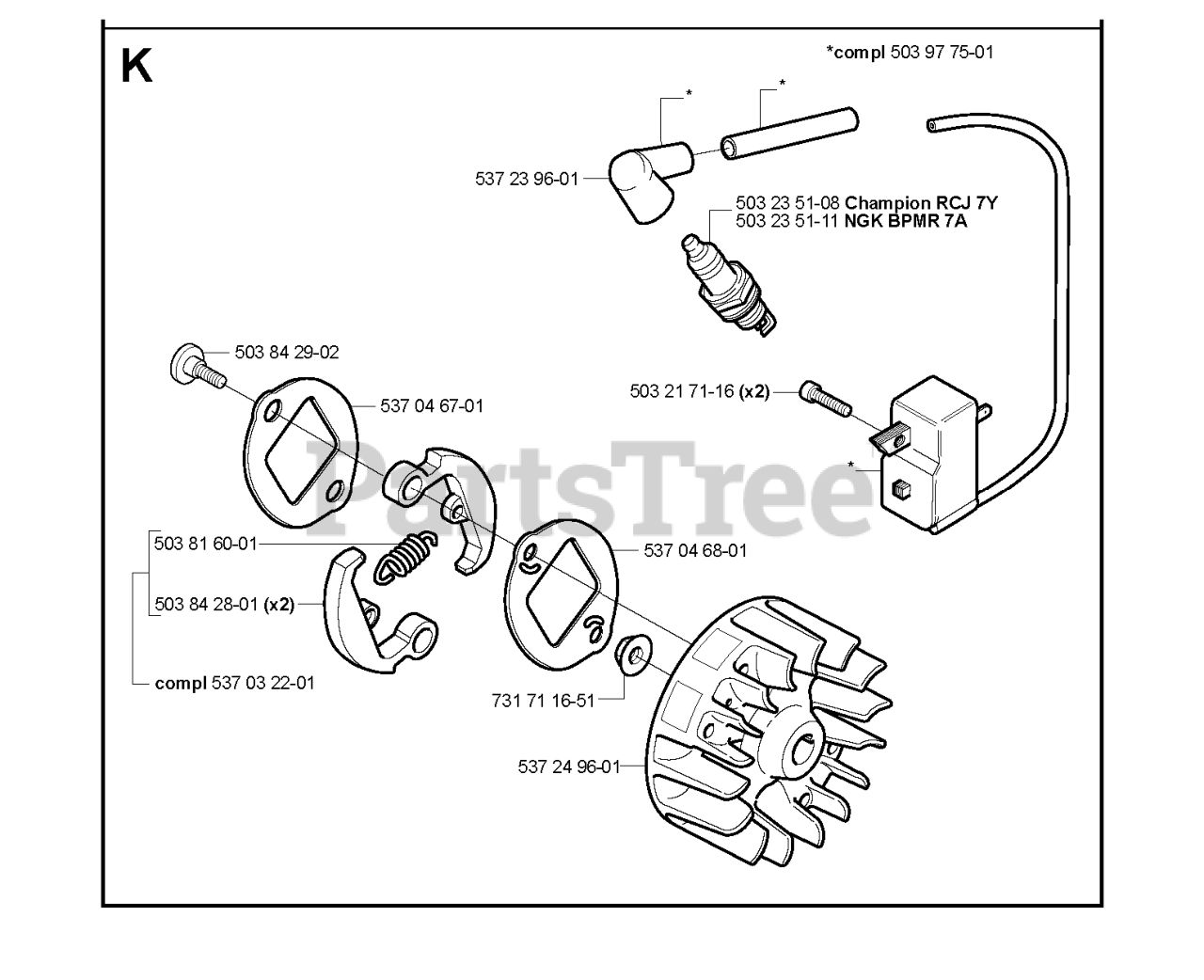

IGNITION SYSTEM Parts Diagram

  • Title

537 24 96-01

Husqvarna 537249601

FLYWHEEL
(Superseded to 537249602)

$87.99

$

Usually ships in 3-10 days

0

503 21 71-16

Husqvarna 503217116

SCREW
(Superseded to 586444901)

$3.49

$

In Stock, Qty 7

0

537 23 96-01

Husqvarna 537239601

SPARK PLUG CONNECTION

$14.99

$

In Stock, only 2 left!

0

503 23 51-11

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: NGK BPMR 7A

$3.99

$

In Stock, Qty 20+

0

537 04 67-01

Husqvarna 537046701

WASHER
(Superseded to 537046702)

$5.99

$

Usually ships in 3-10 days

0

537 03 22-01

Husqvarna 537032201

CLUTCH

Note: COMPLETE ASSEMBLY

$66.99

$

In Stock, only 1 left!

0

537 04 68-01

Husqvarna 537046801

WASHER
(Superseded to 537046802)

$8.99

$

In Stock, only 1 left!

0

503 81 60-01

Husqvarna 503816001

SPRING

$6.99

$

In Stock, Qty 9

0

503 84 28-01

Husqvarna 503842801

CLUTCH

$17.99

$

In Stock, only 1 left!

0

731 71 16-51

Husqvarna 731711651

FLANGE NUT

$7.49

$

In Stock, only 2 left!

0

503 97 75-01

Husqvarna 503977501

IGNITION MODULE
(Superseded to 537042301)

Note: COMPLETE ASSEMBLY

$102.99

$

In Stock, Qty 5

0

503 84 29-02

Husqvarna 503842902

SCREW

$4.99

$

In Stock, only 3 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: Champion RCJ 7Y

$3.99

$

In Stock, Qty 20+

0
