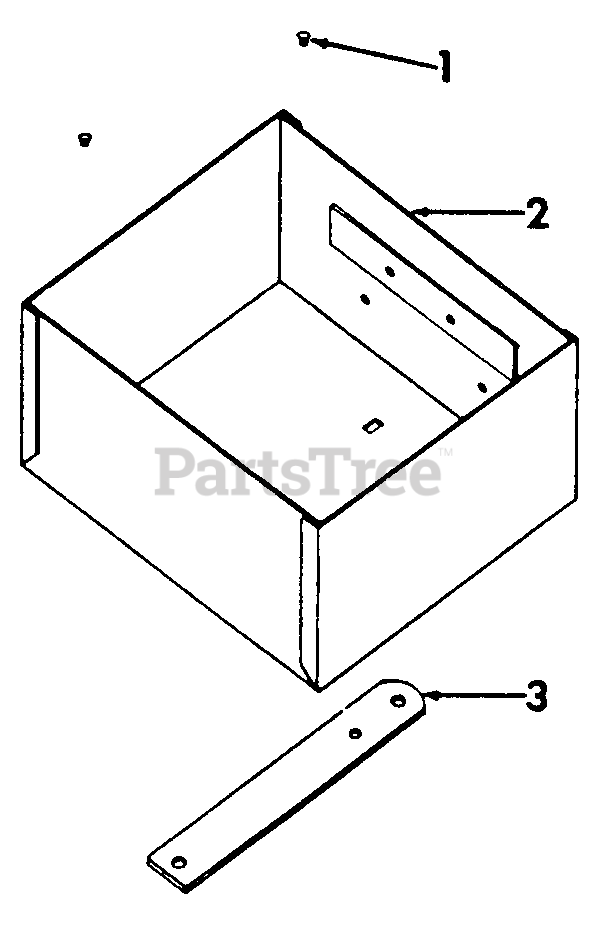

123 - Cub Cadet Garden Tractor Utility Box Parts Diagram

Garden Tractor

Utility Box Parts Diagram

  • Title

1

~NLA

Pin, Drain Hole

$

$

Not available

Pin, 1/16 X 1/2 Cot *

$

$

Not available

2

~NLA

Box Assy, Utility

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 C-Z Hex Hd Cap

$

$

Not available

Screw, 3/8-16 X 1-1/8 C-Z Hex Hd Cap*

$

$

Not available

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-561277-R1

Spacer, Utility Box

$

$

Not available

3

Cub Cadet IH-390025-R1

Extension, Drawbar

$

$

Currently unavailable

Cub Cadet 710-0389

Bolt, 3/8-16 X 3/4 C-Z Sq Nk Crg

$4.49

$

Usually ships in 3-6 days

0

Bolt, 1/2-13 X 1-1/4 C-Z Sq Nk Crg*

$

$

Not available

Cub Cadet 712-0206

Nut, 1/2-13 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0798

Nut, 3/8-16 C-Z Hex

$4.49

$

In Stock, Qty 6

0

Cub Cadet 736-0169

Washer, 3/8 C-Z Med Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0921

Washer, 1/2 C-Z Med Lock

$4.49

$

In Stock, Qty 6

0
