123-246C401 - Yard-Man Walk-Behind Mower (1993) Handle And Wheel Assembly Parts Diagram

Walk-Behind Mower

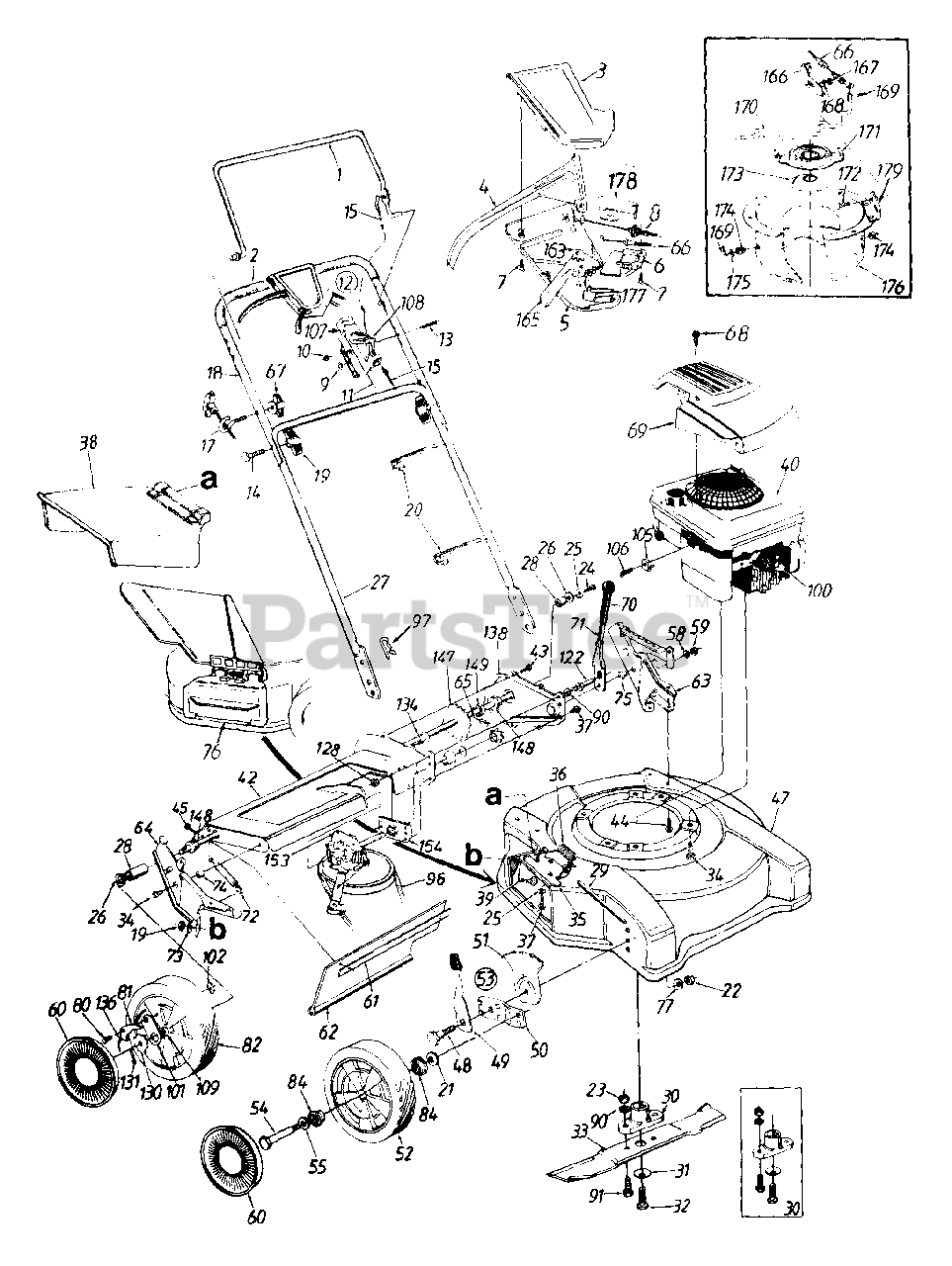

Handle And Wheel Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y. (Std.)
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 720-0225

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

3

MTD 731-0904

Upper - S.P. Control Cover
(Superseded to 753-0717)

$

$

Not available

4

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

5

MTD 731-0905

Lower - S.P. Control Cover
(Superseded to 753-0717)

$

$

Not available

6

MTD 731-0906

S P. Control Cover
(Superseded to 753-0717)

$

$

Not available

7

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

8

MTD 746-0710A

S.P. Adj. Cable - 48" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

9

MTD 736-0501

Spr. Wash 66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

10

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

11

MTD 746-0843

Throttle Control Wire 55"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

12

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 9, 10, 13, 107, 108)

$36.99

$

In Stock, only 1 left!

0

13

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 2 left!

0

14

MTD 710-1174

Curved Carr Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

15

MTD 746-0550

Control Cable 39" Lg.
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

17

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

18

MTD 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

MTD 749-0539B-0637

HANDLE-UPPER - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

19

MTD 720-0276

Hand Knob 5/16-18 Thd.
(Superseded to 920-0276)

Note: New Part

$3.99

$

In Stock, Qty 8

0

20

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-0105

Bell-Wash..38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

24

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0160

Fl-Wash..531" I.D. x .93"

$4.49

$

In Stock, only 2 left!

0

27

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Note: New Part

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

28

MTD 748-0190

Spacer .513" I.D. x .703"

$6.49

$

In Stock, Qty 11

0

29

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

30

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

31

MTD 736-0453

Bell-Wash..46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

33

MTD 742-0722

22" Blade
(Superseded to 942-0722)

Note: New Part

$31.99

$

Usually ships in 3-6 days

0

34

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

35

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

36

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

37

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

38

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

39

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

40

Engine

$

$

Not available

42

MTD 17055B

Chain - Axle Ass'y.

Variations

MTD 17055B-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17055B-0498

No Longer Available AXLE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17055B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

MTD 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17055B-0648

No Longer Available AXLE ASM- - TECH GRAY (0648)

$

$

Not available

MTD 17055B-0650

No Longer Available AXLE ASM- - RED METALLIC (0650)

$

$

Not available

MTD 17055B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 17055B-0667

No Longer Available AXLE ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17055B-0691

No Longer Available AXLE ASM- - BLACK JACK (0691)

$

$

Not available

$

$

43

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

?46

MTD 710-0429

Hex B-Tap Scr #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

47

MTD 682-0001

22" Deck Ass'y.

Variations

MTD 682-0001-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0001-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0001-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

48

MTD 738-0507B

Shld. Bolt .5" Dia. x .357

$4.49

$

In Stock, Qty 20+

0

49

MTD 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-1791

Front Wheel Ass'y. Comp.

Note: New Part

$

$

Not available

53

MTD 14578

Height Adj. Ass'y. Comp.- R.H
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

MTD 738-0102

Shld. Bolt .498" Dia. x 1.45"

$9.99

$

In Stock, Qty 10

0

55

MTD 736-0504

Wave Wash..51" I.D. x .75"
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

58

MTD 736-0300

Fl-Wash..385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

59

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

60

MTD 731-1426

Hub Cap
(Superseded to 731-1426B)

Note: New Part

$8.99

$

Usually ships in 3-6 days

0

61

MTD 14835

Retaining Strip

$

$

Not available

62

MTD 731-0672A

Rear Flap

$31.99

$

Usually ships in 3-6 days

0

63

MTD 16137B

L.H Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

64

MTD 16136A

R.k. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 713-0353

#48 Chain 5" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

66

MTD 746-0706

6 Spd Cable .53" Lg.

$

$

Not available

67

MTD 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

Note: New Part

$3.99

$

In Stock, Qty 20+

0

68

MTD 710-1256

Hi-Lo Scr #8-18 x 1.25" Lg.

Note: New Part

$5.99

$

In Stock, only 2 left!

0

69

MTD 731-1402

Engine Shroud

Note: New Part

$

$

Not available

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

MTD 732-0606

Height Adj. Lever

$

$

Not available

72

MTD 732-0481

Ext. Spring 5" O.D. x 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer .383" I.D. x 503"
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld Spacer .5" Dia.

$

$

Not available

76

MTD 731-1386A

Mulching Plug
(Superseded to 731-1386D)

Note: New Part

$

$

Not available

77

MTD 736-0356

Bell-Wash .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

80

MTD 738-0137

Shld Scr .342" Dia. x .268"

$

$

Not available

81

MTD 748-0188B

Pawl
(Superseded to 948-0188B)

$

$

Not available

82

MTD 734-1790

Rear Wheel Ass'y Comp.

Note: New Part

$

$

Not available

84

MTD 741-0484

Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

90

MTD 736-0169

L-Wash 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

91

MTD 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

96

MTD 754-0369

"V"-Belt
(Superseded to 954-0369)

$28.99

$

In Stock, Qty 5

0

97

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

100

MTD 735-0639

Spark Plug Boot

$

$

Not available

101

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

102

MTD 712-0414

Weld L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

105

MTD 751-0568

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

106

MTD 710-1237

Hex Self-Tap Scr #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

107

MTD 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

108

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

109

MTD 741-04868

Sleeve Brg. 1/2" I.D.

$

$

Currently unavailable

122

MTD 711-0805

Shld Pin 3/8-24 x 1.43" Lg.

$

$

Not available

128

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

131

MTD 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, only 2 left!

0

134

MTD 741-0522

Hex Flange Bearing

$

$

Not available

136

MTD 10622B

Spring - Nylon

$5.49

$

In Stock, Qty 20+

0

138

MTD 17053A

Chain Cover

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

147

MTD 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

MTD 741-0324

Hex Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Fl-Wash..531" I.D. x .93"

$4.49

$

In Stock, only 2 left!

0

153

MTD 717-0417B

Transmission Comp
(Superseded to 917-0417B)

Note: New Part (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

163

MTD 713-0397

Rack Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

165

MTD 731-0924

6 Spd. Shift Lever

$

$

Not available

166

MTD 17070

Adj. Cable Bracket
(Superseded to 17070-0637)

Variations

MTD 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

167

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

168

MTD 736-0270

Bell-Wash..265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

169

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

170

MTD 747-0684

Shift Rod

$

$

Not available

171

MTD 741-0500A

Movable Pulley Half Ass'y.
(Superseded to 941-0500A)

$

$

Not available

172

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

173

MTD 756-0503

Pulley Half

$7.99

$

Usually ships in 3-6 days

0

174

MTD 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

175

MTD 736-0278

Fl-Wash..328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

176

MTD 17073

6 Spd. Housing Ass'y.

$

$

Not available

177

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

178

MTD 16864

Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

179

MTD 17069

Cable Mounting Bracket

$

$

Not available
