123-238H062 - MTD Walk-Behind Mower (1993) (Lowes) Wheel And Deck Assembly Parts Diagram

Walk-Behind Mower

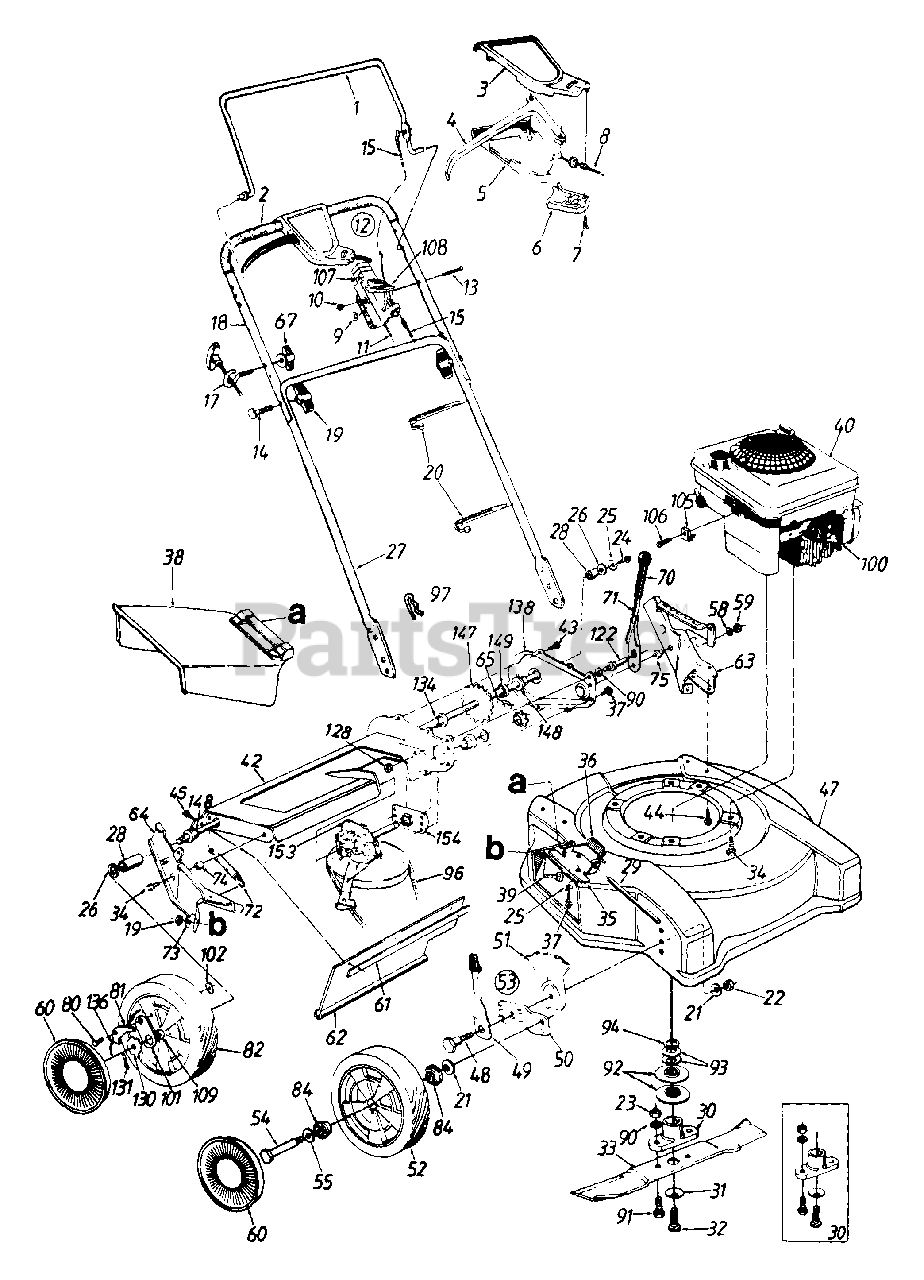

Wheel And Deck Assembly Parts Diagram

  • Title

1

MTD 647-0004A

Control Handle Ass'y. (Std.)
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

3

MTD 753-0833

Upper - S.P. Control Cover

$50.99

$

In Stock, only 1 left!

0

4

MTD 731-0620A

Control Lever

$15.99

$

In Stock, only 1 left!

0

5

MTD 753-0833

Lower - S P. Control Cover

$50.99

$

In Stock, only 1 left!

0

6

MTD 753-0833

S.P. Control Cover

$50.99

$

In Stock, only 1 left!

0

7

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #1O x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

8

MTD 946-0710A

S P. Adj, Cable - 48" Lg.

$40.99

$

In Stock, only 4 left!

0

9

MTD 936-0501

Spr. Wash..66" I.D.

$6.99

$

Usually ships in 3-6 days

0

10

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

11

MTD 946-0671A

Throttle Control Wire - 55"

$14.99

$

Usually ships in 3-6 days

0

12

MTD 811-0185

Throttle Box Comp.

Note: (Incl. Ref. 9, 10, 13, 107, 108)

$36.99

$

In Stock, only 1 left!

0

13

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

14

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

15

MTD 946-0550

Control Cable 39" Lg.

$21.99

$

In Stock, only 3 left!

0

17

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

18

MTD 749-0539C-0637

Upper Handle

$53.99

$

Usually ships in 3-6 days

0

19

MTD 920-0276

Hand Knob

$3.99

$

In Stock, Qty 9

0

20

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

MTD 736-0105

Bell-Wash..38" I.D. x.88"

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

23

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

24

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

26

MTD 936-0160

Fl-Wash..531" I.D. x .93"

$4.49

$

In Stock, Qty 9

0

27

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

28

MTD 748-0190

Spacer .513" I.D. x .703"

$6.49

$

In Stock, only 1 left!

0

29

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

30

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

31

MTD 936-0453

Bell-Wash..46" I.D.

$3.49

$

Usually ships in 3-6 days

0

32

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

33

MTD 942-0622

22" Blade

$

$

Not available

34

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 3 left!

0

35

MTD 17032A

Adapter Plate

$10.99

$

In Stock, only 2 left!

0

36

MTD 932-0593

Torsion Spring

$4.99

$

In Stock, only 3 left!

0

37

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

38

MTD 931-1034B

Chute Deflector Ass'y.

$72.99

$

In Stock, Qty 6

0

39

MTD 710-0260A

Carriage Bolt 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

40

Engine

$

$

Not available

41

MTD 12894A

Cable Clamp

Note: No Longer Available

$

$

Not available

42

MTD 17055B

Chain - Axle Ass'y.

Variations

MTD 17055B-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17055B-0498

No Longer Available AXLE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17055B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

MTD 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17055B-0648

No Longer Available AXLE ASM- - TECH GRAY (0648)

$

$

Not available

MTD 17055B-0650

No Longer Available AXLE ASM- - RED METALLIC (0650)

$

$

Not available

MTD 17055B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 17055B-0667

No Longer Available AXLE ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17055B-0691

No Longer Available AXLE ASM- - BLACK JACK (0691)

$

$

Not available

$

$

43

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

45

MTD 710-0896

Hex AB-Tap Scr. 1/4 x .62"

$4.49

$

In Stock, Qty 20+

0

46

MTD 910-0429

Hex B-Tap Scr. #10 x .38"

$3.99

$

Usually ships in 3-6 days

0

47

MTD 682-0001

22" Deck Ass'y.

Note: No Longer Available

Variations

MTD 682-0001-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0001-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0001-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

48

MTD 938-0507B

Shld. Bolt .5" Dia. x .357
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

49

MTD 94832

Spring Lever Ass'y. w/Knob

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 787-01290A

Height Adj. Plate

$12.99

$

In Stock, only 2 left!

0

52

MTD 753-08093

Front Wheel Ass'y. Comp.

$45.99

$

In Stock, Qty 5

0

53

MTD 753-06761

Height Adj Ass'y Comp - R.H.

$65.99

$

In Stock, Qty 7

0

53

MTD 753-06761

Height Adj. Ass'y. Comp.- L.H.

$65.99

$

In Stock, Qty 7

0

54

MTD 938-0102

Shld. Bolt .498" Dia. x 1.45"
(Superseded to 738-0102)

$

$

Not available

55

MTD 936-0504

Wave Wash. 51" I.D. x .78"

$4.49

$

In Stock, Qty 10

0

56

MTD 751-0463

Cable Clamp

Note: No Longer Available

$

$

Not available

57

MTD 710-0651

Hex B-Tap Scr #10 x .62"

$3.99

$

Usually ships in 3-6 days

0

58

MTD 936-0300

Fl-Wash 385" I.D. x .87"
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

59

MTD 912-0296

Hex Patch L-Nut 3/8-24 Thd.

$2.99

$

In Stock, only 1 left!

0

60

MTD 731-0981C

Hub Cap

$10.99

$

Usually ships in 3-6 days

0

61

MTD 14835

Retaining Strip

Note: No Longer Available

$

$

Not available

62

MTD 731-0672A

Rear Flap

$31.99

$

Usually ships in 3-6 days

0

63

MTD 16137C-0637

L.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

64

MTD 16136C-0637

R.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

65

MTD 913-0353

#48 Chain .5" Pitch x 30 Links

$

$

Not available

67

MTD 712-0397A

Wing Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

MTD 732-0606

Height Adj. Lever

$

$

Not available

72

MTD 932-0481

Ext. Spring .5" O.D. x 3.8" Lg.

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 950-0736

Spacer .383" I.D. x .503"

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

80

MTD 738-0137

Shld. Scr..342" Dia. x 268"

Note: No Longer Available

$

$

Not available

81

MTD 948-0188B

Pawl

$11.99

$

Usually ships in 3-6 days

0

82

MTD 734-1826

Rear Wheel Ass'y. Comp.

$33.99

$

In Stock, only 2 left!

0

84

MTD 941-0484

Ball Bearing 1/2" I.D.

$7.49

$

In Stock, only 1 left!

0

90

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

91

MTD 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

92

MTD 956-0502

Splined Pulley Half

$

$

Not available

93

MTD 736-0450

Bell-Wash. 1.01" I.D.

Note: No Longer Available

$

$

Not available

94

MTD 748-0332

Crankshaft Spacer

Note: No Longer Available

$

$

Not available

96

MTD 954-0369

V-Belt

$28.99

$

In Stock, only 1 left!

0

97

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

100

MTD 735-0639

Spark Plug Boot

Note: No Longer Available

$

$

Not available

101

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

102

MTD 912-0414

Weld L-Nut 1/4-20 Thd.
(Superseded to 712-0414)

$4.49

$

In Stock, only 4 left!

0

105

MTD BS-690798

Cable Clamp

$5.49

$

In Stock, only 1 left!

0

106

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

107

MTD 946-0875

Throttle Body

$9.49

$

In Stock, only 4 left!

0

108

MTD 946-0876

Throttle Lever

$8.49

$

In Stock, only 2 left!

0

109

MTD 747-0486B

Sleeve Brg. 1/2" I.D.

Note: No Longer Available

$

$

Currently unavailable

122

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

128

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

130

MTD 948-0318

Ratchet Wheel 1.62" O.D.

$10.99

$

In Stock, only 2 left!

0

131

MTD 914-0115

Cotter Pin 1/8" Dia.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

134

MTD 941-0522

Hex Flange Bearing
(Superseded to 741-0522)

$

$

Not available

136

MTD 10622BP

Spring - Nylon
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

138

MTD 17053A

Chain Cover

Note: No Longer Available

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

147

MTD 938-0719A

Rear Shaft Ass'y. 21.94" Lg.

$

$

Not available

148

MTD 741-0324A

Hex Flange Bearing

$7.99

$

In Stock, Qty 5

0

149

MTD 936-0160

Fl-Wash..531" I.D. x .93"

$4.49

$

In Stock, Qty 9

0

153

MTD 917-0417B

Transmission Comp. (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500A-0637

Hex Bearing Cup

$8.99

$

Usually ships in 3-6 days

0
