123-148C190 - White Outdoor 21" Walk-Behind Mower (1993) 21" ERS Mulching 3-in-1 Mower Parts Diagram

21" Walk-Behind Mower

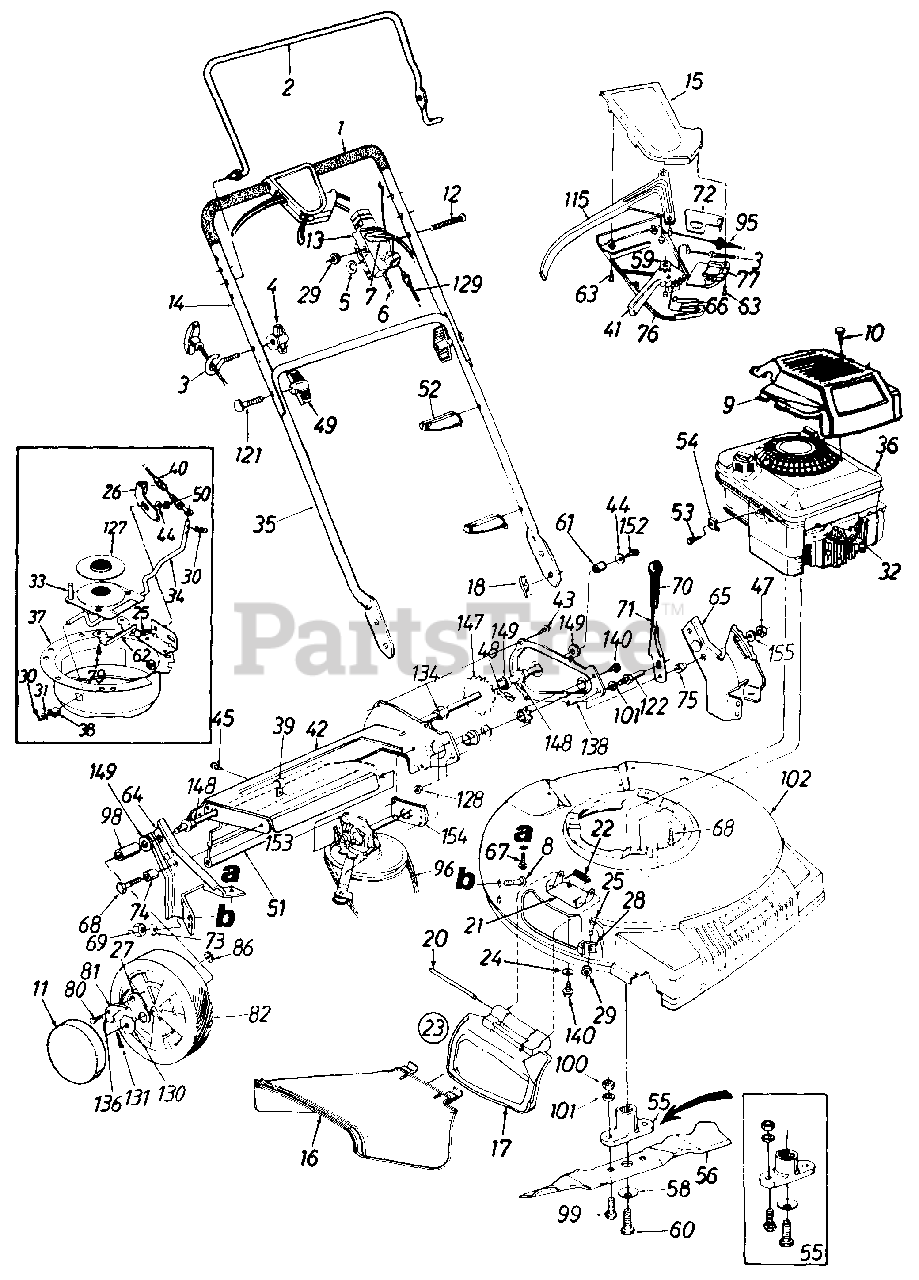

21" ERS Mulching 3-in-1 Mower Parts Diagram

  • Title

1

White Outdoor 720-0226

Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

2

White Outdoor 647-0004

Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

3

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

4

White Outdoor 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 736-0501

Curved Spring Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 746-0843

Throttle Wire - 55" Lg.
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

7

White Outdoor 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

8

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 751B281302

Engine Shroud

$

$

Not available

10

White Outdoor 710-1256

Hi-Lo Screw #10 x 1.25" Lg.

$5.99

$

In Stock, only 3 left!

0

11

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

13

White Outdoor 746-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

14

White Outdoor 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

White Outdoor 749-0539B-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

15

White Outdoor 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

16

White Outdoor 731-1407

Side Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

17

White Outdoor 731-1404

Mulch Plug
(Superseded to 682-7000)

$

$

Not available

18

White Outdoor 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 782-7006

Plug Adapter

Variations

White Outdoor 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

22

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

23

White Outdoor 682-7000

Mulch Plug Ass'y. Comp.

Note: (Incl. Ref. 17, 20, 21, 22)

$

$

Not available

24

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 17070

Adjustable Cable Bracket
(Superseded to 17070-0637)

Variations

White Outdoor 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

27

White Outdoor 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

28

White Outdoor 782-7009

Chute Stop Bracket

Variations

White Outdoor 782-7009-0637

No Longer Available BRACKET-CHUTE STOP - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

30

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

31

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68"

$5.99

$

Usually ships in 3-6 days

0

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

33

White Outdoor 682-7511

Lower Pulley Half Ass'y.

$

$

Not available

34

White Outdoor 747-0882

Shift Rod
(Superseded to 747-0882A)

$

$

Not available

35

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

36

Engine - 5 H.P.

$

$

Not available

37

White Outdoor 682-7514

Housing Ass'y.

Variations

White Outdoor 682-7514-0637

HOUSING ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

39

White Outdoor 726-0287

Clamp

$

$

Not available

40

White Outdoor 746-0706

6 Spd. Cable

$

$

Not available

41

White Outdoor 731-0924

6 Spd. Shift Lever

$

$

Not available

42

White Outdoor 682-7513

Chain - Axle Ass'y.
(Superseded to 982-7513)

Variations

White Outdoor 682-7513-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 682-7513-0483

AXLE ASSY-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 682-7513-0498

AXLE ASSY-CHAIN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 682-7513-0629

AXLE ASSY-CHAIN - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-7513-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-7513-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-7513-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 682-7513-0648

AXLE ASSY-CHAIN - TECH GRAY (0648)

$

$

Not available

White Outdoor 682-7513-0662

AXLE ASSY-CHAIN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-7513-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

White Outdoor 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5"

$4.49

$

In Stock, only 2 left!

0

47

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

White Outdoor 713-0361

#48 Chain .500" Pitch x 38 Links
(Superseded to 913-0361)

$

$

Not available

49

White Outdoor 720-0241

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

50

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

51

White Outdoor 731-1421

Rear Flap 3.75" x 17.5" Lg.

$

$

Not available

52

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

White Outdoor 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

54

White Outdoor 751-0568

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

55

White Outdoor 753-0519

Blade Adapter Kit

$

$

Not available

56

White Outdoor 742-0721

21" Mulching Blade
(Superseded to 942-0721)

$32.99

$

Usually ships in 3-6 days

0

58

White Outdoor 736-0453

Bell-Wash. .47" I.D. x 1.14" O.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

59

White Outdoor 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

60

White Outdoor 710-0561

Hex Bolt 7/16-20 x 2.5"

$10.99

$

In Stock, only 1 left!

0

61

White Outdoor 748-0190

Spacer .513" I.D.

$6.49

$

In Stock, only 1 left!

0

62

White Outdoor 782-7563

Bracket - Shift Plate
(Superseded to 782-7563-0637)

Variations

White Outdoor 782-7563-0637

BRACKET-SHIFT PLAT - POWDER BLACK (0637)

$

$

Not available

$

$

63

White Outdoor 710-0841

C-Sunk Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

64

White Outdoor 682-3006A

R.H. Handle Wheel Brkt. Ass'y.

Variations

White Outdoor 682-3006A-0483

No Longer Available BRACKET ASSY-WHL-R - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 682-3006A-0498

No Longer Available BRACKET ASSY-WHL-R - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 682-3006A-0629

No Longer Available BRACKET ASSY-WHL-R - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-3006A-0637

No Longer Available BRACKET ASSY-WHL-R - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3006A-0638

No Longer Available BRACKET ASSY-WHL-R - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-3006A-0662

No Longer Available BRACKET ASSY-WHL-R - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-3006A-0665

BRACKET ASSY-WHEEL-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

White Outdoor 682-3007A

L.H. Handle Wheel Brkt. Ass'y.

Variations

White Outdoor 682-3007A-0483

No Longer Available BRACKET ASSY-WHL-L - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 682-3007A-0498

No Longer Available BRACKET ASSY-WHL-L - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 682-3007A-0637

BRACKET ASSY-WHEEL-LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-3007A-0638

No Longer Available BRACKET ASSY-WHL-L - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

66

White Outdoor 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

67

White Outdoor 710-0603

Hex B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

White Outdoor 732-0725

Height Adj. Lever

$

$

Not available

72

White Outdoor 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

73

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0736

Spacer .383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

White Outdoor 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

76

White Outdoor 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

77

White Outdoor 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

79

White Outdoor 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 13

0

80

White Outdoor 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

White Outdoor 748-0188B

Pawl
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

82

White Outdoor 734-1510B

Wheel Ass'y. Comp.
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

White Outdoor 741-0486B

Wheel Bearing

$

$

Not available

86

White Outdoor 712-0414

Weld Top L-Nut 1/4-20 Thd.

$4.49

$

In Stock, only 4 left!

0

95

White Outdoor 746-0710A

S.P. Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

White Outdoor 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

98

White Outdoor 711-0313

Sleeve .526" I.D.
(Superseded to 911-0313)

$

$

Not available

99

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

101

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

102

782-0023

21" Deck Ass'y.

$

$

Not available

115

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

121

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

122

White Outdoor 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

127

White Outdoor 756-0503

Pulley Half - Serrated

$7.99

$

Usually ships in 3-6 days

0

128

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

White Outdoor 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

130

White Outdoor 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1"

$3.99

$

Usually ships in 3-6 days

0

134

White Outdoor 741-0522

Hex Flange Bearing

$

$

Not available

136

White Outdoor 10622B

Spring - Nylon

$5.49

$

In Stock, Qty 20+

0

138

White Outdoor 682-7506

Chain Cover Ass'y.

Variations

White Outdoor 682-7506-0483

No Longer Available COVER ASSY-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 682-7506-0498

No Longer Available COVER ASSY-CHAIN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 682-7506-0637

No Longer Available COVER ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 682-7506-0638

No Longer Available COVER ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

140

White Outdoor 710-0599

Hex TT-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

147

White Outdoor 738-0864

Rear Shaft Ass'y. 21.44" Lg.
(Superseded to 938-0864)

$

$

Not available

148

White Outdoor 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

152

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

White Outdoor 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

White Outdoor 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

White Outdoor 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0
