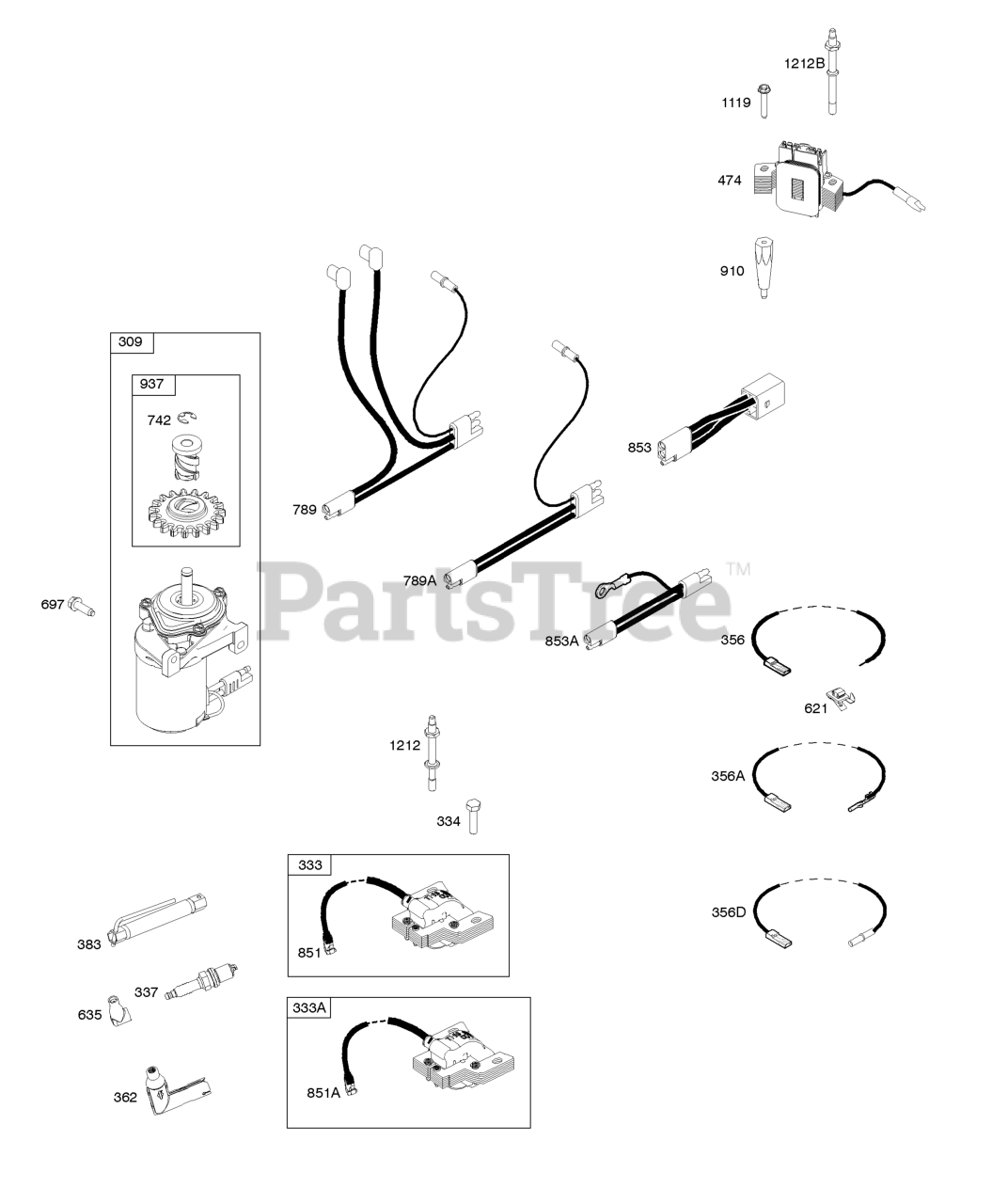

122Q32-0036-H1 - Briggs & Stratton Vertical Engine Ignition Parts Diagram

Vertical Engine

Ignition Parts Diagram

  • Title

333

Briggs & Stratton 796500

Armature-Magneto
(Superseded to 595291)

Note: (90 Degree Ignition Terminal)

$50.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 793454

Screw

Note: (Magneto Armature)

$4.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692051

Plug-Spark
(Superseded to RC12YC)

Note: (Resistor)

$3.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692720

PLUG, Spark

Note: (EMS)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

362

Briggs & Stratton 799646

Shield-Spark Plug

$18.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 12

0

697

Briggs & Stratton 691127

SCREW

Note: (Starter Motor) (Drive Cap)

$4.49

$

In Stock, Qty 13

0

742

Briggs & Stratton 93941

RETAINER, E Ring

$6.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

851A

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

853A

Briggs & Stratton 695897

Adapter-Wire

$12.99

$

Usually ships in 2-12 days

0

910

Briggs & Stratton 796498

Stud

Note: (Alternator)

$7.99

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 794100

Screw

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1212

Briggs & Stratton 796537

Stud

Note: (Blower Housing)

$7.49

$

In Stock, only 1 left!

0

1212B

Briggs & Stratton 797002

Stud

Note: (Blower Housing) (Used With Alternator Only)

$6.99

$

In Stock, only 1 left!

0
