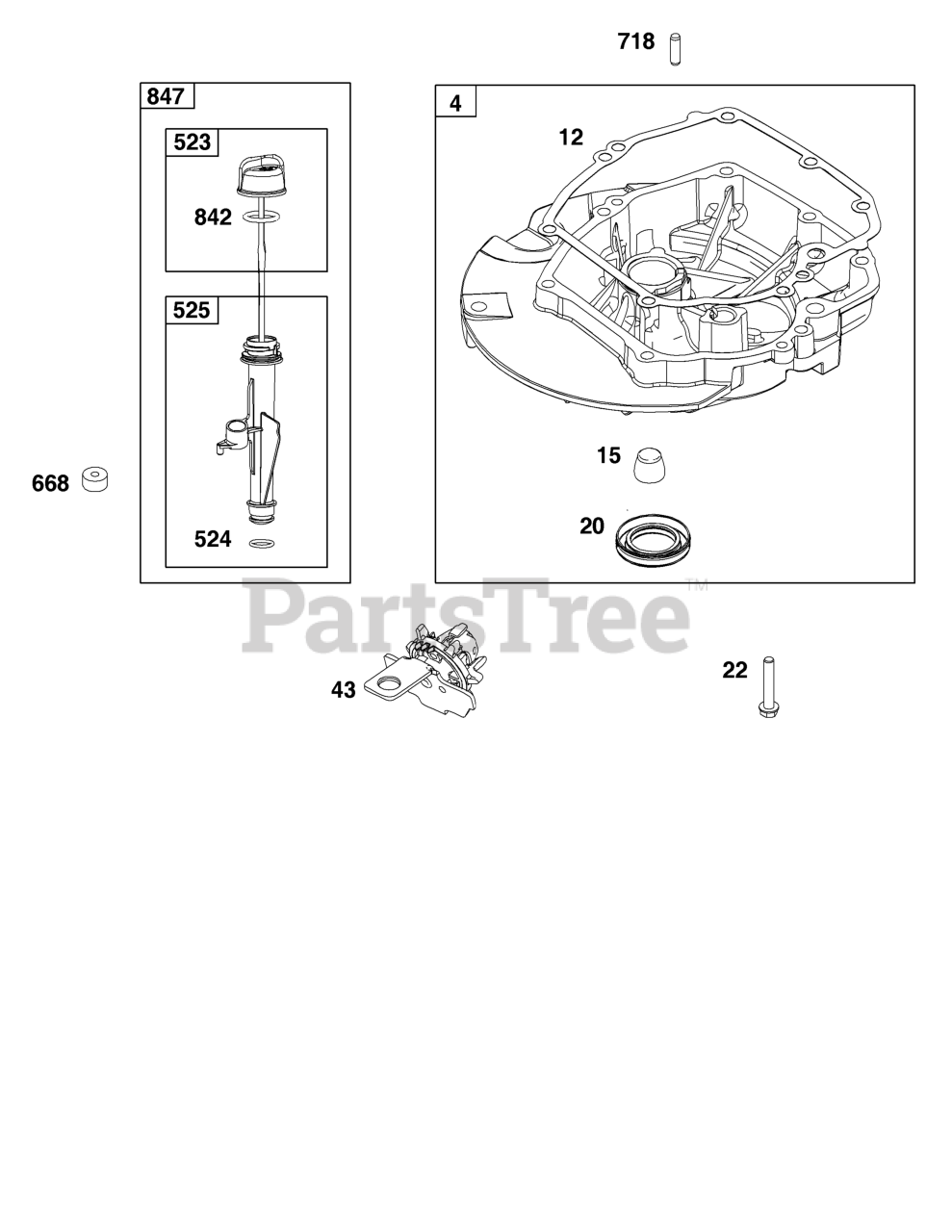

122Q02-0211-H1 - Briggs & Stratton Vertical Engine Crankcase/Sump Group Parts Diagram

Vertical Engine

Crankcase/Sump Group Parts Diagram

  • Title

4

Briggs & Stratton 493279

Sump, Engine

$120.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 399781S

Seal-Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw (Crankcase Cover Sump)

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 796650

Slinger-Governor/Oil

$25.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 796503

DIPSTICK

$14.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 692296

Seal-Dipstick Tube

Note: (Dipstick Tube)

$4.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 796502

Tube-Dipstick
(Superseded to 84005996)

$31.99

$

In Stock, only 1 left!

0

668

Briggs & Stratton 797373

Spacer

$7.99

$

In Stock, only 1 left!

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 796501

Dipstick/Tube Assembly
(Superseded to 84005996)

$31.99

$

In Stock, only 1 left!

0
