122702-3192-01 - Briggs & Stratton Vertical Engine Fuel Tank Assy, Hoses Parts Diagram

Vertical Engine

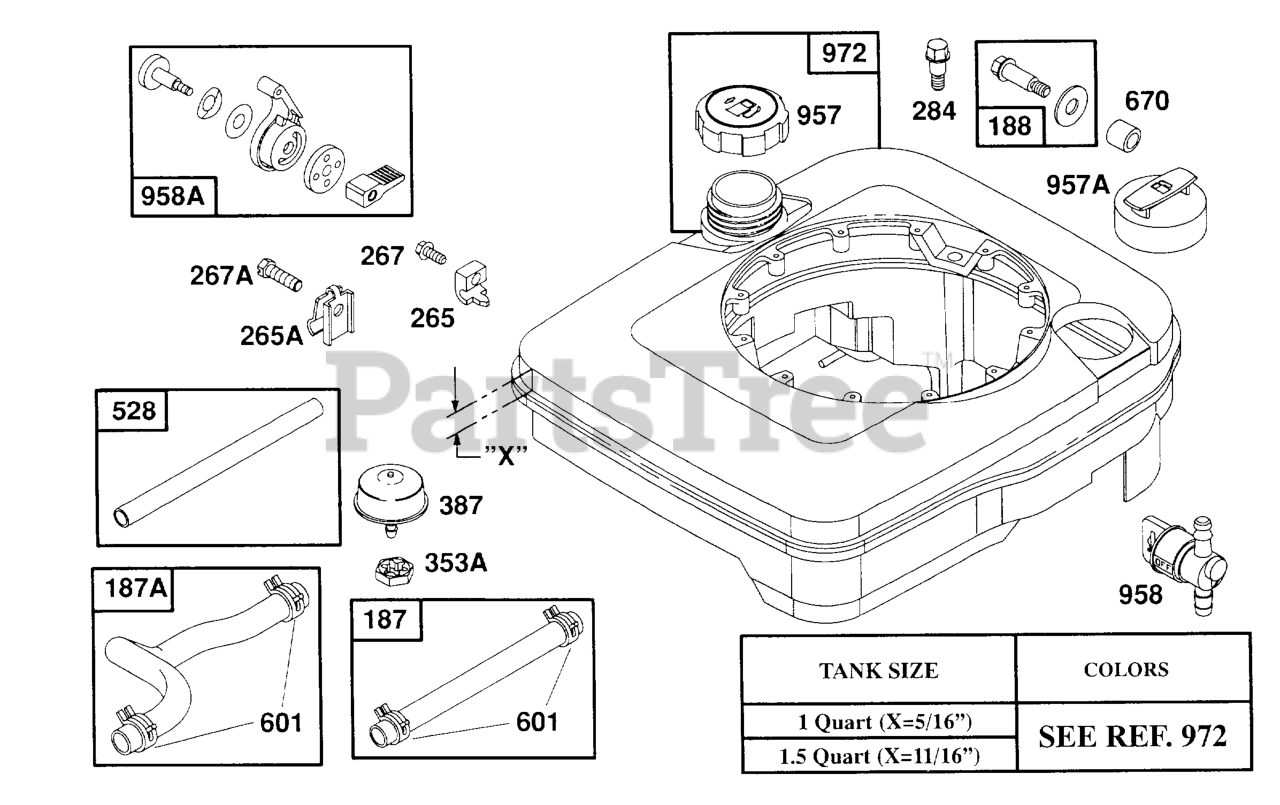

Fuel Tank Assy, Hoses Parts Diagram

  • Title

187A

Briggs & Stratton 492791

Hose, Fuel Assy
(Superseded to 791873)

$15.99

$

In Stock, Qty 7

0

187

Briggs & Stratton 492790

Hose, Fuel Assy (6-3/4")
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 398540

Screw/Washer Kit
(Superseded to 692311)

$7.49

$

In Stock, only 1 left!

0

265A

Briggs & Stratton 224057

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

265

Briggs & Stratton 213146

Clamp, Casing
(Superseded to 690798)

$5.49

$

In Stock, only 1 left!

0

267A

Briggs & Stratton 94264

Screw-Slotted
(Superseded to 691100)

$3.99

$

Usually ships in 2-12 days

0

267

Briggs & Stratton 94204

Screw-Hex. Head
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

284

Briggs & Stratton 94511

Screw, Machine Hex
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

353A

Briggs & Stratton 94581

Washer-Lock
(Superseded to 696824)

$5.49

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 394281

Primer-Fuel
(Superseded to 394281S)

$16.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 496115

Primer-Carburetor
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

528

Briggs & Stratton 399254

Line-Fuel (1/4" O.d.)

$9.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93807

Clamp, Hose (Black)
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

670

Briggs & Stratton 280512

Spacer, Tank
(Superseded to 692294)

$4.99

$

In Stock, Qty 5

0

957A

Briggs & Stratton 493017

Cap-Fuel Tank
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

957

Briggs & Stratton 397974

Cap, Tank Assy (Plastic)
(Superseded to 796577)

$16.99

$

In Stock, only 1 left!

0

958A

Briggs & Stratton 494235

Valve-Shut

$

$

Not available

958

Briggs & Stratton 494768

Vlv-Shut Off Plas (Upper)
(Superseded to 698183)

$8.49

$

In Stock, Qty 20+

0

972

Briggs & Stratton 494340

Tank, Fuel Kit (1-1/2 Quart, Black)
(Superseded to 699392)

Note: Used Before Code Date 90092400

$

$

Not available

972

Briggs & Stratton 494351

Tank, Fuel Kit (1 Quart, Black)
(Superseded to 699392)

Note: Used After Code Date 90092300

$

$

Not available

972

Briggs & Stratton 494353

Tank-Fuel (1-1/2 Quart, Yellow)
(Superseded to 699392)

$

$

Not available

972

Briggs & Stratton 494355

Tank, Fuel Kit (1-1/2 Quart, Gray)
(Superseded to 699392)

$

$

Not available

972

Briggs & Stratton 494356

Tank, Fuel Kit (1-1/2 Quart, Red)
(Superseded to 699392)

$

$

Not available

972

Briggs & Stratton 494357

Tank-Fuel (1 Quart, Red)
(Superseded to 699392)

$

$

Not available

972

Briggs & Stratton 494358

Tank, Fuel Kit (1.3 Quart, Black)
(Superseded to 497218)

$

$

Not available

972

Briggs & Stratton 494359

Tank, Fuel Kit (1 Quart, Yellow)
(Superseded to 699392)

$

$

Not available

972

Briggs & Stratton 494528

Tank, Fuel Kit (Black, 1-1/2 Quart)
(Superseded to 699392)

Note: Used After Code Date 90092300

$

$

Not available

972

Briggs & Stratton 494534

Tank-Fuel (1 Quart, Black)
(Superseded to 699392)

Note: Used Before Code Date 90092400

$

$

Not available

972

Briggs & Stratton 495065

Tank, Fuel Kit (Black, 1-1/2 Quart)
(Superseded to 699392)

$

$

Not available
