1227 MS (1696156-02) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2016) Handles & Controls Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

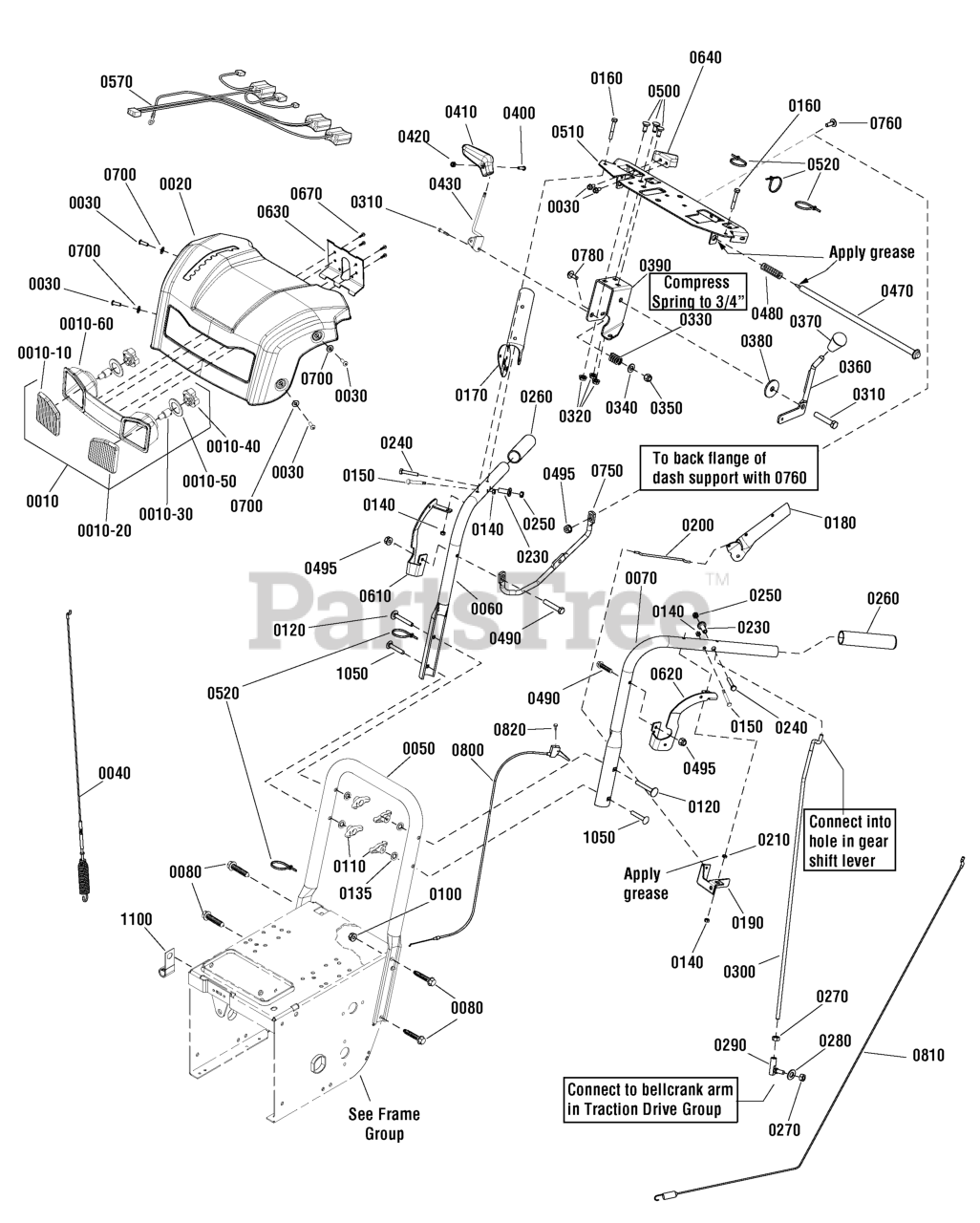

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 1739686YP

LIGHT BAR ASSEMBLY

$90.99

$

Usually ships in 2-12 days

0

0010-10

LENS, R.H.

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-20

LENS, L.H.

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0010-30

Murray 1739689YP

LAMP, Halogen, 12V 20W

$

$

Not available

0010-40

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

$10.99

$

Usually ships in 2-12 days

0

0010-50

GASKET, Single, Twin Light

Note: (Not a serviceable part, included with Ref. No. 0010-40)

$

$

Not available

0010-60

BEZEL, Light, Panel

Note: (Not a serviceable part, included with Ref. No. 0010)

$

$

Not available

0020

Murray 1739860BSYP

COVER, Panel, Remote Deflector

$122.99

$

Usually ships in 2-12 days

0

0030

Murray 1960556SM

SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 1737544YP

CABLE, Auger Drive
(Superseded to 703221)

$24.99

$

In Stock, only 4 left!

0

0050

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0060

Murray 1737531AYP

HANDLE, Upper, R.H.

$59.99

$

Usually ships in 2-12 days

0

0070

Murray 1737532AYP

HANDLE, Upper, L.H.

$53.99

$

Usually ships in 2-12 days

0

0080

Murray 1737687YP

CAPSCREW, Hex Head, 5/16-18 x 1, G5

$6.49

$

Usually ships in 2-12 days

0

0100

Murray 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0110

Murray 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0120

Murray 1750299YP

BOLT, Carriage, Locking, 5/16-18 x 2-1/4
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0135

Murray 703587

WASHER, Internal Tooth Lock, 5/16"

$4.49

$

In Stock, Qty 20+

0

0140

Murray 703232

NUT, Nylock, 1/4

$4.49

$

In Stock, Qty 20+

0

0150

Murray 703045

BOLT, Shoulder, 1/4-20 x 1-3/4

$3.49

$

Usually ships in 2-12 days

0

0160

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 1739783BMYP

LEVER, Clutch, R.H.
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Murray 1739782BMYP

LEVER, Clutch, L.H.
(Superseded to 1739782AYP)

$

$

Not available

0190

Murray 1733505BMYP

BRKT, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Murray 1736360YP

ROD, Hold Down, 5/32 Dia., 5-5/8 Lg

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 703124

SPACER, 1/4 ID x 3/8 OD x 1/8"

$3.99

$

Usually ships in 2-12 days

0

0230

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Murray 1753529YP

BOLT, Shoulder, Hex Washer Head, 1/4 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

0250

Murray 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0260

Murray 1726317SM

HAND GRIP

$8.49

$

In Stock, only 1 left!

0

0270

Murray 703331

NUT, Hex, 5/16-24

$3.99

$

In Stock, Qty 20+

0

0290

Murray 703224

BALL JOINT, Quick Release

$21.99

$

In Stock, only 2 left!

0

0300

Murray 1737331YP

ROD, Speed Select

$19.99

$

In Stock, only 1 left!

0

0310

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0320

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Murray 50786MA

SPRING, 1/2 Dia. x 3/4

$5.49

$

Usually ships in 2-12 days

0

0340

Murray 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0350

Murray 703117

NUT, Nylock, GR5, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0360

Murray 1736192YP

LEVER, Deflector Control

$13.99

$

Usually ships in 2-12 days

0

0370

Murray 1732470SM

KNOB, Deflector Control

$19.99

$

In Stock, Qty 6

0

0380

Murray 1924356SM

WASHER, 1/2
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0390

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0420

Murray 703412

NUT, Nylock, 10 x 24

$4.49

$

In Stock, only 2 left!

0

0430

Murray 703047

LEVER, Speed

$56.99

$

Usually ships in 2-12 days

0

0470

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Murray 2108360SM

SPRING, Compression, 017/32 ID x 2-1/4 Lg

$5.49

$

In Stock, only 1 left!

0

0490

Murray 1921962SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1-3/4
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0495

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0500

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0510

Murray 1739500BMYP

SUPPORT, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Murray 703586

TIE, Self Locking

$4.99

$

Usually ships in 2-12 days

0

0570

Murray 708159

HARNESS, Wiring

Note: (Used before Serial No. 2017196021)

$56.99

$

Usually ships in 2-12 days

0

0570

Murray 709958

HARNESS, Wiring

Note: (Used after Serial No. 2017196021)

$70.99

$

Usually ships in 2-12 days

0

0610

Murray 1739663BMYP

BRACKET, Mounting, Dash, R.H.

$17.99

$

Usually ships in 2-12 days

0

0620

Murray 1739664BMYP

BRACKET, Mounting, Dash, L.H.

$22.99

$

Usually ships in 2-12 days

0

0630

Murray 1739666BMYP

BRACKET, Light Mounting

$15.99

$

Usually ships in 2-12 days

0

0640

Murray 1739483AYP

POD, Chute Rotation, R.H.

$35.99

$

Usually ships in 2-12 days

0

0670

Murray 7091105YP

SCREW, Hex Washer Machine, #10-16 x 1/2

$5.49

$

In Stock, only 4 left!

0

0700

Murray 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0750

Murray 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0760

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, only 1 left!

0

0780

Murray 703466

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 10

0

0800

Murray 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0810

Murray 1737511YP

CABLE, Traction Drive

$24.99

$

In Stock, only 1 left!

0

0820

Murray 703134

BOLT, 10-24 x 1.5, GR5

$3.49

$

Usually ships in 2-12 days

0

1050

Murray 7091189YP

BOLT, Carriage, 5/16-18 x 2, G2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

1100

Murray 7012652YP

CLIP, Wire, 7/16

$3.99

$

Usually ships in 2-12 days

0
