1227 MS (1696156-02) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2016) Engine & Frame Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

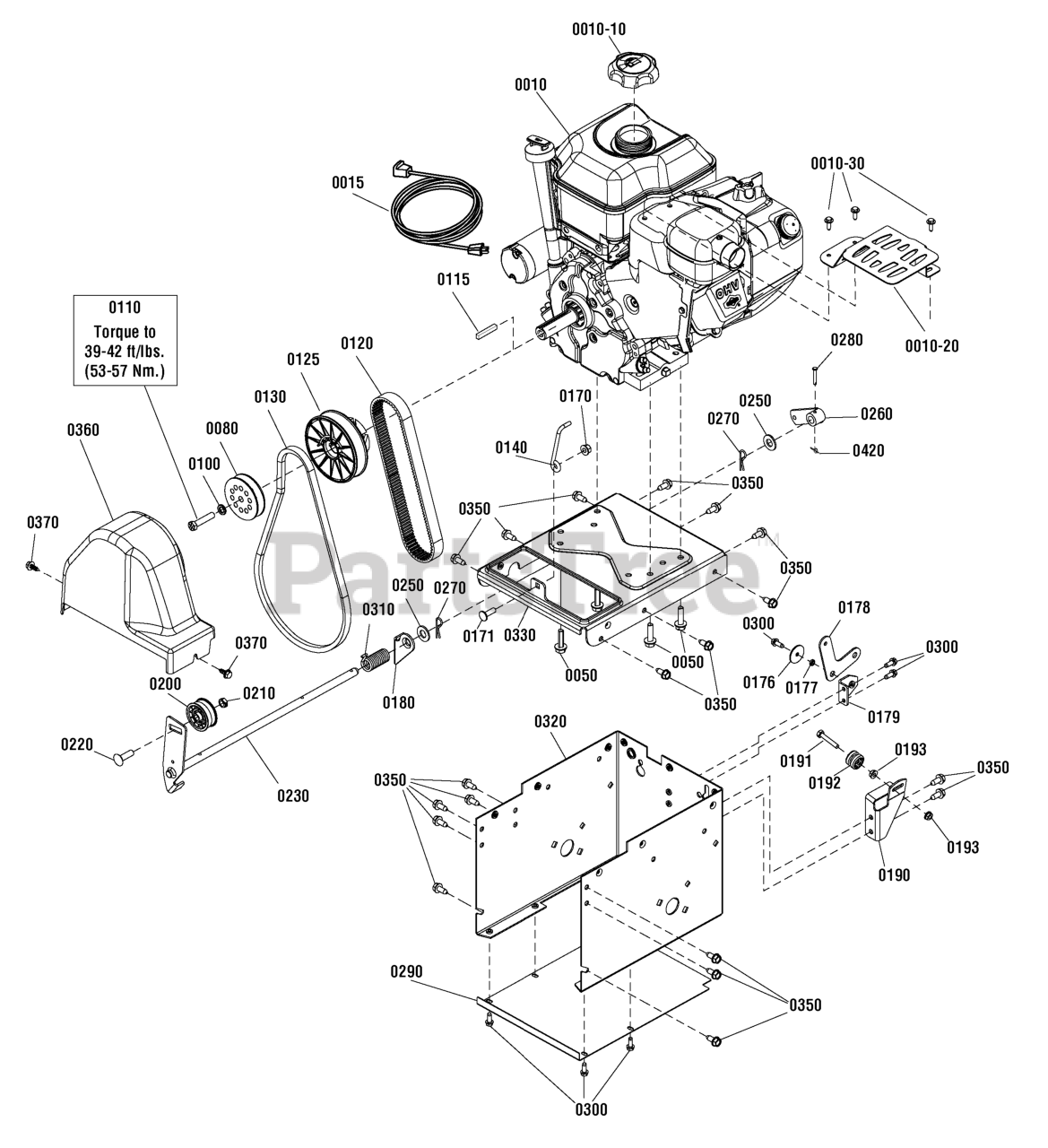

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 15C109-0034-F8

* ENGINE, 11.5TP Briggs & Stratton

Note: (Engine Model: 15C114-0153-F8)

$

$

Currently unavailable

0010-10

Murray 792647

** CAP, Fuel
(Superseded to 795027)

$10.99

$

In Stock, Qty 20+

0

0010-20

Murray 797003

** GUARD, Muffler

$45.99

$

Usually ships in 2-12 days

0

0010-30

Murray 699854

** SCREW, Hex Washer Head

$3.99

$

In Stock, Qty 7

0

0015

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

0050

Murray 75246GS

CAPSCREW, Hex Head, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 1737509YP

PULLEY ASSEMBLY

$

$

Not available

0100

Murray 703116

LOCKWASHER, Spring 5/16

$3.49

$

In Stock, Qty 20+

0

0110

Murray 1750393YP

CAPSCREW, Hex Head, 5/16-24 x 1-3/4, G8

$4.49

$

Usually ships in 2-12 days

0

0115

Murray 2157427SM

KEY, Parallel

$5.49

$

In Stock, only 1 left!

0

0120

Murray 1737220YP

V-BELT, Multi Speed

$49.99

$

In Stock, only 3 left!

0

0125

Murray 1733968YP

PULLEY ASSEMBLY

$76.99

$

Usually ships in 2-12 days

0

0130

Murray 585416MA

BELT, Auger, V4L 38.10 MF 05-10B

$22.99

$

In Stock, Qty 20+

0

0140

Murray 1737377YP

STOP, Belt

$11.99

$

In Stock, only 1 left!

0

0170

Murray 703222

NUT, Hex KEPS, Conical Washer, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0171

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0176

Murray 703136

WASHER, 1/4 x 1-1/4 x 1/16

$3.99

$

In Stock, only 1 left!

0

0177

Murray 703124

SPACER, Powdered Metal

$3.99

$

Usually ships in 2-12 days

0

0178

Murray 1737329YP

BELLCRANK

$29.99

$

Usually ships in 2-12 days

0

0179

Murray 1737328AYP

BRACKET, Lower

$11.99

$

Usually ships in 2-12 days

0

0180

Murray 1737297YP

BRACKET, Support, Auger Idler

$9.49

$

Usually ships in 2-12 days

0

0190

Murray 1737347AYP

BRACKET, Guide Wheel

$21.99

$

Usually ships in 2-12 days

0

0191

Murray 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 G5

$4.49

$

In Stock, only 4 left!

0

0192

Murray 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 7

0

0193

Murray 703233

NUT, Lock, Serrated, 1/4-20

$4.49

$

In Stock, Qty 5

0

0200

Murray 1502120MA

IDLER, Plastic, Ball Bearing

$21.99

$

In Stock, Qty 6

0

0210

Murray 703230

NUT, Hex Jam, 3/8-16

$4.99

$

In Stock, Qty 9

0

0220

Murray 703227

BOLT, Carriage, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1756662YP

IDLER, Auger

$57.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2" Flat
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

BRACKET & HUB ASSEMBLY, Spring

$20.99

$

In Stock, only 3 left!

0

0270

Murray 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0280

Murray 703313

PIN, Clevis

$4.99

$

In Stock, Qty 5

0

0290

Murray 1737221AYP

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0310

Murray 1737350YP

SPRING, Torsional

$7.99

$

In Stock, only 1 left!

0

0320

Murray 1737106BSYP

FRAME BOX

$113.99

$

Usually ships in 2-12 days

0

0330

Murray 1754138BSYP

PLATE, Engine Mount

$58.99

$

Usually ships in 2-12 days

0

0350

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1750551YP

COVER, Belt

$26.99

$

Usually ships in 2-12 days

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, SEMS, Taptite, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0420

Murray 7023590SM

COTTER PIN, 1/4" Self Locking

$3.99

$

In Stock, Qty 20+

0
