1227 MS (1696156-02) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2016) Auger Drive Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

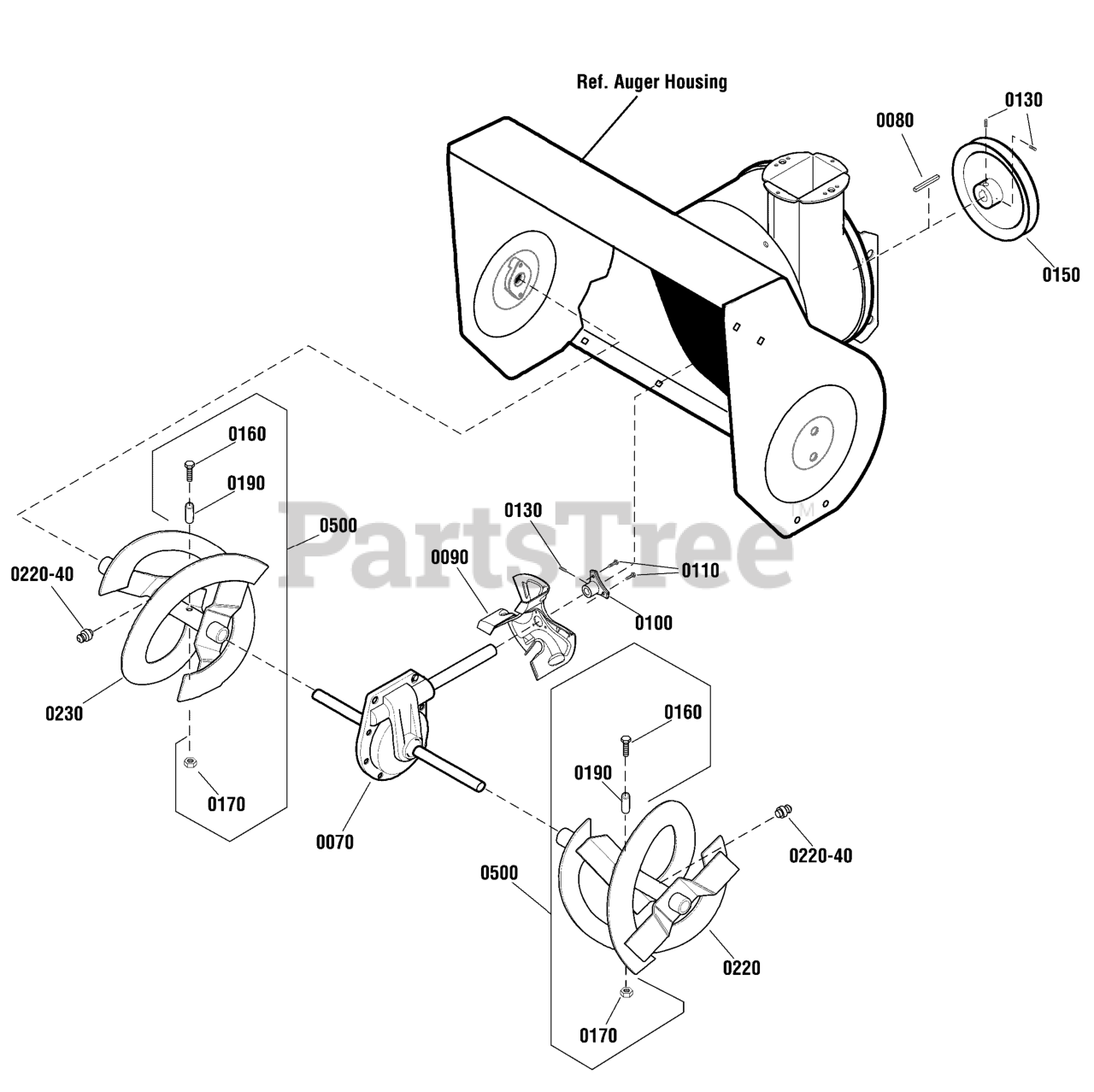

Auger Drive Group Parts Diagram

  • Title

0070

Murray 1752897YP

GEAR CASE ASSEMBLY

$683.99

$

Usually ships in 2-12 days

0

0080

Murray 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Murray 1739094BMYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 17

0

0100

Murray 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Murray 703985

SCREW, Hex Washer Head, 5/16-18 x 1/2

$4.49

$

In Stock, only 3 left!

0

0130

Murray 7090848SM

SET SCREW, Socket Head, 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Murray 1501211MA

PULLEY

$71.99

$

In Stock, only 3 left!

0

0160

Murray 9524MA

CAPSCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

0170

Murray 73826MA

NUT, Hex Center Lock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0190

Murray 3943MA

SPACER, Sleeve, 1/4 x 1/2
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

0220

Murray 1740736BNYP

AUGER, LH, 27"
(Superseded to 1740736AYP)

Note: (Includes Ref. No. 0220-40)

$

$

Not available

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0230

Murray 1740737BNYP

AUGER, RH, 27"
(Superseded to 1740737AYP)

Note: (Includes Ref. No. 0220-40)

$176.99

$

Usually ships in 2-12 days

0

0500

Murray 1501216MA

KIT, Shear Bolt

Note: (Includes Ref. Nos. 0160, 0170 & 0190)

$4.99

$

In Stock, Qty 14

0
