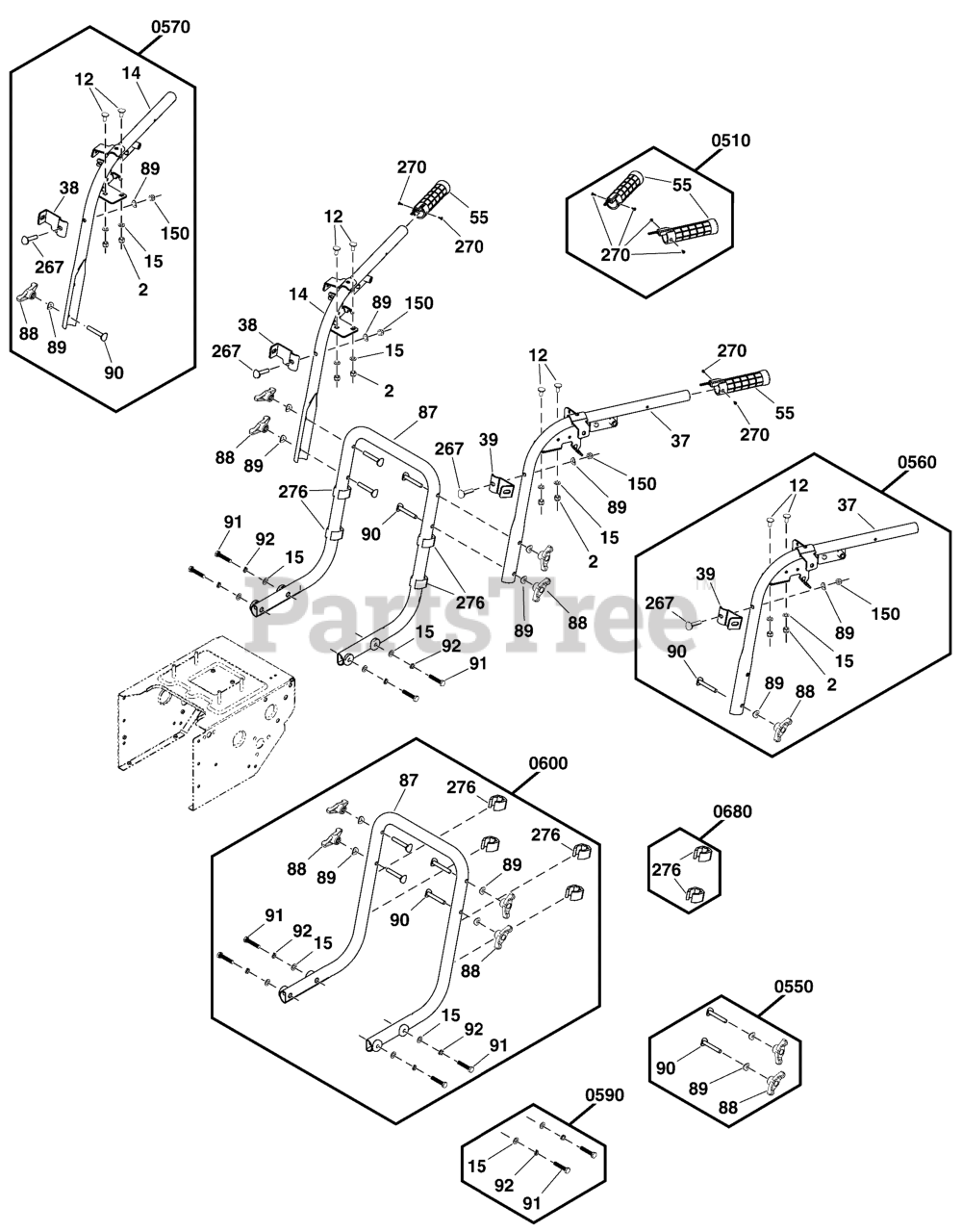

1227 MDS (1696815-00) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2018) Handles Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

Handles Group Parts Diagram

  • Title

0510

Murray 770769

KIT, Grip, Handle

Note: (Incl. Ref. Nos. 55, 270)

$43.99

$

In Stock, only 1 left!

0

55

HAND GRIP, Heated, 60W

$

$

Not available

270

SCREW #6-20X0.380 SELFDRILL PAN HD ZC/CL

$

$

Not available

0550

Murray 707513

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 88, 89, 90)

$36.99

$

In Stock, only 4 left!

0

88

KNOB, Wing, M8

$

$

Not available

89

WASHER, M8, Curved

$

$

Not available

90

BOLT, Carriage, M8 X 55

$

$

Not available

0560

Murray 770776

KIT, Upper Handle, Left

Note: (Incl. Ref. Nos. 2, 12, 15, 37, 39, 88, 89, 90, 150, 267)

$79.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

12

BOLT, Carriage, M8 X 16

$

$

Not available

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

37

HANDLE, Upper Left

$

$

Not available

39

BRACKET, Mounting, Dash, Left

$

$

Not available

88

KNOB, Wing, M8

$

$

Not available

89

WASHER, M8, Curved

$

$

Not available

90

BOLT, Carriage, M8 X 55

$

$

Not available

150

NUT, Hex Flange Head, M8

$

$

Not available

267

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

0570

Murray 770778

KIT, Upper Handle, Right

Note: (Incl. Ref. Nos. 2, 12, 14, 15, 38, 88, 89, 90, 150, 267)

$74.99

$

Usually ships in 2-12 days

0

2

NUT, Lock, M8

$

$

Not available

12

BOLT, Carriage, M8 X 16

$

$

Not available

14

HANDLE, Upper Right

$

$

Not available

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

38

BRACKET, Mounting, Dash, Right

$

$

Not available

88

KNOB, Wing, M8

$

$

Not available

89

WASHER, M8, Curved

$

$

Not available

90

BOLT, Carriage, M8 X 55

$

$

Not available

150

NUT, Hex Flange Head, M8

$

$

Not available

267

BOLT, M8x40, Carriage, Curved Head

$

$

Not available

0590

Murray 770780

KIT, Lower Handle Hardware

Note: (Incl. Ref. Nos. 15, 91, 92)

$22.99

$

Usually ships in 2-12 days

0

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

91

SCREW, Hex Head, M8 X 40

$

$

Not available

92

WASHER, Lock, M8

$

$

Not available

0600

Murray 770781

KIT, Lower Handle

Note: (Incl. Ref. Nos. 15, 87, 88, 89, 90, 91, 92, 276)

$112.99

$

Usually ships in 2-12 days

0

15

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

87

HANDLE, Lower

$

$

Not available

88

KNOB, Wing, M8

$

$

Not available

89

WASHER, M8, Curved

$

$

Not available

90

BOLT, Carriage, M8 X 55

$

$

Not available

91

SCREW, Hex Head, M8 X 40

$

$

Not available

92

WASHER, Lock, M8

$

$

Not available

276

CLAMP, Cable Guide

$

$

Not available

0680

Murray 771930

KIT, Clamp, Cable Guide

Note: (Incl. Ref. No. 276)

$4.99

$

Usually ships in 2-12 days

0

276

CLAMP, Cable Guide

$

$

Not available
