1227 MD (1696622-00) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2016) Handles & Controls Group (6967Y_CH) Parts Diagram

27" Snow Thrower, 11.5 Gross TP

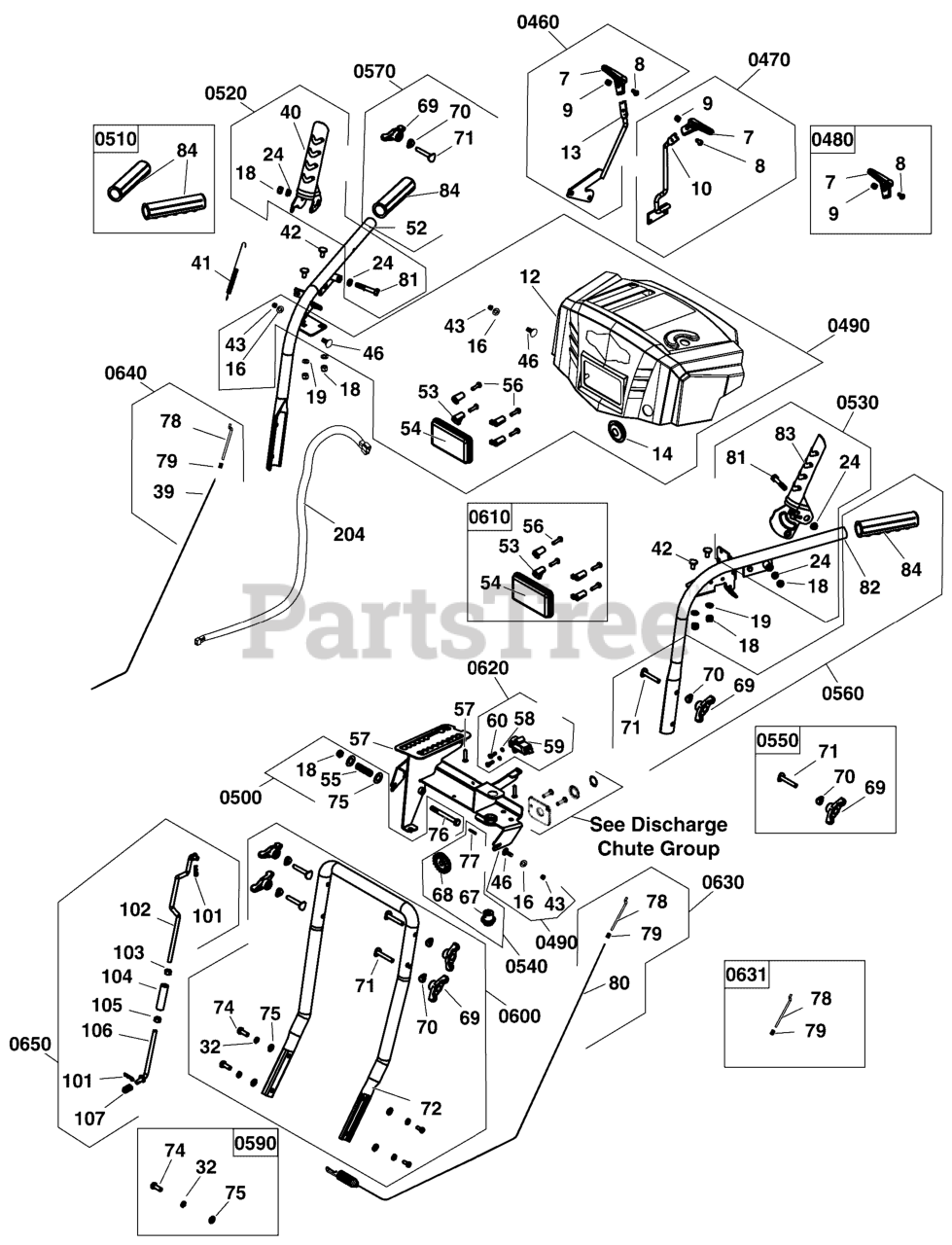

Handles & Controls Group (6967Y_CH) Parts Diagram

  • Title

0460

Murray 707506

KIT, Lever, Speed

Note: (Incl. Ref. Nos. 7, 8, 9 & 13)

$20.99

$

Usually ships in 2-12 days

0

7

*KNOB

Note: (Included with Ref. No. 0460)

$

$

Not available

8

*BOLT, Phillips Head

Note: (Included with Ref. No. 0460)

$

$

Not available

9

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0460)

$

$

Not available

13

*LEVER, Control, Drive Speed

Note: (Included with Ref. No. 0460)

$

$

Not available

0470

Murray 707505

KIT, Lever, Discharge Chute

Note: (Incl. Ref. Nos. 7, 8, 9 & 10)

$39.99

$

Usually ships in 2-12 days

0

7

*KNOB

Note: (Included with Ref. No. 0470)

$

$

Not available

8

*BOLT, Phillips Head

Note: (Included with Ref. No. 0470)

$

$

Not available

9

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0470)

$

$

Not available

10

*LEVER, Control, Discharge Chute

Note: (Included with Ref. No. 0470)

$

$

Not available

0480

Murray 707504

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 7, 8 & 9)

$7.49

$

Usually ships in 2-12 days

0

7

*KNOB

Note: (Included with Ref. No. 0480)

$

$

Not available

8

*BOLT, Phillips Head

Note: (Included with Ref. No. 0480)

$

$

Not available

9

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0480)

$

$

Not available

0490

Murray 707750

KIT, Dash

Note: (Incl. Ref. Nos. 12, 14, 16, 43, 46, 53, 54, 56, 301, 302, 312, 313 & 314)

$142.99

$

Usually ships in 2-12 days

0

12

*PANEL, Dash

Note: (Included with Ref. No. 0490)

$

$

Not available

14

*SLEEVE, Rubber

Note: (Included with Ref. No. 0490)

$

$

Not available

16

*WASHER, Flat

Note: (Included with Ref. No. 0490)

$

$

Not available

43

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0490)

$

$

Not available

46

*BOLT, Square Neck, Cup Head

Note: (Included with Ref. No. 0490)

$

$

Not available

53

*BUCKLE, Lamp

Note: (Included with Ref. No. 0490)

$

$

Not available

54

*LAMP

Note: (Included with Ref. No. 0490)

$

$

Not available

56

*BOLT, Phillips Head

Note: (Included with Ref. No. 0490)

$

$

Not available

301

Murray 1751429YP

DECAL, Auger Control

Note: (Included with Ref. No. 0490)

$9.99

$

Usually ships in 2-12 days

0

302

Murray 1751430YP

DECAL, Traction Control

Note: (Included with Ref. No. 0490)

$11.99

$

In Stock, only 1 left!

0

312

*DECAL, 1-6 Transmission Speed Control

Note: (Included with Ref. No. 0490)

$

$

Not available

313

*DECAL, Free Hand Operation

Note: (Included with Ref. No. 0490)

$

$

Not available

314

*DECAL, Chute Rotation

Note: (Included with Ref. No. 0490)

$

$

Not available

0500

Murray 707507

KIT, Hardware, Speed & Discharge

Note: (Incl. Ref. Nos. 18, 55, 75 & 76)

$9.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0500)

$

$

Not available

55

*SPRING

Note: (Included with Ref. No. 0500)

$

$

Not available

75

*WASHER, Flat

Note: (Included with Ref. No. 0500)

$

$

Not available

76

*SCREW, Hex Head

Note: (Included with Ref. No. 0500)

$

$

Not available

0510

Murray 707512

KIT, Grip, Handle

Note: (Incl. Qty. 2 Ref. No. 84)

$18.99

$

Usually ships in 2-12 days

0

84

Grip

Note: (Included with Ref. No. 0510)

$

$

Not available

0520

Murray 707509

KIT, Right Hand Lever, Traction Drive

Note: (Incl. Ref. Nos. 18, 24, 40 & 81)

$24.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0520)

$

$

Not available

24

*PAD, Small Tensioning Plate

Note: (Included with Ref. No. 0520)

$

$

Not available

40

*LEVER, Traction Drive Engagement Lever

Note: (Included with Ref. No. 0520)

$

$

Not available

81

*SCREW, Hex Head

Note: (Included with Ref. No. 0520)

$

$

Not available

0530

Murray 707508

KIT, Left Hand Lever, Auger Drive

Note: (Incl. Ref. Nos. 18, 24, 81 & 83)

$22.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0530)

$

$

Not available

24

*PAD, Small Tensioning Plate

Note: (Included with Ref. No. 0530)

$

$

Not available

81

*SCREW, Hex Head

Note: (Included with Ref. No. 0530)

$

$

Not available

83

*LEVER, Auger Engagement

Note: (Included with Ref. No. 0530)

$

$

Not available

0540

Murray 707510

KIT, Bevel Gear, Chute Rotation

Note: (Incl. Ref. Nos. 68, 68 & 77)

$20.99

$

Usually ships in 2-12 days

0

67

*GEAR, Bevel

Note: (Included with Ref. No. 0540)

$

$

Not available

68

*GEAR, Bevel, Turning

Note: (Included with Ref. No. 0540)

$

$

Not available

77

*PIN, Spring

Note: (Included with Ref. No. 0540)

$

$

Not available

0550

Murray 707513

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 69, 70 & 71)

$36.99

$

In Stock, only 4 left!

0

69

*KNOB, Handle

Note: (Included with Ref. No. 0550)

$

$

Not available

70

*WASHER

Note: (Included with Ref. No. 0550)

$

$

Not available

71

*BOLT

Note: (Included with Ref. No. 0550)

$

$

Not available

0560

Murray 707514

KIT, Upper Handle, Left

Note: (Incl. Ref. Nos. 69, 70, 71, 82 & 84)

$136.99

$

Usually ships in 2-12 days

0

69

*KNOB, Handle

Note: (Included with Ref. No. 0560)

$

$

Not available

70

*WASHER

Note: (Included with Ref. No. 0560)

$

$

Not available

71

*BOLT

Note: (Included with Ref. No. 0560)

$

$

Not available

82

*HANDLE, Upper, Left

Note: (Included with Ref. No. 0560)

$

$

Not available

84

*GRIP

Note: (Included with Ref. No. 0560)

$

$

Not available

0570

Murray 707515

KIT, Upper Handle, Right

Note: (Incl. Ref. Nos. 52, 69, 70, 71, & 84)

$143.99

$

Usually ships in 2-12 days

0

52

*HANDLE, Upper, Right

Note: (Included with Ref. No. 0570)

$

$

Not available

69

*KNOB, Handle

Note: (Included with Ref. No. 0570)

$

$

Not available

70

*WASHER

Note: (Included with Ref. No. 0570)

$

$

Not available

71

*BOLT

Note: (Included with Ref. No. 0570)

$

$

Not available

84

*GRIP

Note: (Included with Ref. No. 0570)

$

$

Not available

0590

Murray 707517

KIT, Lower Handle Hardware

Note: (Included with Ref. No. 0570)

$15.99

$

Usually ships in 2-12 days

0

32

*WASHER

Note: (Incl. Ref. Nos. 32, 74 & 75)

$

$

Not available

74

*SCREW, Hex Head

Note: (Included with Ref. No. 0590)

$

$

Not available

75

*WASHER, Flat

Note: (Included with Ref. No. 0590)

$

$

Not available

0600

Murray 707518

KIT, Lower Handle
(Superseded to 84003833)

Note: (Incl. Ref. Nos. 32, 69, 70, 71, 72, 74 & 75)

$74.99

$

Usually ships in 2-12 days

0

32

*WASHER

Note: (Included with Ref. No. 0600)

$

$

Not available

69

*KNOB, Handle

Note: (Included with Ref. No. 0600)

$

$

Not available

70

*WASHER

Note: (Included with Ref. No. 0600)

$

$

Not available

71

*BOLT

Note: (Included with Ref. No. 0600)

$

$

Not available

72

*HANDLE, Lower

Note: (Included with Ref. No. 0600)

$

$

Not available

74

*SCREW, Hex Head

Note: (Included with Ref. No. 0600)

$

$

Not available

75

*WASHER, Flat

Note: (Included with Ref. No. 0600)

$

$

Not available

0610

Murray 707519

KIT, Headlight

Note: (Incl. Ref. Nos. 32, 69, 70, 71, 72, 74 & 75)

$53.99

$

Usually ships in 2-12 days

0

53

*BUCKLE, Lamp

Note: (Included with Ref. No. 0610)

$

$

Not available

54

*LAMP

Note: (Included with Ref. No. 0610)

$

$

Not available

56

*BOLT, Phillips Head

Note: (Included with Ref. No. 0610)

$

$

Not available

41

Murray 707877

SPRING, Handle

$12.99

$

Usually ships in 2-12 days

0

0620

Murray 707521

KIT, Free Hand Control Assembly

Note: (Incl. Ref. Nos. 58, 59 & 60)

$31.99

$

Usually ships in 2-12 days

0

58

*WASHER, Spring

Note: (Included with Ref. No. 0620)

$

$

Not available

59

*SELF-LOCK, Assembly

Note: (Included with Ref. No. 0620)

$

$

Not available

60

*SCREW, Hex Head

Note: (Included with Ref. No. 0620)

$

$

Not available

0630

Murray 707760

KIT, Cable, Auger Clutch
(Superseded to 84003856)

Note: (Incl. Ref. Nos. 78, 79 & 80)

$57.99

$

In Stock, only 3 left!

0

78

*ROD, Steel

Note: (Included with Ref. No. 0630)

$

$

Not available

79

*NUT, Copper

Note: (Included with Ref. No. 0630)

$

$

Not available

80

*CABLE, Auger

Note: (Included with Ref. No. 0630)

$

$

Not available

0631

Murray 709758

KIT, Cable, Hardware

Note: (Incl. Ref. Nos. 78 & 79)

$9.99

$

Usually ships in 2-12 days

0

78

*ROD, Steel

Note: (Included with Ref. No. 0631)

$

$

Not available

79

*NUT, Copper

Note: (Included with Ref. No. 0631)

$

$

Not available

0640

Murray 707761

KIT, Cable, Traction Drive
(Superseded to 84003855)

Note: (Incl. Ref. Nos. 39, 78 & 79)

$63.99

$

In Stock, only 1 left!

0

39

*ROD, Steel

Note: (Included with Ref. No. 0640)

$

$

Not available

78

*ROD, Steel

Note: (Included with Ref. No. 0640)

$

$

Not available

79

*NUT, Copper

Note: (Included with Ref. No. 0640)

$

$

Not available

0650

Murray 707526

KIT, Transaction Drive Rod

Note: (Incl. Ref. Nos. 101, 102, 103, 104, 105, 106 & 107)

$45.99

$

Usually ships in 2-12 days

0

101

*BOLT

Note: (Included with Ref. No. 0650)

$

$

Not available

102

*ROD, Traction Drive

Note: (Included with Ref. No. 0650)

$

$

Not available

103

*SCREW, Hex Head

Note: (Included with Ref. No. 0650)

$

$

Not available

104

*ROD, Regulating Sleeve, Drive

Note: (Included with Ref. No. 0650)

$

$

Not available

105

*NUT

Note: (Included with Ref. No. 0650)

$

$

Not available

106

*ROD, Traction Drive

Note: (Included with Ref. No. 0650)

$

$

Not available

107

*SPRING, Regulating

Note: (Included with Ref. No. 0650)

$

$

Not available

57

*PANEL, Steel

$

$

Not available

18

*NUT, Hex Head Lock, Non-metal

$

$

Not available

19

*WASHER, Flat

$

$

Not available

42

*BOLT, Square Neck Cup Head

$

$

Not available

204

Murray 707637

HARNESS, Wiring

$118.99

$

Usually ships in 2-12 days

0
