1227 MD (1696619-00) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2016) Engine & Frame Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

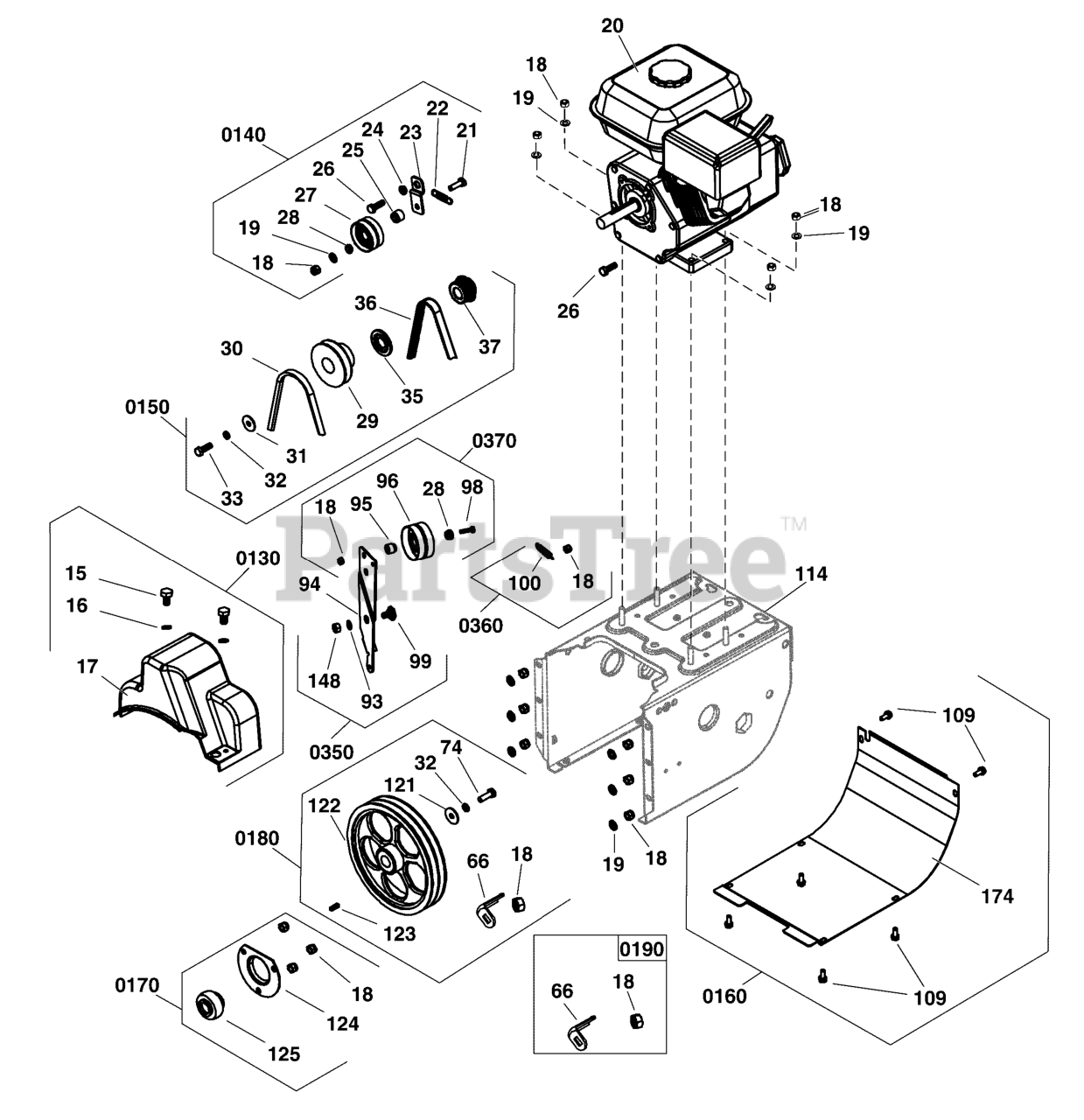

Engine & Frame Group Parts Diagram

  • Title

18

*NUT, Hex Head Lock, Non-metal

$

$

Not available

19

*WASHER, Flat

$

$

Not available

20

Murray 15C107-0037-F8

ENGINE, 11.5 Gross TP Briggs & Stratton

Note: (Engine Model: 15C107-0037-F8) (Refer to Note:**)

$

$

Currently unavailable

30

Murray 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

36

Murray 707585

BELT, Traction Drive

$22.99

$

In Stock, Qty 16

0

114

*BOX, Frame

$

$

Not available

0130

Murray 707567

KIT, Belt Cover
(Superseded to 84003838)

Note: (Incl. Ref. Nos. 15, 16 & 17)

$42.99

$

Usually ships in 2-12 days

0

15

*SCREW, Hex Head

Note: (Included with Ref. No. 0130)

$

$

Not available

16

*WASHER, Flat

Note: (Included with Ref. No. 0130)

$

$

Not available

17

*COVER, Belt

Note: (Included with Ref. No. 0130)

$

$

Not available

0140

Murray 707568

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 18, 19, 21, 22, 23, 24, 25, 26, 27 & 28)

$55.99

$

In Stock, only 1 left!

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0140)

$

$

Not available

19

*WASHER, Flat

Note: (Included with Ref. No. 0140)

$

$

Not available

21

*SCREW, Hex Head

Note: (Included with Ref. No. 0140)

$

$

Not available

22

Murray 707847

SPRING

Note: (Included with Ref. No. 0140)

$6.99

$

In Stock, only 1 left!

0

23

*PLATE, Tensioning, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

24

*PAD, Tensioning Plate, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

25

*PAD, Tensioning Wheel, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

26

*SCREW, Hex Head

Note: (Included with Ref. No. 0140)

$

$

Not available

27

*WHEEL, Tensioning Assembly, Small

Note: (Included with Ref. No. 0140)

$

$

Not available

28

*Washer

Note: (Included with Ref. No. 0140)

$

$

Not available

30

Murray 707584

BELT, Auger Drive

$41.99

$

In Stock, Qty 11

0

36

Murray 707585

BELT, Traction Drive

$22.99

$

In Stock, Qty 16

0

0150

Murray 707569

KIT, Engine Pulley

Note: (Incl. Ref. Nos. 29, 31, 32, 33, 35 & 37)

$152.99

$

In Stock, only 1 left!

0

29

*PULLEY, Impeller Drive

Note: (Included with Ref. No. 0150)

$

$

Not available

31

*WASHER, Flat

Note: (Included with Ref. No. 0150)

$

$

Not available

32

*WASHER, Spring

Note: (Included with Ref. No. 0150)

$

$

Not available

33

*SCREW, Hex Head

Note: (Included with Ref. No. 0150)

$

$

Not available

35

*RING, Retainer, Synch-pulley

Note: (Included with Ref. No. 0150)

$

$

Not available

37

*SYNCH-PULLEY

Note: (Included with Ref. No. 0150)

$

$

Not available

0160

Murray 707542

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 109 & 174)

$51.99

$

Usually ships in 2-12 days

0

109

*SCREW, Hex Head

Note: (Included with Ref. No. 0160)

$

$

Not available

174

*COVER, Motor Box, Lower

Note: (Included with Ref. No. 0160)

$

$

Not available

0170

Murray 84006464

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 18, 124 & 125)

$28.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

Note: (Included with Ref. No. 0170)

$

$

Not available

124

RETAINER, Ball Bearing

Note: (Included with Ref. No. 0170)

$

$

Not available

125

BEARING, Ball

Note: (Included with Ref. No. 0170)

$

$

Not available

0180

Murray 707546

KIT, Auger Pulley

Note: (Incl. Ref. Nos. 18, 32, 66, 74, 121, 122 & 123)

$56.99

$

In Stock, only 4 left!

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0180)

$

$

Not available

32

*WASHER, Spring

Note: (Included with Ref. No. 0180)

$

$

Not available

66

*BAFFLE, Belt

Note: (Included with Ref. No. 0180)

$

$

Not available

74

*SCREW, Hex Head

Note: (Included with Ref. No. 0180)

$

$

Not available

121

*WASHER, Flat

Note: (Included with Ref. No. 0180)

$

$

Not available

122

*PULLEY, Drive

Note: (Included with Ref. No. 0180)

$

$

Not available

123

*KEY, Flat

Note: (Included with Ref. No. 0180)

$

$

Not available

0190

Murray 707547

KIT, Belt Guide, Auger

Note: (Incl. Ref. Nos. 18 & 66)

$11.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0190)

$

$

Not available

66

*BAFFLE, Belt

Note: (Included with Ref. No. 0190)

$

$

Not available

0350

Murray 707565

KIT, Hardware, Idler Bracket

Note: (Incl. Ref. Nos. 93, 99 & 148)

$8.99

$

Usually ships in 2-12 days

0

93

*WASHER, Flat

Note: (Included with Ref. No. 0350)

$

$

Not available

99

*SCREW, Hex Head

Note: (Included with Ref. No. 0350)

$

$

Not available

148

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0350)

$

$

Not available

94

Murray 770804

IDLER, Auger

$40.99

$

Usually ships in 2-12 days

0

0360

Murray 707564

KIT, Spring, Idler Pulley

Note: (Incl. Ref. Nos.18 & 100)

$6.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0360)

$

$

Not available

100

*SPRING

Note: (Included with Ref. No. 0360)

$

$

Not available

0370

Murray 707566

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 18, 28, 95, 96 & 98)

$41.99

$

Usually ships in 2-12 days

0

18

*NUT, Hex Head Lock, Non-metal

Note: (Included with Ref. No. 0370)

$

$

Not available

28

*WASHER

Note: (Included with Ref. No. 0370)

$

$

Not available

95

*SLEEVE, Washer

Note: (Included with Ref. No. 0370)

$

$

Not available

96

*WHEEL, Large Tensioning

Note: (Included with Ref. No. 0370)

$

$

Not available

98

*SCREW, Hex Head

Note: (Included with Ref. No. 0370)

$

$

Not available

--

Murray 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 2 left!

0
