1226-14 - Electrolux/AYP Walk-Behind Mower 22" ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

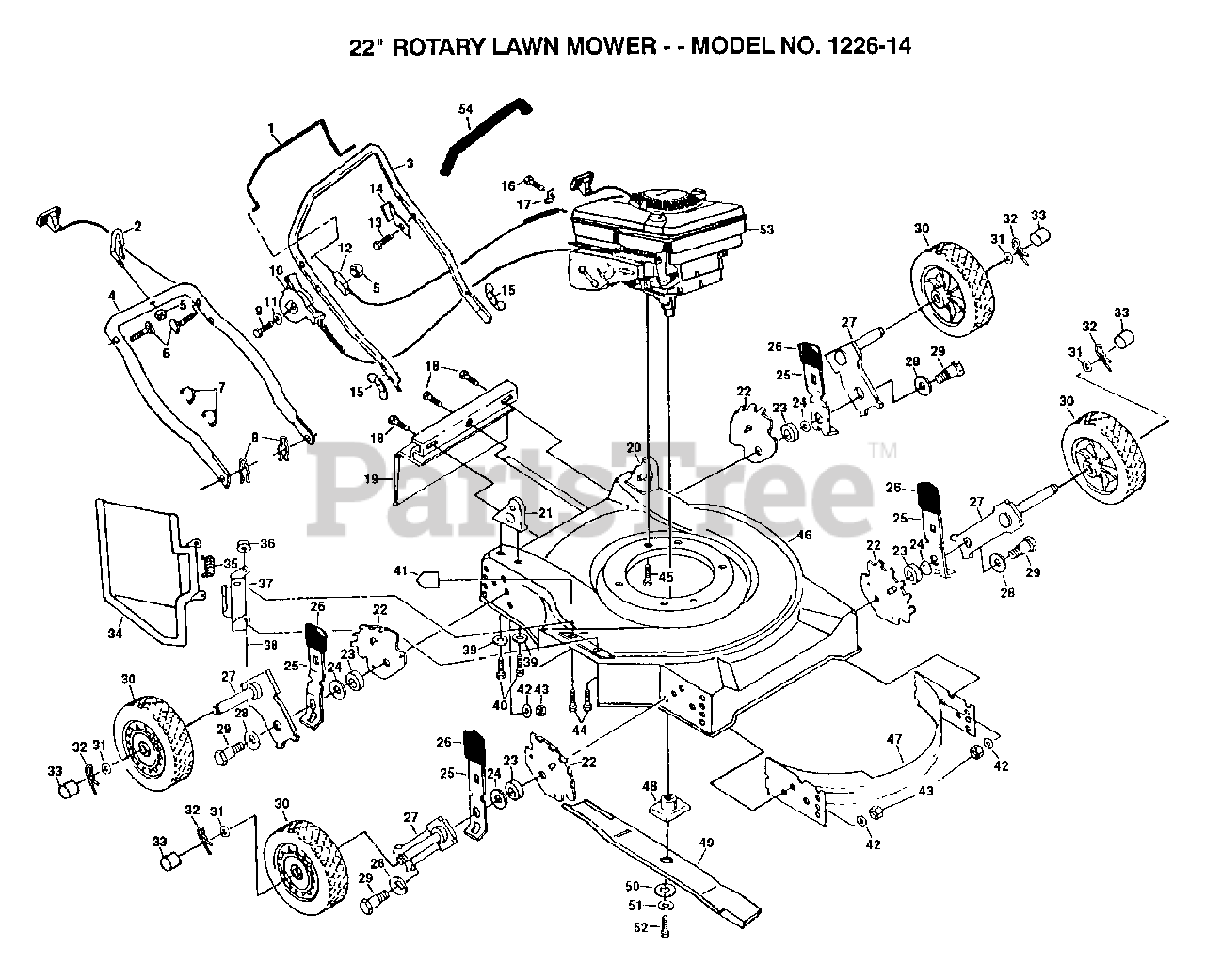

22" ROTARY LAWN MOWER Parts Diagram

  • Title
1

Electrolux/AYP 850735

SUB= 918850735

$

$

Not available

2

Electrolux/AYP 103672X

ROPER GUIDE PM
(Superseded to 583642701)

$7.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 850738X479

SUB= 145642X479
(Superseded to 166268X479)

$

$

Not available

4

Electrolux/AYP 84676X479

SUB= 151516X479

$

$

Not available

5

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

6

Electrolux/AYP 58714

SUB= 131959

$

$

Not available

7

Electrolux/AYP 85827

CABLE CLIP PM
(Superseded to 582940401)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 86261

SUB= 74250434

$

$

Not available

10

Electrolux/AYP 851464

CONTROL.THROTTLE

$

$

Not available

11

Electrolux/AYP 85723

WASHER PM
(Superseded to 532085723)

$2.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 851670

CABLE.ZONE.CONTRO
(Superseded to 532851670)

$15.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

14

Electrolux/AYP 850733X004

"BRKT,UPSTOP"
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

15

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

16

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

18

Electrolux/AYP 81276

SCREW
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

19

Electrolux/AYP 8209J

REAR SKIRT M
(Superseded to 583776801)

$

$

Not available

20

$

$

Not available

21

$

$

Not available

22

Electrolux/AYP 850904

SUB= 750085X007

$

$

Not available

23

Electrolux/AYP 84920

SUB= 146630

$2.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 88348

WASHER PM
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

25

Electrolux/AYP 850855X004

SUB= 700331X004

$

$

Not available

26

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 85021X004

AXLE ARM
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 84921

SUB= 142748

$

$

Not available

30

Electrolux/AYP 800220

WHEEL.ASM
(Superseded to 532146248)

$

$

Not available

31

Electrolux/AYP 52160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 85179

RETAINER CLIP PM
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 800090

HUB CAP-PLASTIC
(Superseded to 584458901)

$18.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 851750

SUB= 532851750

$

$

Not available

35

Electrolux/AYP 851855

"SPRING,TORSION"

$2.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 83731

PUSH ON SPEED NUT
(Superseded to 532083731)

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 851852X004

"BRKT,HSG"
(Superseded to 532147775)

$3.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 851854

"ROD,HINGE "

$1.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 59289

STEEL WASHER
(Superseded to 532059289)

$4.99

$

In Stock, only 3 left!

0

40

Electrolux/AYP 55187

SCREW
(Superseded to 532055187)

$6.49

$

In Stock, Qty 11

0

41

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 61537

SUB= 19132012

$

$

Not available

43

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 851856

SCREW
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 850998

SCREW
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

$

$

Not available

47

Electrolux/AYP 87780

SUB= 700929X479

$

$

Not available

48

Electrolux/AYP 850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 850973

"BLADE.22"""
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

50

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

51

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

53

REFER TO IMAGE

$

$

Not available

54

Electrolux/AYP 850724

SUB= 155890
(Superseded to 585161003)

$

$

Not available

$

$

Not available

Electrolux/AYP 129152

REPAIR PARTS MANUAL

$

$

Not available

Electrolux/AYP 129318

DECAL, HOUSING

$

$

Not available
