1225 (133-201F100) - Cub Cadet Lawn Tractor (SN: 207401 - 239300) Engine Parts Diagram

Lawn Tractor

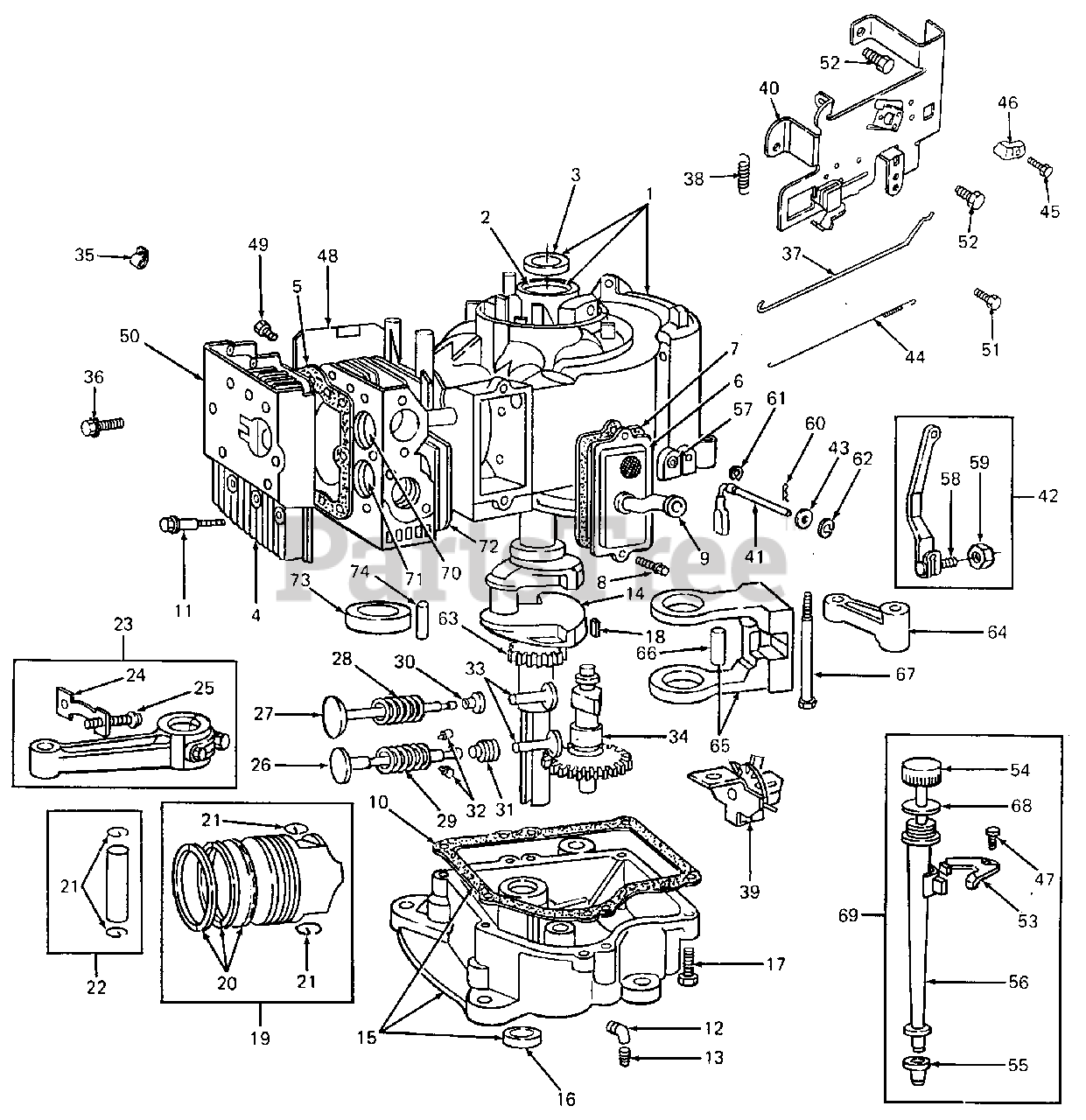

Engine Parts Diagram

  • Title

Cub Cadet BS-283707-0152

Engine Assembly - 12 HP

$

$

Currently unavailable

Cub Cadet 710-0624

Screw, Hex Cap, 5/16-24 X 1.50 Lg GR5

$5.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0772

Screw, Hex Cap, 5/16-24 X 2.0 Lg GR5

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

Cub Cadet 712-0305

Nut, Hex Patch Lock, 5/16-24
(Superseded to 912-0237)

$

$

Not available

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet BS-490763

Short Block

$

$

Not available

1

Cub Cadet BS-490450

Cylinder Assembly

Note: (Includes Ref No. 2, 3, 70, 71 & 72)

$

$

Not available

2

Cub Cadet BS-399265

Bearing, Cylinder
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086

Seal, Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-494240

Head, Cylinder

$110.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-271866

Gasket, Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, only 4 left!

0

6

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$63.99

$

In Stock, Qty 5

0

7

Cub Cadet BS-27803

Gasket, Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-93394

Screw, Sems
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet BS-280100

Tube, Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 19

0

10

Cub Cadet BS-271916

Gasket, Crankcase Cover, 1/64" Thk
(Superseded to BS-692226)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet BS-271997

Gasket, Crankcase Cover, .005" Thk
(Superseded to BS-692406)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-271996

Gasket, Crankcase Cover, .009" Thk
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

11

Cub Cadet BS-93723

Screw, Cylinder Head

$

$

Not available

12

Cub Cadet 751-3058

Tube, Oil Drain

$

$

Not available

13

Cub Cadet 751-3001

Plug, Oil Drain

$

$

Not available

14

Cub Cadet BS-490466

Crankshaft

$

$

Not available

15

Cub Cadet BS-494238

Sump, Engine

Note: (Includes Ref No. 10 & 16)

$

$

Not available

16

Cub Cadet BS-291675

Seal, Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet BS-94305

Screw, Sump Mounting Sems
(Superseded to BS-692125)

$4.99

$

In Stock, only 4 left!

0

18

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

19

Cub Cadet BS-394661

Piston Assy, Std
(Superseded to BS-499284)

Note: [Includes Ref No. 20 & 21 (Qty 2)]

$

$

Not available

Cub Cadet BS-394662

Piston Assy, .010" O.S.
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston Assy, .020" O.S.

$

$

Not available

Cub Cadet BS-394664

Piston Assy, .030" O.S.

$

$

Not available

20

Cub Cadet BS-391780

Ring Set, Piston, Std
(Superseded to BS-499996)

$53.99

$

In Stock, only 1 left!

0

Cub Cadet BS-392331

Ring Set, Piston, Chrome Std

$37.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391781

Ring Set, Piston, .010" O.S.

$

$

Not available

Cub Cadet BS-391782

Ring Set, Piston, .020" O.S.

$

$

Not available

Cub Cadet BS-391783

Ring Set, Piston, .030" O.S.

$

$

Not available

21

Cub Cadet BS-260924

Lock, Piston Pin

$

$

Not available

22

Cub Cadet BS-299691

Pin, Assembly, Piston, Std

Note: [Includes Ref No. 21 (Qty 2)]

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391286

Pin, Assembly, Piston, .005" O.S.

$

$

Currently unavailable

23

Cub Cadet BS-490348

Rod Assembly, Connecting

Note: [Includes Ref No. 24 & 25 (Qty 2)]

$50.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490469

Rod Assembly, Connecting, .020" U.S. Crankpin Bore

$

$

Not available

24

Cub Cadet BS-222299

Lock, Connecting Rod Screw

$

$

Not available

25

Cub Cadet BS-92909

Screw, Connecting Rod

$

$

Not available

26

Cub Cadet BS-262246

Valve, Exhaust

$

$

Not available

27

Cub Cadet BS-262247

Valve, Intake
(Superseded to BS-262247S)

$

$

Not available

28

Cub Cadet BS-65906

Spring, Intake Valve

$

$

Not available

29

Cub Cadet BS-26828

Spring, Exhaust Valve

$

$

Not available

30

Cub Cadet BS-221596

Retainer, Intake Valve
(Superseded to BS-690656)

$

$

Not available

31

Cub Cadet BS-292260

Rotocoil, Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

32

Cub Cadet BS-93630

Retainer, Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

33

Cub Cadet BS-262248

Tappet, Valve

$

$

Not available

34

Cub Cadet BS-212897

Gear, Cam

$

$

Not available

35

Cub Cadet BS-281159

Clip, Lead Wire

$

$

Not available

36

Cub Cadet BS-94608

Screw, Hex Hd Washer
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 13

0

37

Cub Cadet BS-262767

Link, Governor
(Superseded to BS-691841)

$9.49

$

In Stock, Qty 17

0

38

Cub Cadet BS-260871

Spring, Governor
(Superseded to BS-792602)

$3.49

$

In Stock, only 2 left!

0

39

Cub Cadet BS-490815

Oil Slinger, Governor Gear & Bracket Assembly
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 20+

0

40

Cub Cadet BS-493896

Plate, Governor Control
(Superseded to BS-694042)

$38.99

$

In Stock, Qty 20+

0

41

Cub Cadet BS-231058

Crank, Governor
(Superseded to BS-692012)

$13.99

$

In Stock, only 2 left!

0

42

Cub Cadet BS-493935

Lever Assy, Governor

Note: (Includes Ref No. 58 & 59)

$

$

Not available

43

Cub Cadet BS-222450

Washer, Governor Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

44

Cub Cadet BS-262785

Spring, Governor Link
(Superseded to BS-691842)

$11.99

$

In Stock, Qty 20+

0

45

Cub Cadet BS-93496

Screw, Sems
(Superseded to BS-690804)

$

$

Not available

46

Cub Cadet BS-221535

Clamp, Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

47

Cub Cadet BS-94419

Screw, Clamp Mounting
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 12

0

48

Cub Cadet BS-224545

Shield, Cylinder

$

$

Not available

49

Cub Cadet BS-93949

Screw, Cylinder Shield Mtg Sems

$

$

Not available

50

Cub Cadet BS-491490

Cover, Cylinder Head

$

$

Not available

51

Cub Cadet BS-93705

Screw, Hex Hd
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0

52

Cub Cadet BS-94620

Screw, Hex Hd
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 12

0

53

Cub Cadet BS-223721

Clamp, Oil Filler Tube
(Superseded to BS-224390)

$

$

Not available

54

Cub Cadet BS-490327

Cap & Dipstick, Oil Filler
(Superseded to BS-692014)

$25.99

$

In Stock, Qty 6

0

55

Cub Cadet BS-68838

Seal, Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

56

Cub Cadet BS-280741

Tube, Oil Filler

$

$

Not available

57

Cub Cadet BS-231597

Bushing, Governor Crank

$

$

Not available

58

Cub Cadet BS-92613

Bolt, Governor Lever

$

$

Not available

59

Cub Cadet BS-231082

Nut, Hex, #10-24

$

$

Not available

60

Cub Cadet BS-93306

Cotter, Hair Pin

$

$

Not available

61

Cub Cadet BS-93307

Retainer, E-Ring

$5.99

$

In Stock, only 3 left!

0

62

Cub Cadet BS-491323

Seal, Oil
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 8

0

63

Cub Cadet BS-262135

Gear, Timing
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-94196

Key, Timing Gear

$

$

Not available

64

Cub Cadet BS-212359

Link, Counterweight

$

$

Not available

65

Cub Cadet BS-399891

Counterweight Assembly
(Superseded to BS-692423)

Note: (Includes Ref No. 66)

$222.99

$

Usually ships in 2-12 days

0

66

Cub Cadet BS-298909

Pin, Counterweight

$8.99

$

In Stock, only 3 left!

0

67

Cub Cadet BS-93875

Screw, Counterweight

$

$

Currently unavailable

68

Cub Cadet BS-270920

Seal, Oil Filler Cap
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-490474

Fill Group, Oil

Note: (Includes Ref No. 47, 53, 54, 55, 56 & 68)

$

$

Not available

70

Cub Cadet BS-261463

Seat, Intake Valve Std
(Superseded to BS-691802)

$17.99

$

Usually ships in 2-12 days

0

71

Cub Cadet BS-213316

Seat, Exhaust Valve Std
(Superseded to BS-691844)

$18.99

$

In Stock, only 1 left!

0

72

Cub Cadet BS-261961

Guide, Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-231218

Guide, Intake Valve (Brass)

$14.99

$

In Stock, Qty 7

0

73

Cub Cadet BS-262243

Eccentric

$36.99

$

Usually ships in 2-12 days

0

74

Cub Cadet BS-94160

Pin, Eccentric

$

$

Not available

Cub Cadet BS-494241

Overhaul Gasket Kit

$39.99

$

In Stock, Qty 8

0

Cub Cadet BS-271866

Gasket, Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, only 4 left!

0

Cub Cadet BS-27803

Gasket, Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet BS-271916

Gasket, Crankcase Cover
(Superseded to BS-692226)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet BS-270872

Gasket, Carburetor Mounting
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 6

0

Cub Cadet BS-391086

Seal, Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

Cub Cadet BS-291675

Seal, Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet BS-491323

Seal, Governor
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 8

0
