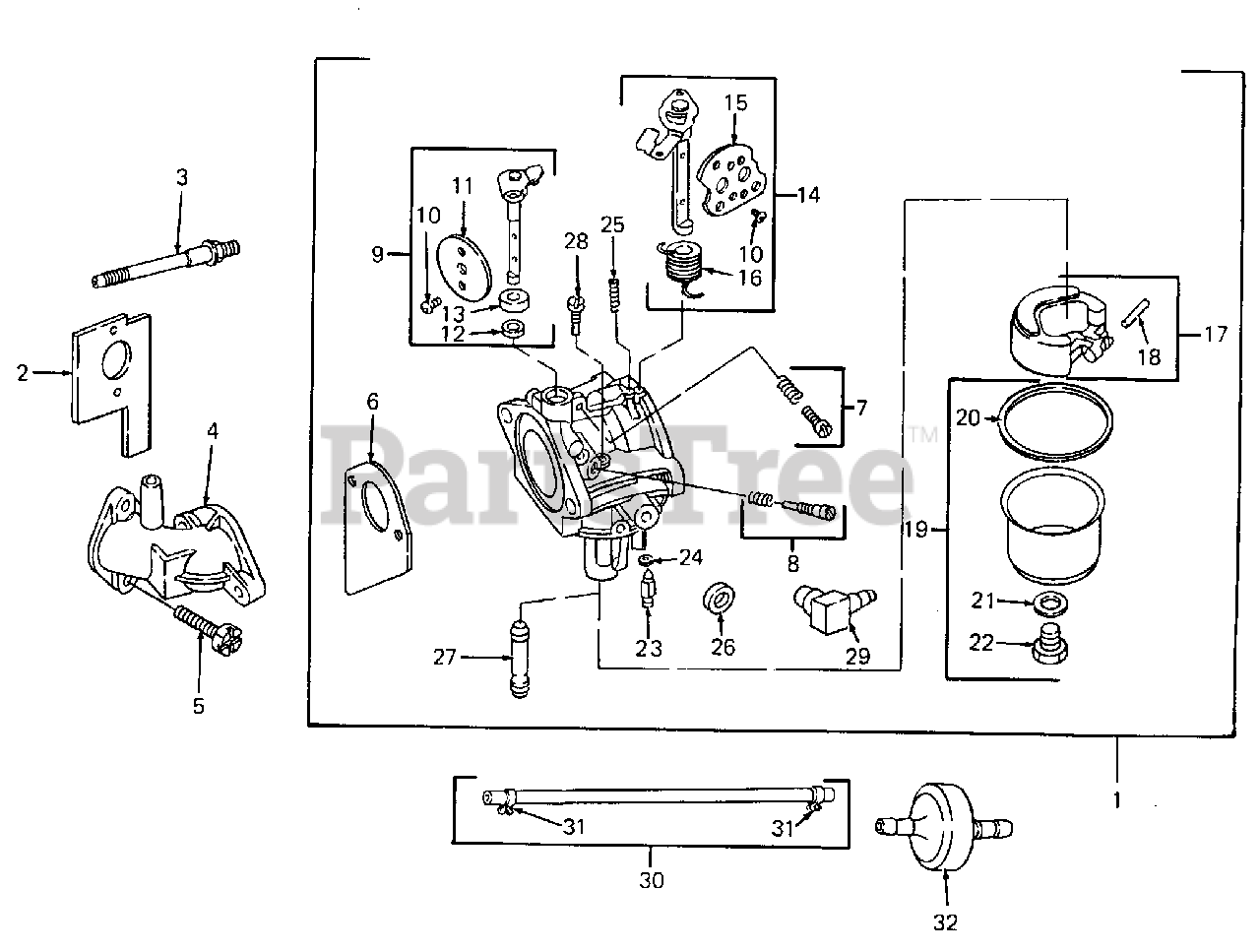

1225 (133-201F100) - Cub Cadet Lawn Tractor (SN: 207401 - 239300) Carburetor Parts Diagram

Lawn Tractor

Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-494502

Carburetor Assembly
(Superseded to BS-799728)

$

$

Not available

2

Cub Cadet BS-270872

Gasket, Carburetor Mounting
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 5

0

3

Cub Cadet BS-94637

Stud, Carburetor Mounting
(Superseded to BS-690227)

$7.99

$

In Stock, Qty 6

0

4

Cub Cadet BS-213819

Carburetor, Elbow
(Superseded to BS-691711)

$

$

Not available

5

Cub Cadet BS-94616

Screw, Elbow Mounting
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-272465

Gasket, Carburetor
(Superseded to BS-692284)

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-494382

Screw, Idle Speed
(Superseded to BS-398185)

$7.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-494383

Valve, Needle

$13.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-494379

Shaft & Lever, Throttle
(Superseded to BS-790901)

$38.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94098

Screw
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet BS-224539

Valve, Throttle
(Superseded to BS-691750)

$9.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-281167

Washer, Throttle Shaft

$

$

Currently unavailable

13

Cub Cadet BS-281166

Seal, Throttle Shaft
(Superseded to BS-691326)

$5.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-494448

Shaft & Lever, Choke
(Superseded to BS-790905)

$45.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-224558

Valve, Choke

$

$

Not available

16

Cub Cadet BS-494453

Seal, Choke Shaft

$

$

Not available

17

Cub Cadet BS-494381

Float, Carburetor

$13.99

$

In Stock, only 4 left!

0

18

Cub Cadet BS-231789

Pin, Float Hinge
(Superseded to BS-690525)

$4.99

$

In Stock, only 1 left!

0

19

Cub Cadet BS-494378

Bowl Assy, Carburetor
(Superseded to BS-495933)

$

$

Not available

20

Cub Cadet BS-281165

Gasket, Float Bowl
(Superseded to BS-281165S)

$4.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-281164

Washer, Float Bowl Screw
(Superseded to BS-692255)

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-94642

Screw, Fuel Bowl
(Superseded to BS-691657)

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet BS-231790

Valve Assy, Inlet Needle
(Superseded to BS-494788)

$9.99

$

In Stock, only 2 left!

0

24

Cub Cadet BS-281169

Seat, Inlet Valve
(Superseded to BS-691901)

$8.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-262820

Spring, Choke Stop
(Superseded to BS-590931)

$5.49

$

In Stock, Qty 11

0

26

Plug, Welch

Note: (Order BS-494384)

$

$

Not available

27

Cub Cadet BS-494537

Nozzle/Jet, Carburetor

$

$

Currently unavailable

28

Cub Cadet BS-231794

Pilot, Jet

$

$

Not available

29

Cub Cadet BS-494451

Tube, Fuel Inlet
(Superseded to BS-692317)

$6.49

$

In Stock, Qty 20+

0

30

Cub Cadet BS-393815

Line, Fuel, 11" Lg

$11.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-93053

Clamp, Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet BS-298090

Filter, Fuel
(Superseded to BS-298090S)

$

$

Not available

Cub Cadet BS-494384

Kit, Carburetor Overhaul
(Superseded to BS-497535)

Note: (Includes Ref No. 6, 10, 12, 13, 16, 18, 20, 21, 23, 24, 26, 27 & 28)

$67.99

$

In Stock, only 2 left!

0

Cub Cadet BS-494385

Kit, Carburetor Gasket
(Superseded to BS-697241)

Note: (Includes Ref No. 6, 20 & 21)

$43.99

$

In Stock, only 1 left!

0
