1225 (132-201F100) - Cub Cadet Lawn Tractor (SN: 207401 - 239300) Starter Motor Parts Diagram

Lawn Tractor

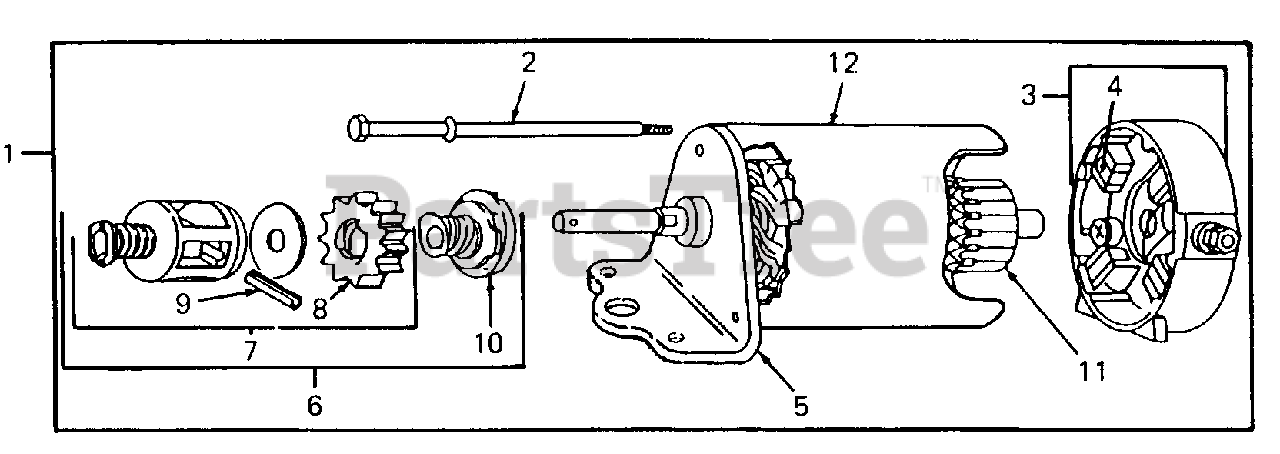

Starter Motor Parts Diagram

  • Title
1

Cub Cadet BS-394805

Motor, Starting
(Superseded to BS-497595)

$110.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-94003

Bolt, Hex

$

$

Currently unavailable

3

Cub Cadet BS-395537

End Cap Assy

Note: (Includes Ref No. 4)

$54.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-395538

Brush Assy

$24.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-394856

Cap Assy, Drive End

$

$

Not available

6

Cub Cadet BS-490421

Drive Assy
(Superseded to BS-696540)

Note: (Includes Ref No. 7 & 10)

$29.99

$

In Stock, Qty 18

0

7

Cub Cadet BS-490467

Retainer & Pin
(Superseded to BS-696540)

Note: (Includes Ref No. 8 & 9)

$29.99

$

In Stock, Qty 18

0

8

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-94288

Pin, Roll
(Superseded to BS-691641)

$4.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-398003

Clutch Assy
(Superseded to BS-692024)

$21.99

$

In Stock, only 2 left!

0

11

Cub Cadet BS-390837

Armature Assy

$159.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-393825

Housing Assy

$

$

Not available
