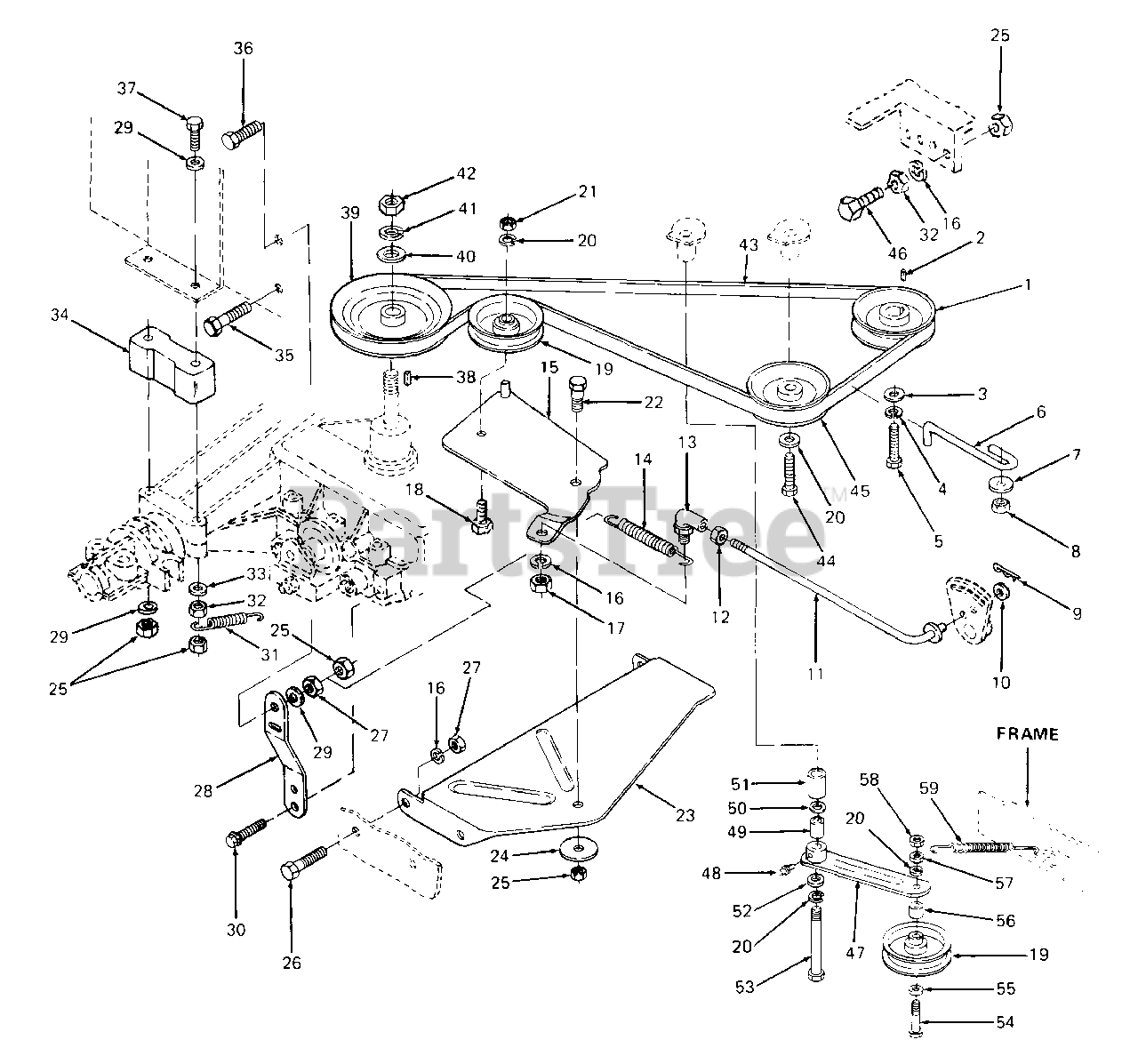

1225 (132-201F100) - Cub Cadet Lawn Tractor (SN: 207401 - 239300) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Cub Cadet 756-3033

Pulley, Engine, A Sec X 3.5 OD

$

$

Not available

2

Cub Cadet 714-0114

Key, Square, 1/4 X 2.0 Lg
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-0322

Washer, Flat, .450 X 1.25 X .172 Thk HDN

$9.49

$

In Stock, Qty 8

0

4

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-0757

Screw, Hex Cap, 7/16-20 X 1.5 Lg

$9.99

$

In Stock, only 1 left!

0

6

Cub Cadet 747-3136

Guard, Belt

$

$

Not available

7

Cub Cadet 736-0231

Washer, Flat, .344 X 1.125 X .12 Thk

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0305

Nut, Hex Patch Lock, 5/16-24
(Superseded to 912-0237)

$

$

Not available

9

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0275

Washer, Flat, .34 X .68 X .062 Thk

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 747-3125

Rod, Idler Clutch

$

$

Not available

12

Cub Cadet 712-3025

Nut, Hex Jam, 5/16-24 GR5

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 723-3011

Ball Joint, 5/16-24
(Superseded to 923-3011)

$37.99

$

In Stock, only 4 left!

0

14

Cub Cadet 732-3055

Spring, Extension
(Superseded to 932-3055)

$16.99

$

In Stock, only 2 left!

0

15

Cub Cadet 703-1563

Bracket, Idler

Variations

Cub Cadet 703-1563-0637

IDLER BRACKET ASSEMBLY(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$6.99

$

In Stock, Qty 19

0

19

Cub Cadet 756-3054

Idler, Flat, 2.75 Dia
(Superseded to 956-3054)

$52.99

$

In Stock, only 2 left!

0

20

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0140

Screw, Shoulder, .437 Dia X .180

$5.99

$

In Stock, Qty 15

0

23

Cub Cadet 703-1534

Bracket, Clutch Mounting

$

$

Not available

24

Cub Cadet 736-0123

Washer, Flat, .344 X 1.12 X .063 Thk
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0759

Screw, Hex Cap, 5/16-18 X .62 Lg

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 703-1106

Brace, Transaxle

$

$

Not available

29

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0601

Screw, Hex Washer Hd Tapp, 5/16-18 X .75 Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 732-3046

Spring, Extension

$

$

Not available

32

Cub Cadet 712-3007

Nut, Hex Jam, 5/16-18 GR5

$6.99

$

In Stock, only 2 left!

0

33

Cub Cadet 736-0159

Washer, Flat, .344 X .875 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 748-3023

Spacer, Axle

$

$

Not available

35

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-3185

Screw, Hex Cap, 5/16-18 X 3.75 Lg GR5

$

$

Not available

38

Cub Cadet 714-0129

Key, #4 Hi-Pro, 3/32 X 5/8 Dia HDN
(Superseded to 914-0129)

$

$

Not available

39

Cub Cadet 756-0341B

Pulley, 8.0 Dia

$

$

Not available

40

Cub Cadet 736-3013

Washer, Flat, .531 X 1.00 X .027 Thk

$4.49

$

In Stock, only 3 left!

0

41

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 6

0

42

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

43

Cub Cadet 754-3035

V-Belt, 4L X 90" Lg
(Superseded to 954-3035)

$59.99

$

In Stock, only 1 left!

0

44

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 756-0236

V-Idler

$65.99

$

In Stock, only 1 left!

0

46

Cub Cadet 738-0528

Screw, Shoulder

$

$

Not available

47

Cub Cadet 703-1396

Arm, Idler
(Superseded to 703-1396-0637)

Variations

Cub Cadet 703-1396-0637

ARM-IDLER - POWDER BLACK (0637)

$173.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 750-0252

Spacer, .377 X .600 X .830 Lg
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

50

Cub Cadet 736-0267

Washer, Flat, .385 X .87 X .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 748-3015

Spacer, .38 X 1.0 X 3.06 Lg

$

$

Not available

52

Cub Cadet 736-0247

Washer, Flat, .406 X 1.25 X .157 Thk HDN

$9.49

$

In Stock, Qty 12

0

53

Cub Cadet 710-3153

Screw, Hex Cap, 3/8-16 X 4.75 Lg GR5

$

$

Not available

54

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 X 2.75 Lg GR5

$4.99

$

In Stock, Qty 7

0

55

Cub Cadet 736-0140

Washer, Flat, .385 X .620 X .063 Thk

$7.49

$

In Stock, Qty 6

0

56

Cub Cadet 750-0497

Spacer, .375 X .625 X .44 Lg

$10.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

58

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

59

Cub Cadet 732-3044A

Spring, Extension
(Superseded to 932-3044A)

$

$

Not available
