1225 (132-201F100) - Cub Cadet Lawn Tractor (SN: 207401 - 239300) Air Cleaner Parts Diagram

Lawn Tractor

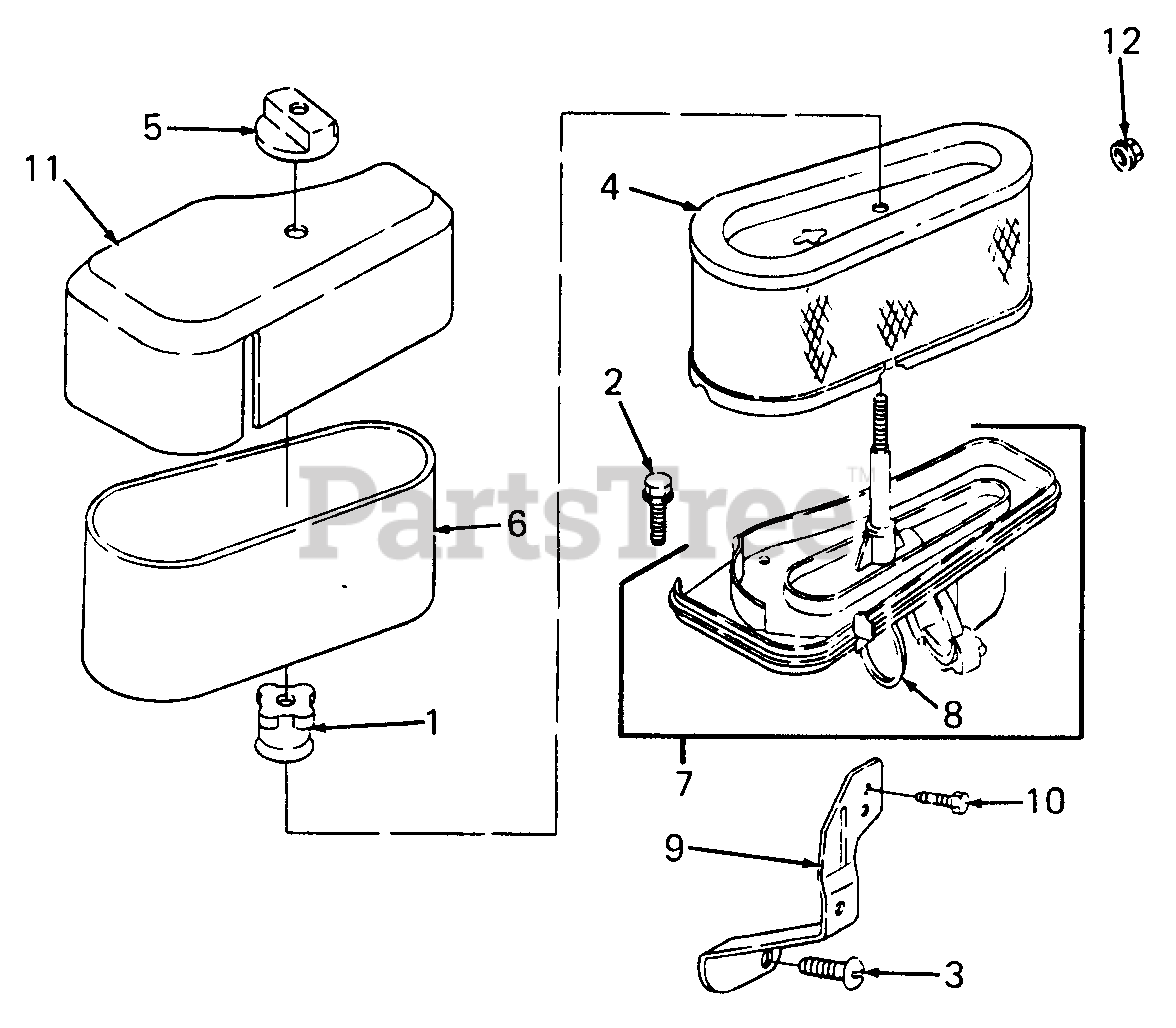

Air Cleaner Parts Diagram

  • Title
1

Cub Cadet BS-281051

Nut, Air Cleaner Mounting
(Superseded to BS-691668)

$5.49

$

In Stock, only 2 left!

0

2

Cub Cadet BS-94513

Screw, Air Cleaner Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 12

0

3

Cub Cadet BS-94326

Screw, Air Cleaner

$

$

Currently unavailable

4

Cub Cadet BS-493909

Cartridge, Air Cleaner
(Superseded to BS-496894S)

$19.99

$

In Stock, only 3 left!

0

5

Cub Cadet BS-493903

Knob, Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 2 left!

0

6

Cub Cadet BS-272403

Element, Air Cleaner
(Superseded to BS-272403S)

$3.99

$

In Stock, Qty 18

0

7

Cub Cadet BS-494237

Body, Air Cleaner

$

$

Not available

8

Cub Cadet BS-281106

O-Ring, Air Cleaner
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet BS-224546

Brace, Air Cleaner

$

$

Not available

10

Cub Cadet BS-94620

Screw, Hex Hd
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 12

0

11

Cub Cadet BS-281104

Cover, Air Cleaner

$

$

Not available

12

Cub Cadet BS-94108

Locknut, Air Cleaner Mounting
(Superseded to BS-690958)

$3.49

$

In Stock, only 3 left!

0
