12225 - Troy-Bilt Tuffy Rear-Tine Tiller Bolo Tines And Wheels Parts Diagram

Tuffy Rear-Tine Tiller

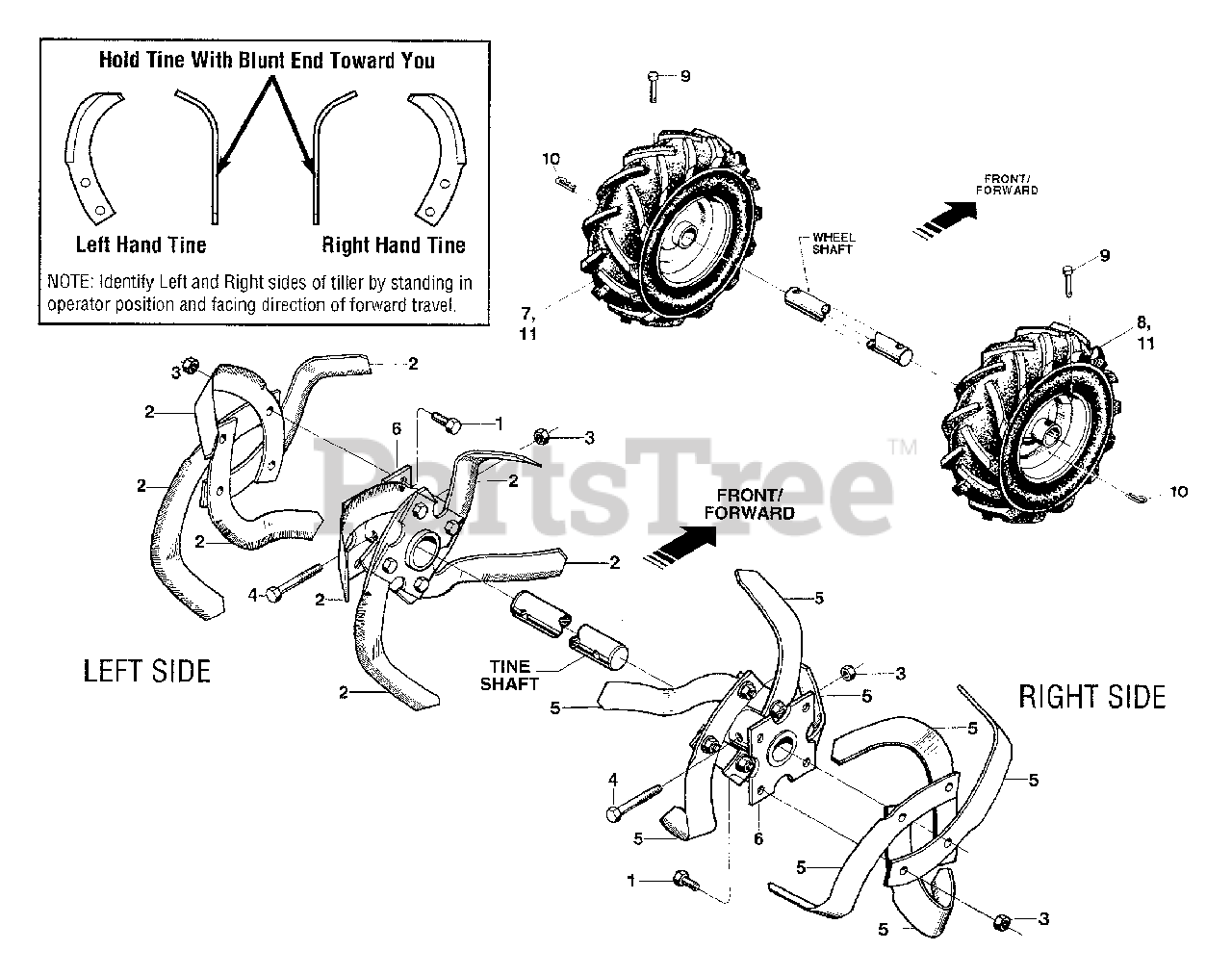

Bolo Tines And Wheels Parts Diagram

  • Title

1

Troy-Bilt 9711

Hex Screw, 3/8-16 x 1, Grade 5

$

$

Currently unavailable

2

Troy-Bilt 50049-01

Bolo Tine - Right Hand.
(Superseded to 742-04226-0637)

Note: Single tine used on left side of tiller. (Incl. two each Refs. 1 & 3)

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1733398

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

4

MTD 9555

Hex Screw, 3/8-16 x 1-3/4

$

$

Not available

Troy-Bilt 1901

Bolo Tine Replacement Set
(Superseded to GW-1901)

Note: (Incl. eight right hand tines, eight left hand tines and required hardware

$

$

Not available

5

Troy-Bilt 50049-02

Bolo Tine - Left Hand.
(Superseded to 742-04227-0637)

Note: Single tine used on right side of tiller. (Incl. two each Refs. 1 & 3)

$16.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1916747001

Tine Holder
(Superseded to 686-05008-0637)

Note: For Model 12209 - S/N 122091100101 - 122091299999 & Model 12210 - S/N 122101100101 - 122101299999

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1915075001

Tine Holder
(Superseded to 686-04066-0638)

Note: For Model 12225

$58.99

$

Usually ships in 3-6 days

0

7

MTD 20918-01

Wheel & Tire Assy-Left Side
(Superseded to 634-04201-0911)

Note: For Model 12209 - S/N 122091100101 - 122091199999

$

$

Not available

MTD 2706-01

Wheel & Tire Assy-Left Side

Note: For Model 12210 - S/N 122101100101 - 122101199999

$

$

Not available

Troy-Bilt 55095-01

Wheel & Tire Assy-Left Side
(Superseded to 734-04162)

Note: For Model 12225

$

$

Not available

8

MTD 20918-02

Wheel & Tire Assy-Right Side
(Superseded to 634-04202-0911)

Note: For Model 12209 - S/N 122091100101 - 122091199999

$

$

Not available

MTD 2706-02

Wheel & Tire Assy-Right Side

Note: For Model 12210 - S/N 122101100101 - 122101199999

$

$

Not available

Troy-Bilt 55095-02

Wheel & Tire Assy-Right Side
(Superseded to 734-04161)

Note: For Model 12225

$

$

Not available

9

Troy-Bilt 9380

Clevis Pin, .312" x 1-3/4"
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt 9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

MTD 1917486

Wheel & Tire Assy
(Superseded to 634-04202-0911)

Note: For Model 12209 - S/N 122091200101 - 122091299999

$

$

Not available

MTD 1917487

Wheel & Tire Assy
(Superseded to 634-04202-0911)

Note: For Model 12210 - S/N 122101200101 - 122101299999

$

$

Not available
