1222 EE (1696741-00) - Briggs & Stratton 22" Snow Thrower, 11.5 Gross TP (2017) Auger Drive Group Parts Diagram

22" Snow Thrower, 11.5 Gross TP

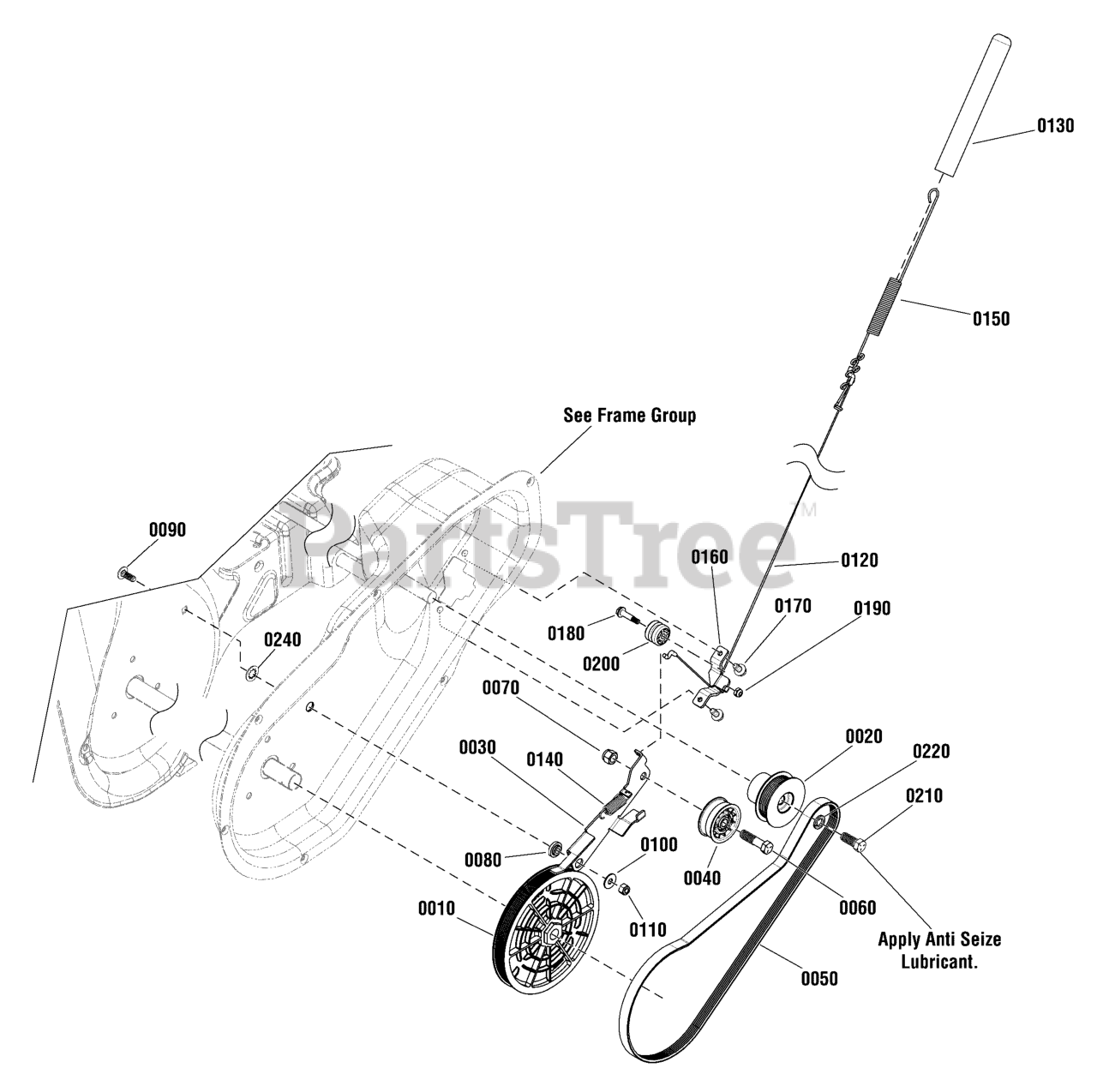

Auger Drive Group Parts Diagram

  • Title
0010

Murray 707379

PULLEY, Driven
(Superseded to 771019)

$31.99

$

In Stock, Qty 8

0

0020

Murray 1739179YP

PULLEY, Driver

$20.99

$

Usually ships in 2-12 days

0

0030

Murray 1739526YP

ARM, Idler, Drive
(Superseded to 771018)

$13.99

$

Usually ships in 2-12 days

0

0040

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, Qty 6

0

0050

Murray 1739338YP

BELT, Drive

$22.99

$

In Stock, Qty 20+

0

0060

Murray 703406

CAPSCREW, Hex Head, 3/8-16 x 1-1/2

$4.99

$

In Stock, only 1 left!

0

0070

Murray 703117

NUT, Nylock, 3/8

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739709YP

SPACER, Idler Arm

$

$

Not available

0090

Murray 1931318SM

BOLT, Carriage, Short Neck, 1/4-20 x 7/8 G5

$4.49

$

In Stock, only 2 left!

0

0100

Murray 7091253YP

WASHER, Flat, .281 X 3/4 x 1/2

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 703232

NUT, Nylock, 1/4

$4.49

$

In Stock, Qty 20+

0

0120

Murray 1502113MA

CABLE, Handle

$22.99

$

In Stock, Qty 20+

0

0130

Murray 1739935YP

BOOT, Clutch Spring

$8.99

$

Usually ships in 2-12 days

0

0140

Murray 1750226YP

SPRING, Idler

$4.99

$

In Stock, only 1 left!

0

0150

Murray 1750315YP

SPRING, Extension

$10.99

$

In Stock, only 1 left!

0

0160

Murray 1750329YP

BRACKET, Cable Guide

$9.99

$

In Stock, only 1 left!

0

0170

Murray 704130

SCREW, Hex Washer Head, 1/4-20 x 1/2

$3.99

$

In Stock, only 1 left!

0

0180

Murray 1750594YP

CAPSCREW, Hex Shoulder, 1/4 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0190

Murray 703937

NUT, Locking, #10

$3.49

$

Usually ships in 2-12 days

0

0200

Murray 579860MA

SPOOL CABLE, Auger Control

$5.99

$

In Stock, Qty 7

0

0210

Murray 001X20MA

CAPSCREW, Hex Head, 3/8-24 x 1

$4.49

$

In Stock, only 4 left!

0

0220

Murray 706162

WASHER, Locking, 3/8

$3.49

$

Usually ships in 2-12 days

0

0240

Murray 703826

RETAINER, Pushnut, 1/4

$3.49

$

In Stock, Qty 20+

0
