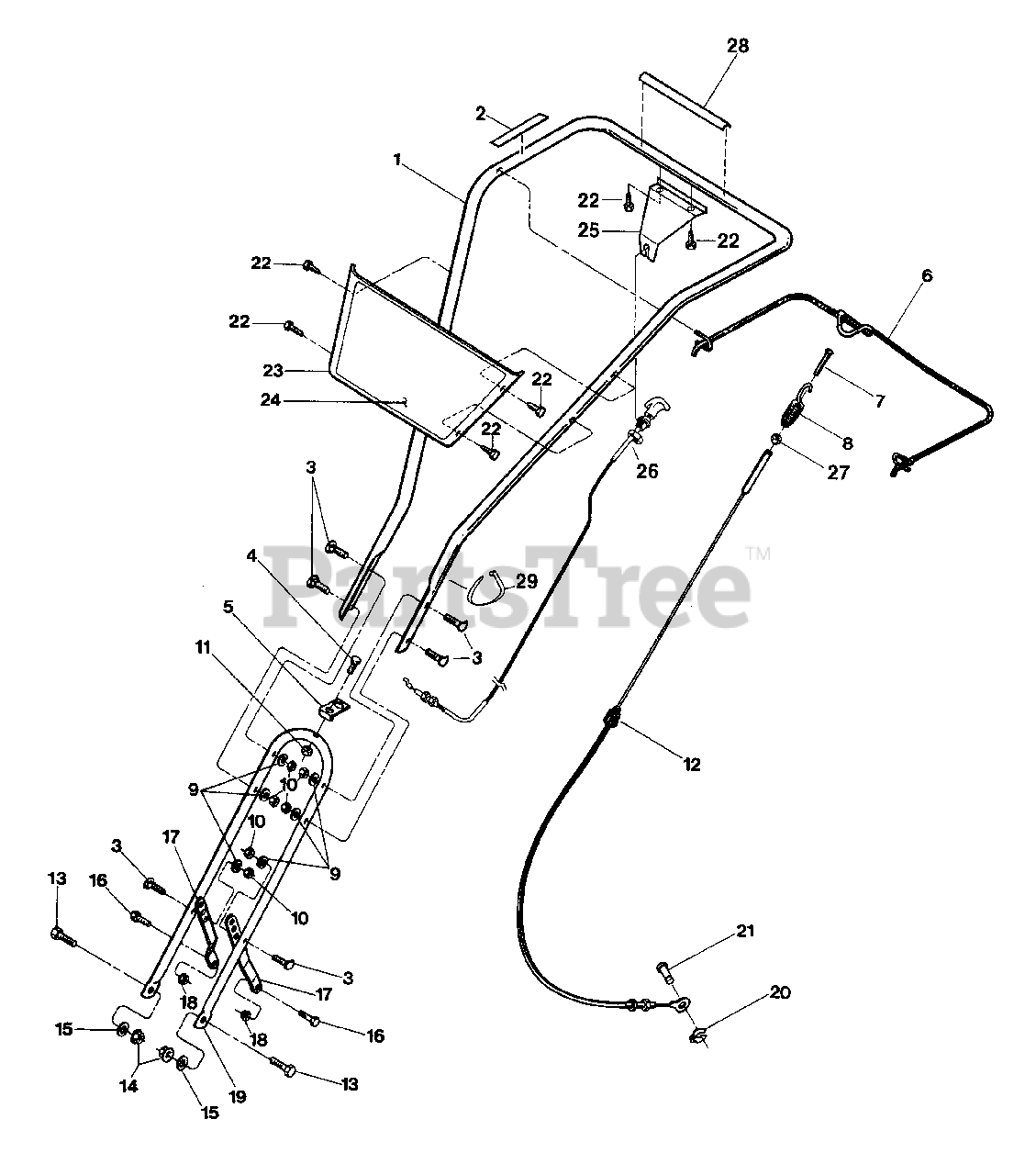

12217 (21A-511-081) - Troy-Bilt Tuffy Rear-Tine Tiller Handlebars, Clutch Cables And Handlebar Mounting Hardware Parts Diagram

Tuffy Rear-Tine Tiller

Handlebars, Clutch Cables And Handlebar Mounting Hardware Parts Diagram

  • Title

1

Troy-Bilt 55104

Upper Handlebar
(Superseded to 749-04084-0638)

Note: (Incl. Ref. 2); For Model 12217

$110.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1916996

Upper Handlebar
(Superseded to 749-04084-0638)

Note: (Incl. Refs. 2 & 28); For Model 12209

$110.99

$

Usually ships in 3-6 days

0

2

MTD 1916928

Decal, Forward Clutch Bail

$

$

Not available

3

Troy-Bilt 1100799

Hex Hd. Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 1100806

Hex Screw, 1/4-20 x 1-1/4
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 55044

Bracket, Forward Clutch Cable
(Superseded to GW-55044)

$19.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1916106001

Bail, Forward Clutch

$51.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 9855

Screw, #10-24 x 2
(Superseded to 710-04163)

$

$

Not available

8

Troy-Bilt 1916712

Spring, Forward Clutch
(Superseded to 732-04185)

$7.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186230

Hex Locknut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 9811

Hex Locknut, 1/4-20

$

$

Currently unavailable

12

Troy-Bilt 55048

Cable Assy, Forward Clutch
(Superseded to GW-55048P)

$34.99

$

In Stock, Qty 19

0

13

Troy-Bilt 1100068

Hex Screw, 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt 9837

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

15

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

16

Troy-Bilt 1100044

Hex Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1916107001

Handlebar Support

$

$

Not available

18

Troy-Bilt 1110107

Hex Locknut, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

19

Troy-Bilt 1916108001

Lower Handlebar
(Superseded to 753-06459A)

$89.99

$

In Stock, Qty 10

0

20

MTD 9386

Klip Ring ,

$

$

Not available

21

MTD 9856

Clevis Pin

$

$

Not available

22

Troy-Bilt 9552

Hex Screw, 1/4-20 x 1/2, Self-Tap
(Superseded to 710-0599)

Note: For Model 12209

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 9552

Hex Screw, 1/4-20 x 1/2, Self-Tap
(Superseded to 710-0599)

Note: For Model 12217

$4.49

$

In Stock, Qty 20+

0

23

MTD 1901273010

Panel

$

$

Not available

24

MTD 1916818

Decal, Model Name/Logo

Note: For Model 12209

$

$

Not available

MTD 55097

Decal, Model Name/Logo

Note: For Model 12217

$

$

Not available

25

Troy-Bilt 1916674001

Bracket, Reverse Clutch Cable
(Superseded to 786-04040-0637)

Note: For Model 12209

$

$

Not available

26

Troy-Bilt 1916719

Cable Assy, Reverse Clutch
(Superseded to 946-04058)

Note: For Model 12209

$60.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 1186227

Hex Nut, #10-24
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 1916929

Decal, Reverse Drive Control
(Superseded to 777I22077)

Note: For Model 12209

$

$

Not available

29

Troy-Bilt 1735531

Cable Tie
(Superseded to 725-0157)

Note: For Model 12209

$3.99

$

In Stock, only 2 left!

0
