12217 (21A-511-081) - Troy-Bilt Tuffy Rear-Tine Tiller Engine, Engine Brackets And Belt Drive Systems Parts Diagram

Tuffy Rear-Tine Tiller

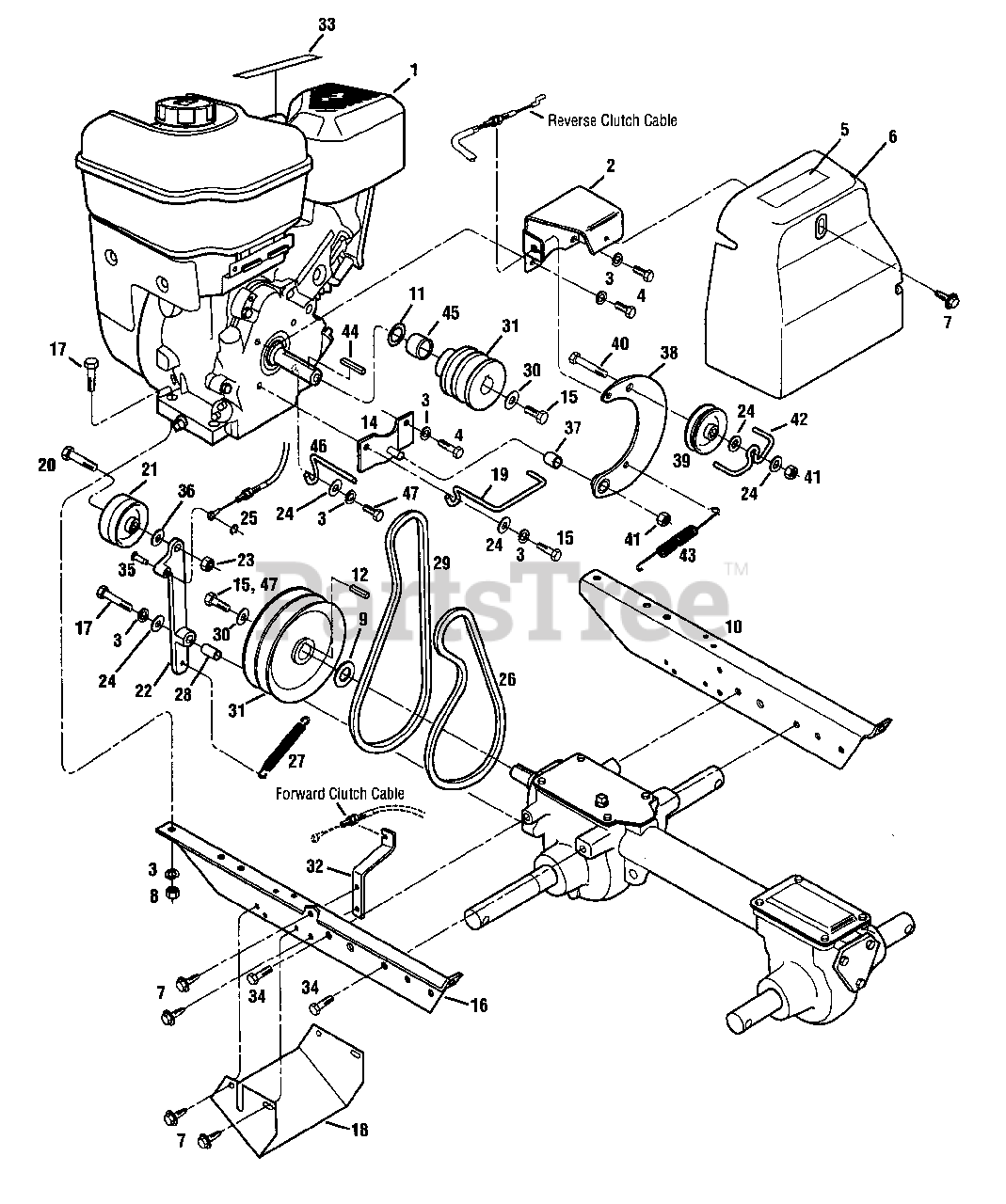

Engine, Engine Brackets And Belt Drive Systems Parts Diagram

  • Title
1

Engine, Recoil Start

Note: Contact your local authorized engine service dealer for engine parts and service. Refer to your engine nameplate for engine model/type number.

$

$

Not available

2

Troy-Bilt 1917326001

Bracket, Belt Cover
(Superseded to 786-04070-0637)

$

$

Not available

3

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

Note: For Model 12209

$4.99

$

In Stock, Qty 20+

0

4

MTD 1111696

Hex Hd. Screw, 5/16-24 x 1/2

Note: For Model 12209

$

$

Not available

5

MTD 1904557

Decal, Hot Surfaces Warning

$

$

Not available

6

MTD 1917128

Belt Cover

Note: (Incl. Ref. 5)

$

$

Not available

7

Troy-Bilt 9552

Flange Screw, Self-Tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 50027

Support Washer
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

10

Troy-Bilt 1916795001

Engine Bracket, Right
(Superseded to 786-04069)

$

$

Not available

11

Troy-Bilt 1138-2

Shim
(Superseded to 736-04192)

Note: As required

$6.99

$

In Stock, only 2 left!

0

12

Troy-Bilt 9301

Key, 3/16" x 1"
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

?13

Troy-Bilt 1916531

Pulley, Engine Drive
(Superseded to 956-04183)

Note: For Model 12209

$87.99

$

Usually ships in 3-6 days

0

14

MTD 1916559001

Reverse Idler Bracket

Note: For Model 12209

$

$

Not available

15

MTD 1100005

Hex Screw, 5/16-24 x 1

$

$

Not available

16

MTD 1916794001

Engine Bracket, Left

$

$

Not available

17

Troy-Bilt 1100799

Hex Screw, 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1916652001

Guard, Belts/Pulleys
(Superseded to 786-04095-0637)

$31.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1916726

Forward Belt Guide

Note: For Model 12209

$

$

Not available

20

MTD 9558

Hex Screw, 3/8-16 x 1-1/2

$

$

Not available

21

Troy-Bilt 9090

Forward Idler Pulley
(Superseded to 756-04170)

$35.99

$

In Stock, only 2 left!

0

22

MTD 1916116001

Forward Idler Lever

$

$

Not available

23

Troy-Bilt 1110108

Locknut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

24

Troy-Bilt 1107382

Flat Washer
(Superseded to 936-0275)

$

$

Not available

25

MTD 9386

Klip Ring

$

$

Not available

26

Troy-Bilt 1916657

Forward Drive Belt
(Superseded to 954-04090)

$20.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 55034

Forward Return Spring
(Superseded to 732-04085)

$14.99

$

Usually ships in 3-6 days

0

28

MTD 55033

Bushing, Forward Idler Lever

$

$

Not available

29

Troy-Bilt 1916658

Reverse Drive Belt
(Superseded to 954-04091)

Note: For Model 12209

$18.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 9944

Belleville Washer
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 1916532

Transmission Pulley
(Superseded to 656-04005A)

Note: For Model 12209

$

$

Not available

32

MTD 1916117001

Bracket, Cable Mounting

$

$

Not available

33

MTD 1900766

Decal, Stabilization

$

$

Not available

34

Troy-Bilt 1186328

Hex Screw, 5/16-18 x 5/8
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

35

MTD 9856

Clevis Pin

$

$

Not available

36

Troy-Bilt 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

37

MTD 1916536

Bushing

Note: For Model 12209

$

$

Not available

38

MTD 1916578001

Reverse Idler Arm

Note: For Model 12209

$

$

Not available

39

Troy-Bilt 1916535

Pulley, Reverse Idler
(Superseded to 756-04169)

Note: For Model 12209

$25.99

$

In Stock, only 1 left!

0

40

MTD 1111606

Hex Screw, 5/16-18 x 2

Note: For Model 12209

$

$

Not available

41

Troy-Bilt 1110107

Locknut, 5/16-18
(Superseded to 912-0158)

Note: For Model 12209

$3.49

$

In Stock, Qty 18

0

42

Troy-Bilt 1916725

Belt Guide
(Superseded to 732-04081)

Note: For Model 12209

$10.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 1916724

Reverse Return Spring

Note: For Model 12209

$

$

Not available

44

Troy-Bilt 1108841

Key, 3/16 x 1-1/2
(Superseded to 914-0133)

$

$

Not available

$

$
