12212 - Troy-Bilt Pony Rear-Tine Tiller (SN: 122121700101 & Above) Hood, Bracket, And Depth Regulator Parts Diagram

Pony Rear-Tine Tiller

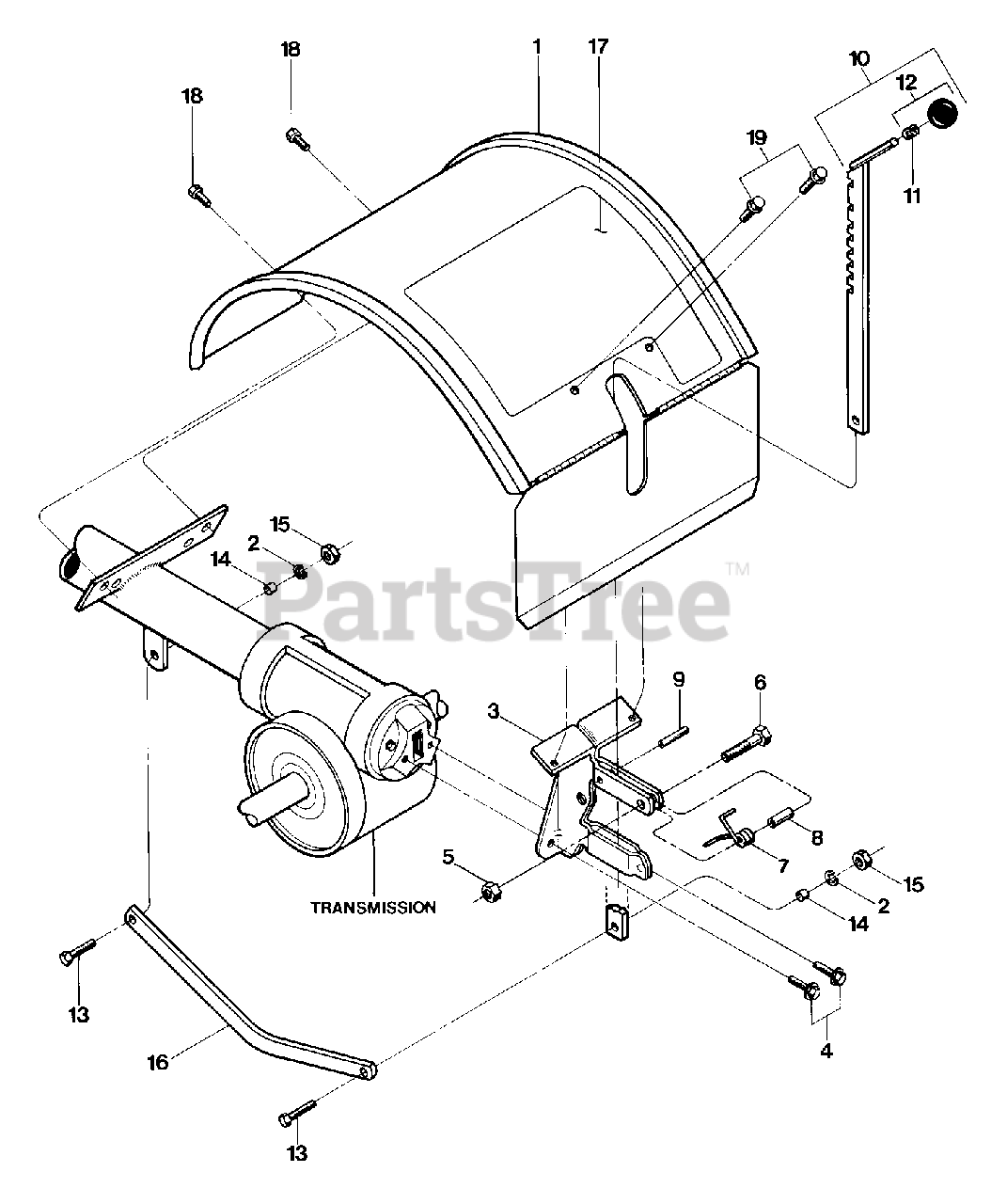

Hood, Bracket, And Depth Regulator Parts Diagram

  • Title
1

Troy-Bilt 1917605

Tine Hood
(Superseded to 686-04078-0638)

Note: (Incl. hood flap and Ref.17)

$184.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 2527

Bracket-hood & depth regulator
(Superseded to GW-2527)

Note: (Incl. Ref. No. 9)

$158.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90038

Hex Flange Screw, 5/16-18 x 5/8

$

$

Currently unavailable

5

Troy-Bilt 9811

Hex Locknut, 1/4-20

$

$

Currently unavailable

6

Troy-Bilt 1100069

Hex Hd. Screw, 1/4-20 x 1
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

7

Troy-Bilt 9384

Spring
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 11

0

8

$

$

Currently unavailable

9

Troy-Bilt 9308

Roll Pin (spiral), 1/4 x 1
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

10

Troy-Bilt 1117A

Depth Adjustment Bar Assembly
(Superseded to 1900864)

Note: (Incl. Refs. 11 and 12)

$86.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 9120

Retaining Ring (tolerance ring)
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 9119

Knob, Depth Regulator
(Superseded to GW-9119)

Note: (Incl. Ref. 11)

$11.99

$

In Stock, Qty 8

0

13

Troy-Bilt 1100043

Hex Hd. Screw, 3/8-16 x 1-1/4
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1113-1

Bushing, Drag Bar
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 1186231

Hex Nut, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 20775

Drag Bar
(Superseded to 1916185001)

$

$

Not available

17

Troy-Bilt 1917536

Decal, operating instructions
(Superseded to 777S30649)

$27.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 9553

Hex Hd. Screw, self-tapping, 5/16-18 x 1/2
(Superseded to 710-0607)

$6.99

$

In Stock, Qty 11

0

19

Troy-Bilt 9552

Hex Flange Screw, self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
