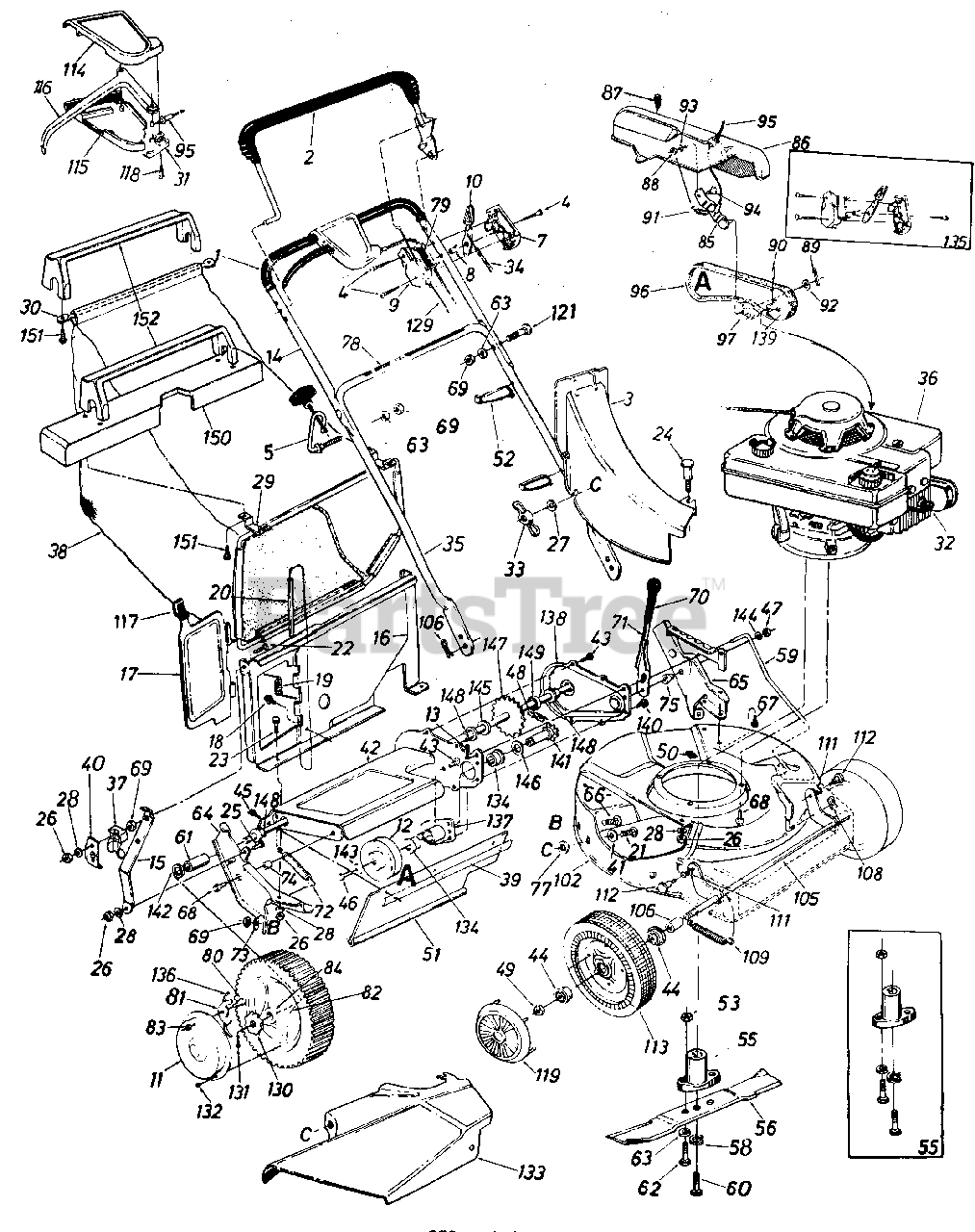

12211C - MTD Walk-Behind Mower (1986) Rotary Parts Diagram

Walk-Behind Mower

Rotary Parts Diagram

  • Title

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

3

MTD 731-0733

Top Discharge Chute Ass'y.

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

MTD 710-0842

Rope Guide Bolt

$

$

Not available

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

MTD 10647

Hub Cap

Note: (Rear)

$

$

Not available

12

MTD 756-0459

1/2 V-Pulley

$

$

Not available

13

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

14

MTD 749-0436

Upper Handle Chrome
(Superseded to 749-0438D-0637)

$

$

Not available

15

MTD 16541

Panel Support Brkt.

$

$

Currently unavailable

16

MTD 16140

Top Catcher Panel

$

$

Not available

17

MTD 16145

Top Doort

$

$

Currently unavailable

18

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

MTD 732-0483

Torsion Spring
(Superseded to 732-0483A)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pint

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

MTD 736-0463

Fl-Wash. .280" I.D. x .620"

$4.49

$

In Stock, only 2 left!

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

MTD 747-0525

Front Grass Catcher Framet

$

$

Not available

30

MTD 747-0526

Upper Bag Supportt

$

$

Not available

31

MTD 731-0619

S.P. Control Cover

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0109

Wing Nut

$

$

Not available

34

MTD 746-0420

Throttle Control Wire 45"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

35

MTD 749-0505

Lower Handle Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

MTD 751-0434

Rope Guide Half
(Superseded to 719-0279)

$15.99

$

Usually ships in 3-6 days

0

38

MTD 764-0215

21" Top Discharge Grass Bag

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

40

MTD 732-0528

Rope Retainer Spring Clip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 7

0

42

MTD 16121

Chain Axle Ass'y.

$

$

Not available

43

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-0875

Hex Wash. TT-Tap Scr. 1/4-20

$3.99

$

In Stock, only 2 left!

0

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain .500" Pitch x .30 Links
(Superseded to 913-0353)

$

$

Not available

49

MTD 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 8

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0671

Rear Flap 3.75" x 17.30" Lg.

$

$

Currently unavailable

52

MTD 725-0240

Cable Tie

$

$

Currently unavailable

53

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

55

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

56

MTD 742-0289

21" Blade

$

$

Not available

58

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

59

MTD 747-0496

Height Adj. Rod 19.42" Lg.

$

$

Not available

60

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

61

MTD 748-0191

Spacer .51" I.D. x .69" O.D. x.69" Lg.

$

$

Not available

62

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 5

0

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0143

Grip

$

$

Not available

71

MTD 732-0473

Height Adj. Lever
(Superseded to 732-0473B)

$

$

Not available

72

MTD 732-0481

Extension Spring .50" O.D. x 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

MTD 750-0624

Shld. Spacer .500" Dia. x .100

$

$

Not available

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, only 3 left!

0

78

MTD 777-5776

Instruction Label

$

$

Currently unavailable

79

MTD 777-5773

Control Label

$

$

Currently unavailable

80

MTD 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

MTD 748-0188

Pawl
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

82

MTD 734-1412

Wheel Ass'y. Comp. Rear 8x 1.75

$

$

Not available

83

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

84

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

85

MTD 16134

Belt Idler Bracket Ass'y.

$

$

Not available

86

MTD 16146

Belt Cover

$

$

Currently unavailable

87

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

89

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

90

MTD 715-0247

Spring Pin Spir. 3/16" Dia. x 1.00" Lg.
(Superseded to 915-0247)

$

$

Not available

91

MTD 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, only 3 left!

0

92

MTD 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$4.49

$

In Stock, only 2 left!

0

93

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

94

MTD 738-0255

Shld. Bolt .375" Dia. x .181
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

95

MTD 746-0466

S.P. Cable x 53.0" Lg.

$

$

Not available

96

MTD 754-0104

"V"-Belt 1/2 " x 32.0" Lg.

$

$

Not available

97

MTD 756-0360

Fl-Idler Plastic 1.62" Dia.

$

$

Not available

102

MTD 16126

21" Deck Ass'y.

Variations

MTD 16126-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

105

MTD 10662

Front Axle Ass'y.

$

$

Currently unavailable

106

MTD 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

$

$

Not available

108

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

MTD 732-0482

Extension Spring .50" O.D. x 3.20" Lg.

$

$

Not available

111

MTD 736-0221

Intern. L-Wash. 3/8 I.D.

$

$

Not available

112

MTD 738-0615

Shld. Bolt .623" Dia. x .425

$

$

Not available

113

MTD 734-1264

Front-Wheel Ass'y. Comp. 7x 1.50

$55.99

$

Usually ships in 3-6 days

0

114

MTD 731-0617

Self-Propelled Control Cover
(Superseded to 731-0617A)

$

$

Not available

115

MTD 731-0618

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

MTD 720-0208

Door Grip

$

$

Not available

118

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

119

MTD 731-0571

Hub Cap Plastic

$

$

Currently unavailable

121

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

129

MTD 746-0479

Control Cable 55" Lg.
(Superseded to 946-0479A)

$

$

Not available

130

MTD 748-0187

Ratchet Wheel 1.62" O.D.

$

$

Not available

131

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

132

MTD 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

$

$

Not available

133

MTD 16559

Side Chute Deflector Ass'y.

$

$

Not available

134

MTD 748-0249

Flange Bushing

$

$

Not available

135

MTD 753-0430

Kit Control Housing Comp.

$

$

Not available

136

MTD 10622

Spring Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

137

MTD 16118

Bearing Hub Flange Ass'y.

$

$

Currently unavailable

138

MTD 16119

Chain Cover

$

$

Currently unavailable

139

MTD 756-0460

Engine Pulley 1/2"

$

$

Not available

140

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

141

MTD 713-0355

Sprocket Shaft Ass'y.

$

$

Not available

142

MTD 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

143

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

144

MTD 736-0300

Fl-Wash. .385" I.D. x .87" 0. D.

$4.49

$

In Stock, Qty 20+

0

145

MTD 736-0326

Fl-Wash. .51" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

146

MTD 736-0254

Fl-Wash. .62" I.D. x 1.12" O.D.
(Superseded to 936-0349)

$4.49

$

In Stock, Qty 20+

0

147

MTD 738-0614

Rear Shaft Ass'y. 22.05" Lg.

$

$

Not available

148

MTD 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 748-0301

Spacer .510" I.D. x 1.00" O.D. x .210" Lg.

$

$

Currently unavailable

150

MTD 731-0807

Catcher Frame Cover

$

$

Not available

151

MTD 710-0969

Truss Mach. Tap Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

152

MTD 731-0801

Bag Handle

$

$

Not available

MTD 731-0759

Plastic Tubing

Note: (Not Shown)

$

$

Not available
