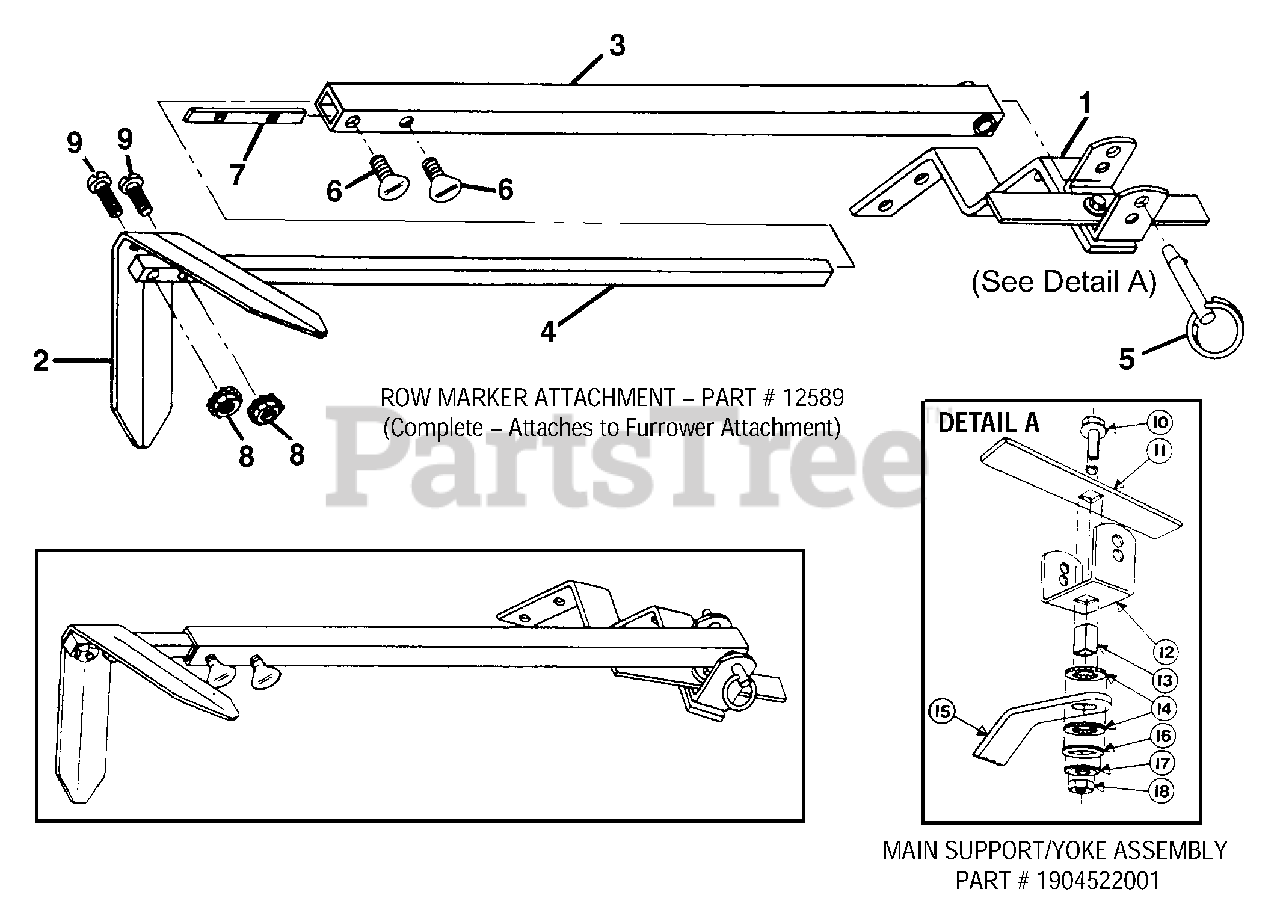

12211 - Troy-Bilt Pony Rear-Tine Tiller (SN: 122111700101 & Above) Row Marker Parts Diagram

Pony Rear-Tine Tiller

Row Marker Parts Diagram

  • Title

12589

Troy-Bilt 12589

Row Marker Attachment

$

$

Currently unavailable

1

Troy-Bilt 1904522001

Main Support & Yoke Assy-complete.

Note: (Incl. Ref. No.'s 10,11,12,13,14,15,16,17 & 18)

$

$

Currently unavailable

2

MTD 1594

Marker Blade-blade only

$

$

Not available

3

MTD 1904524001

Marker Arm-main arm

$

$

Not available

4

MTD 1904523001

Marker Arm-extension arm with stop pin

$

$

Not available

5

Troy-Bilt 9347

Hitch Pin-
(Superseded to GW-9347)

Note: (incl. in Hardware Pkg #1837)

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

Thumbscrew-1/4-20 x 1/2, not avail. sep.

Note: (see hardware pkg. #1837)

$

$

Currently unavailable

7

MTD 1596

Nut Bar-

Note: (incl. in hardware pkg #1837)

$

$

Not available

8

MTD 9828

Nut-hex, 10-24 w/attached start washers, not avail. sep.

Note: (see hardware pkg #1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd.,10-24 x 1, not avail. sep.

Note: (see hardware pkg #1837)

$

$

Not available

MTD 1837

Hardware Package-

Note: includes: one #9347 hitch pin (Ref. 5), two #9786 thumbscrews (Ref. 6), one #1596 nut bar (Ref. 7), two #9828 hex nuts (Ref. 8), two 1100135 screws (Ref. 9)

$

$

Not available

Troy-Bilt 12582

Row Marker Attachment & Pony Hiller/Furrower Attachment-complete:

Note: incl. #12579 Pony Hiller/Furrower and #12589 Row Marker

$

$

Currently unavailable

Troy-Bilt 12589

Row Marker Attachment-

Note: complete: attaches to furrower attachment #12579, includes #1904522001 Main Support & Yoke Assy

$

$

Currently unavailable

1904522001

Troy-Bilt 1904522001

Row Marker Main Support & Yoke Assembly

$

$

Currently unavailable

10

Troy-Bilt 1186349

Screw-hex flanged locking, 3/8-16 x 1-1/2

$3.99

$

Usually ships in 3-6 days

0

11

MTD 1593

Stop Bar

$

$

Not available

12

MTD 1592

Yoke

$

$

Not available

13

MTD 1591

Tube Key-square

$

$

Not available

14

Troy-Bilt 1590

Washer-friction
(Superseded to GW-1590)

$7.99

$

Usually ships in 3-6 days

0

15

MTD 1588

Main Support

$

$

Not available

16

MTD 1589

Washer-square hole

$

$

Not available

17

MTD 9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut-hex 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0
