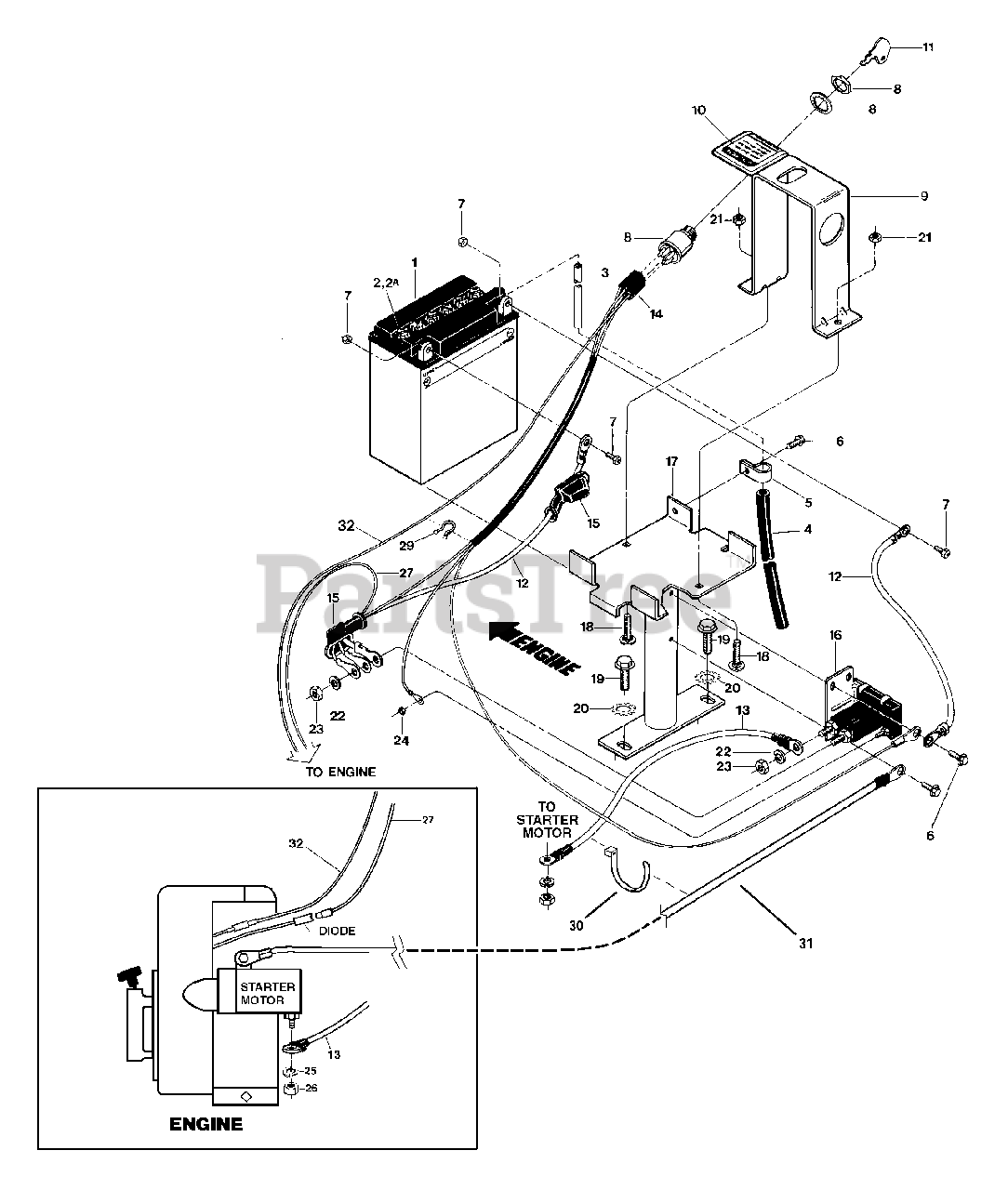

12211 - Troy-Bilt Pony Rear-Tine Tiller (SN: 122111700101 & Above) Electric Start Assembly Parts Diagram

Pony Rear-Tine Tiller

Electric Start Assembly Parts Diagram

  • Title

1

MTD 96512

Battery, 12 Volt, 9 Amp

Note: (Incl. Ref. 7)

$

$

Not available

2

MTD 9462

Battery Cap (yellow)

$

$

Not available

2A

MTD 9248

Battery Cap (white)

$

$

Not available

3

MTD 9009

Vent Tube

$

$

Not available

4

MTD 1475

Shield, Vent Tube (hard plastic)

$

$

Not available

5

MTD 9224

Clamp

$

$

Not available

6

Troy-Bilt 9552

Hex Flange Screw, Self-Threading, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 11361

Battery Hardware Kit-

Note: Includes two M6 x 11mm Bolts and two M6 Nuts (metric sizes)

$

$

Currently unavailable

8

Troy-Bilt 1908112

Ignition Switch
(Superseded to 925-0267B)

Note: (Incl. two ignition keys [Ref. 11], one lockwasher and one nut (lockwasher and nut not available separately)

$35.99

$

In Stock, Qty 8

0

9

MTD 1904570

Battery Hold-Down Clamp/Switch Mounting Plate Assy.

Note: (Incl. Ref. 10)

$

$

Not available

10

Troy-Bilt 1904548

Decal, Ignition Switch
(Superseded to 777S30648)

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 96520

Ignition Key (pair)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

12

MTD 96509

Battery Cable

$

$

Not available

13

Troy-Bilt 96510

Cable (solenoid to starter motor)
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

14

MTD 1908118

Wire Harness Assy.

Note: (available as complete assembly only).

$

$

Not available

15

Troy-Bilt 97020

Boot, Insulating
(Superseded to GW-97020)

$

$

Not available

16

Troy-Bilt 96514

Solenoid
(Superseded to GW-96514099)

Note: (Incl. nuts and washers for cables and wires)

$48.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 1918831001

Battery Bracket

$

$

Currently unavailable

18

Troy-Bilt 1186073

Round Hd. Screw, Square Neck, 1/4-20 x 1-1/4

$2.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 1186331

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

20

Troy-Bilt 1177548

Lockwasher, External Tooth
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 1186389

Hex Locknut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1186211

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 9853

Hex Locknut, #10-32
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

25

Lockwasher, #10 (not available from factory)

$

$

Not available

26

Hex Nut, #10-24 (not available from factory)

$

$

Not available

27

Troy-Bilt 1901894

Recharge Wire Assembly

$

$

Not available

?28

Troy-Bilt 9218

Clip (holds recharging line)
(Superseded to GW-9218)

$

$

Not available

29

Troy-Bilt 9265

Plastic Wire Tie
(Superseded to GW-9265)

$

$

Not available

30

Troy-Bilt 9202

Plastic Wire Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 1901202

Cable (ground wire to starter motor bracket)

$34.99

$

Usually ships in 3-6 days

0

32

MTD 1917262

Ground Wire Assy. (shut off)

$

$

Not available

$

$

Not available
