12211 (21A-531-081) - Troy-Bilt Pony Rear-Tine Tiller Transmission Housing, Covers, Seals, Gaskets, Plugs Parts Diagram

Pony Rear-Tine Tiller

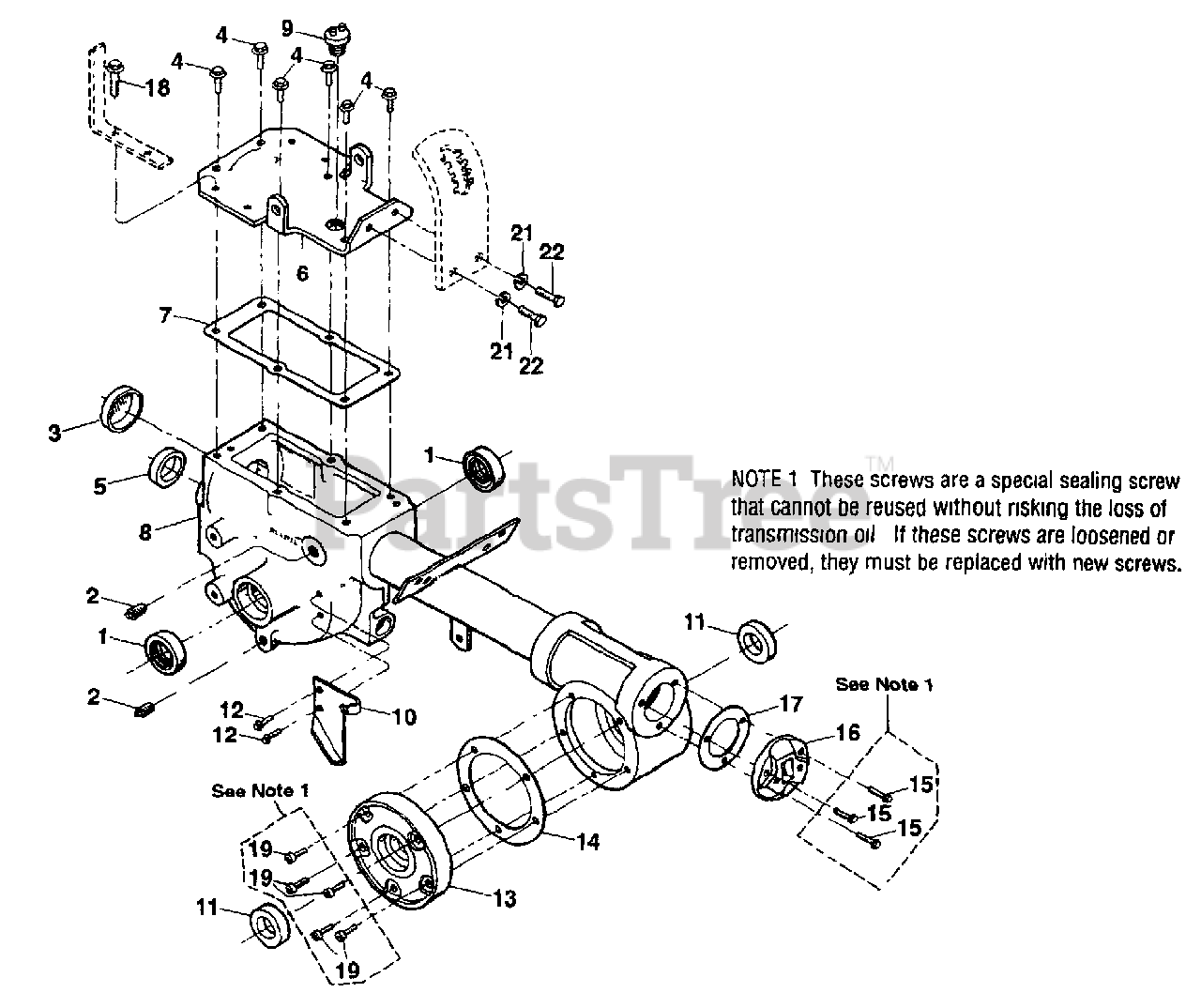

Transmission Housing, Covers, Seals, Gaskets, Plugs Parts Diagram

  • Title

1

Troy-Bilt 9621

Oil Seal (Double Lip), Wheel Shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

Pipe Plug, 1/4,
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 97076

Seal, Transmission Bore
(Superseded to 721-04001)

$10.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 1186329

Hex Flange Screw, 5/16-18 x 3/4
(Superseded to 710-04043)

Note: Specify GRADE 5 if ordering part locally

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 85030

Oil Seal, Input Pinion Shaft

$

$

Currently unavailable

6

Troy-Bilt 11513

Transmission Cover

Note: (Incl. four Ref. 18 and two ea. Refs. 21 & 22)

$

$

Currently unavailable

7

Troy-Bilt 20694

Gasket, Transmission Top Cover
(Superseded to GW-20694P)

$5.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1916197001

Transmission Case Assy.
(Superseded to 919-04010)

Note: (Incl. Tube and Rear Housing)

$456.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9467

Plug
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 1916198001

Mounting Plate, Wheel Drive Cable

$

$

Not available

11

Troy-Bilt 97073

Oil Seal, Tiller Shaft
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 90038

Hex Flange Screw, 5/16-18 x 5/8

Note: Specify GRADE 5 if ordering part locally

$

$

Currently unavailable

13

Troy-Bilt 1916273001

Tiller Housing Cover, left side
(Superseded to GW-20873)

$108.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1129-1

Gasket, Tiller Housing Cover, .010"
(Superseded to GW-1129-1099)

Note: (Fits all covers); As Required

$8.99

$

In Stock, Qty 17

0

15

Troy-Bilt 1915089

Screw Kit

Note: Incl. three 1/4-20 x 7/8 Self-Sealing Screws; As Required

$

$

Not available

16

Troy-Bilt 1115

Rear Bearing Cap

$

$

Currently unavailable

17

Troy-Bilt 1124-2

Gasket, Rear Bearing Cap, .010" Thick
(Superseded to GW-1124-2099)

Note: As Required

$4.99

$

In Stock, Qty 18

0

18

Troy-Bilt 1186331

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-04048)

Note: Specify GRADE 5 if ordering part locally

$4.99

$

In Stock, Qty 7

0

19

Troy-Bilt 1915087

Screw Kit

Note: Incl. five 1/4-20 x 5/8 Self-Sealing Screws; As Required

$

$

Not available

21

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1100068

Hex Hd. Screw, 3/8-16 x 3/4
(Superseded to 710-0216)

Note: Specify GRADE 5 if ordering part locally

$4.49

$

In Stock, Qty 15

0

$

$

Not available
