12211 (21A-531-081) - Troy-Bilt Pony Rear-Tine Tiller Hiller/Furrower Attachment Parts Diagram

Pony Rear-Tine Tiller

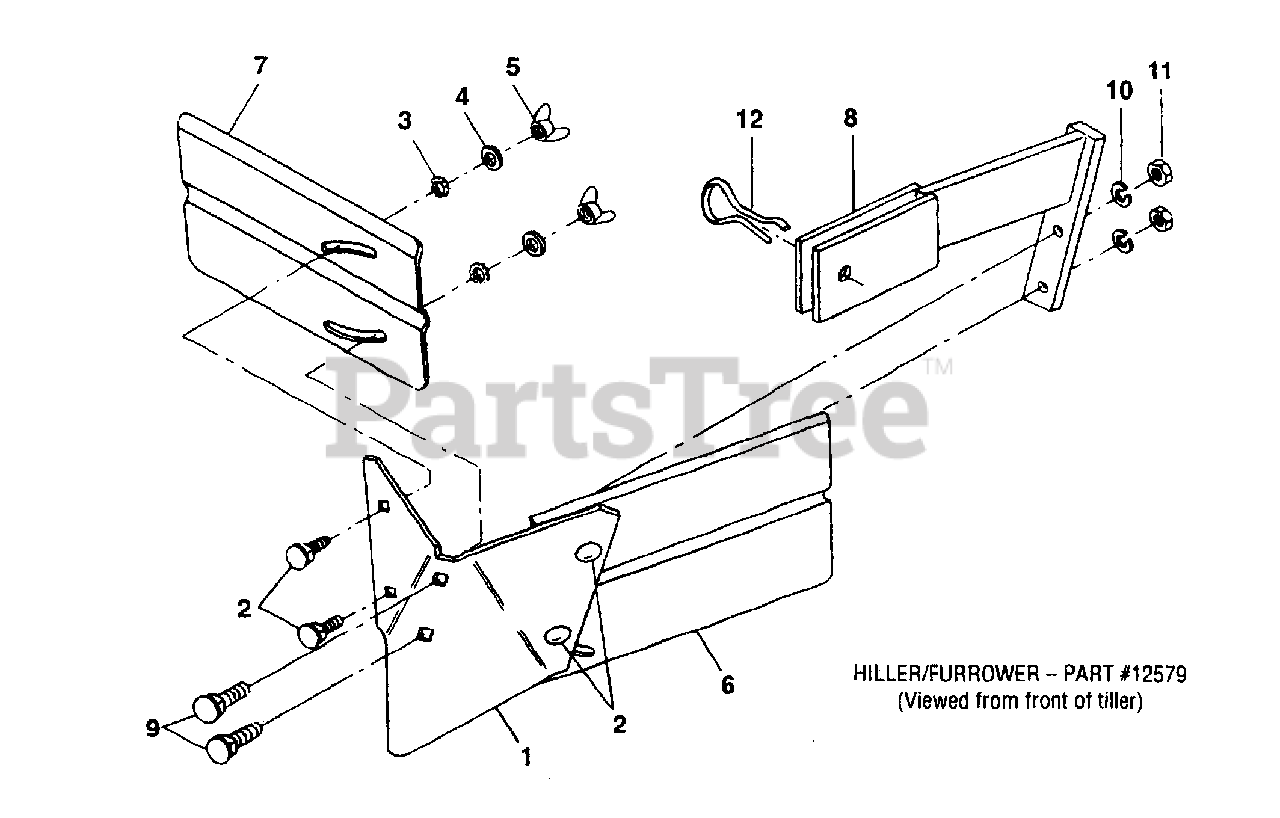

Hiller/Furrower Attachment Parts Diagram

  • Title

1

Troy-Bilt 1900771001

Furrower Blade

$69.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1186098

Carriage Bolt, 5/16-18 x 3/4

$

$

Not available

3

Troy-Bilt 1177548

Star Washer, External Tooth, 5/16
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 9902

Plain Washer, 5/16 S.A.E

$

$

Currently unavailable

5

Troy-Bilt 9824

Wing Nut, 5/16-18
(Superseded to GW-9824)

$5.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1900773001

Hiller Wing, left

$45.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900774001

Hiller Wing, right

$57.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1900772001

Blade Mounting Bracket
(Superseded to GW-2636)

$188.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9725

Carriage Bolt, 3/8-16 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1100243

Lockwasher, 3/8, plated
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1186231

Hex Nut, 3/8-16, plated
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

12

MTD 9318

Clinch Pin

$

$

Not available

~N/A

Complete Hiller/Furrower Attachment

Note: (Incl. blade, bracket, hiller wings and mounting hardware)

$

$

Not available

Troy-Bilt 12579

Hiller/Furrower

$

$

Currently unavailable
