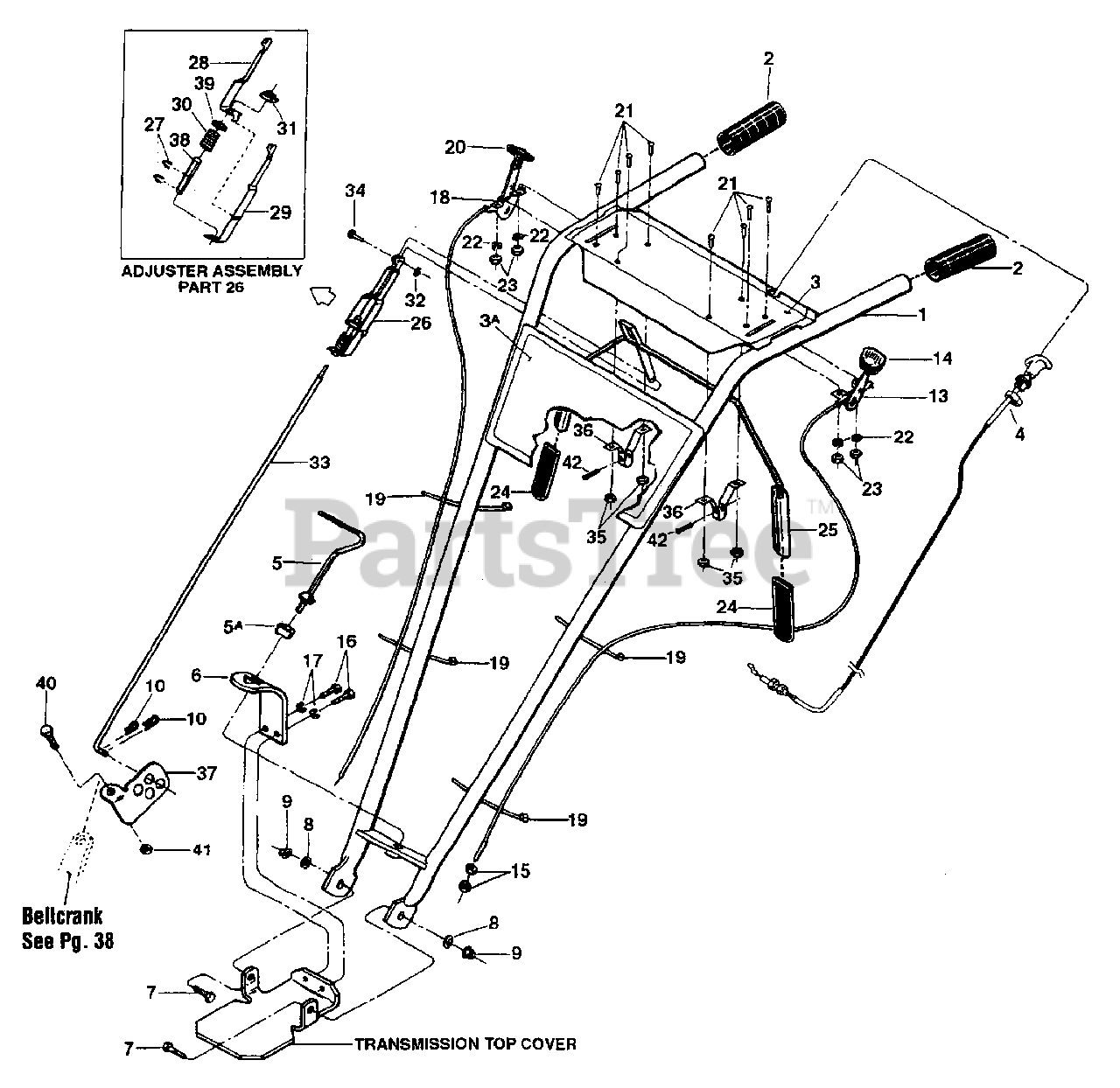

12211 (21A-531-081) - Troy-Bilt Pony Rear-Tine Tiller Handlebar Assembly And Control Levers Parts Diagram

Pony Rear-Tine Tiller

Handlebar Assembly And Control Levers Parts Diagram

  • Title

1

MTD 1917606

Handlebars

Note: (Incl. Refs. 2, 3 & 3A) For Model 12211 (Recoil Start Engine)

$

$

Not available

2

Troy-Bilt 9126

Grip
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 8

0

3

MTD 1917537

Decal, Control Panel

Note: For Model 12211 (Recoil Start Engine)

$

$

Not available

3A

MTD 20924

Decal, Model Name/Logo

$

$

Not available

4

Troy-Bilt 1916784

Reverse Clutch Control Cable
(Superseded to 1916784P)

$68.99

$

In Stock, only 1 left!

0

5

MTD 20703

Height Adjustment Handle

$

$

Not available

5A

Troy-Bilt 9955

Washer, Keyed
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1900475001

Bracket, Handlebar Height Adjustment
(Superseded to 1900475010)

$21.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1100046

Hex Hd. Screw, 3/8-16 x 1
(Superseded to 710-0514)

Note: Specify GRADE 5 if ordering locally.

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 9904

Washer, Plain (flat) 3/8, S.A.E.
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 9442

Wheel Gear Control and Cable Assy.
(Superseded to GW-9442P)

Note: (Incl. Refs. 14, 15, 19, 21, 22 & 23)

$40.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 9057

Knob, Wheel Gear Control Lever
(Superseded to GW-9057)

$8.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 1186211

Hex Nut, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

16

Troy-Bilt 1100068

Hex Hd. Screw, 3/8-16 x 3/4
(Superseded to 710-0216)

Note: Specify GRADE 5 if ordering locally.

$4.49

$

In Stock, Qty 14

0

17

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

18

MTD 1916900

Engine Throttle Control and Cable

$

$

Not available

19

Troy-Bilt 1735531

Cable Ties, Plastic
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 9212

Knob, Throttle Control Lever
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 1114748

Round Hd. Screw, #10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1100240

Lockwasher, #10

$

$

Not available

23

Troy-Bilt 1186208

Hex Nut, #10-32

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 9390

Grip
(Superseded to GW-9390)

$4.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 20863

Bail, Forward Clutch Control
(Superseded to 1918840)

Note: (Incl. two Ref. 24)

$116.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 20862

Adjuster Assy.
(Superseded to GW-20862)

Note: (Incl. Refs. 27, 28, 29, 30, 38 and 39)

$

$

Not available

27

Troy-Bilt 9532

Klip Ring
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

28

MTD 20808

Adjuster, Right Side

$

$

Not available

29

Troy-Bilt 20809

Adjuster, Left Side
(Superseded to GW-20809)

$

$

Not available

30

MTD 9059

Spring, Adjuster

$

$

Not available

31

MTD 9522

Rectangular Nut

$

$

Not available

32

MTD 9386

Klip Ring

$

$

Not available

33

MTD 20831

Rod, Forward Clutch
(Superseded to GW-20831)

$

$

Not available

34

Troy-Bilt 97083

Clevis Pin

$

$

Currently unavailable

35

Troy-Bilt 9853

Sems Nut
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 20806

Bracket, Bail Support
(Superseded to GW-20806)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 20888

Swivel

$

$

Not available

38

MTD 9432

Bushing

$

$

Not available

39

MTD 9973

Washer

$

$

Not available

40

Troy-Bilt 1100805

Hex Hd. Screw, 1/4-20 x 3/4
(Superseded to 710-3015)

Note: Specify GRADE 5 if ordering locally.

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 9811

Nut, 1/4-20

$

$

Currently unavailable

42

Troy-Bilt 9552

Hex Flange Screw, self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

Note: Specify GRADE 5 if ordering locally.

$4.49

$

In Stock, Qty 20+

0
