12211 (21A-531-081) - Troy-Bilt Pony Rear-Tine Tiller Forward Idler Assembly Parts Diagram

Pony Rear-Tine Tiller

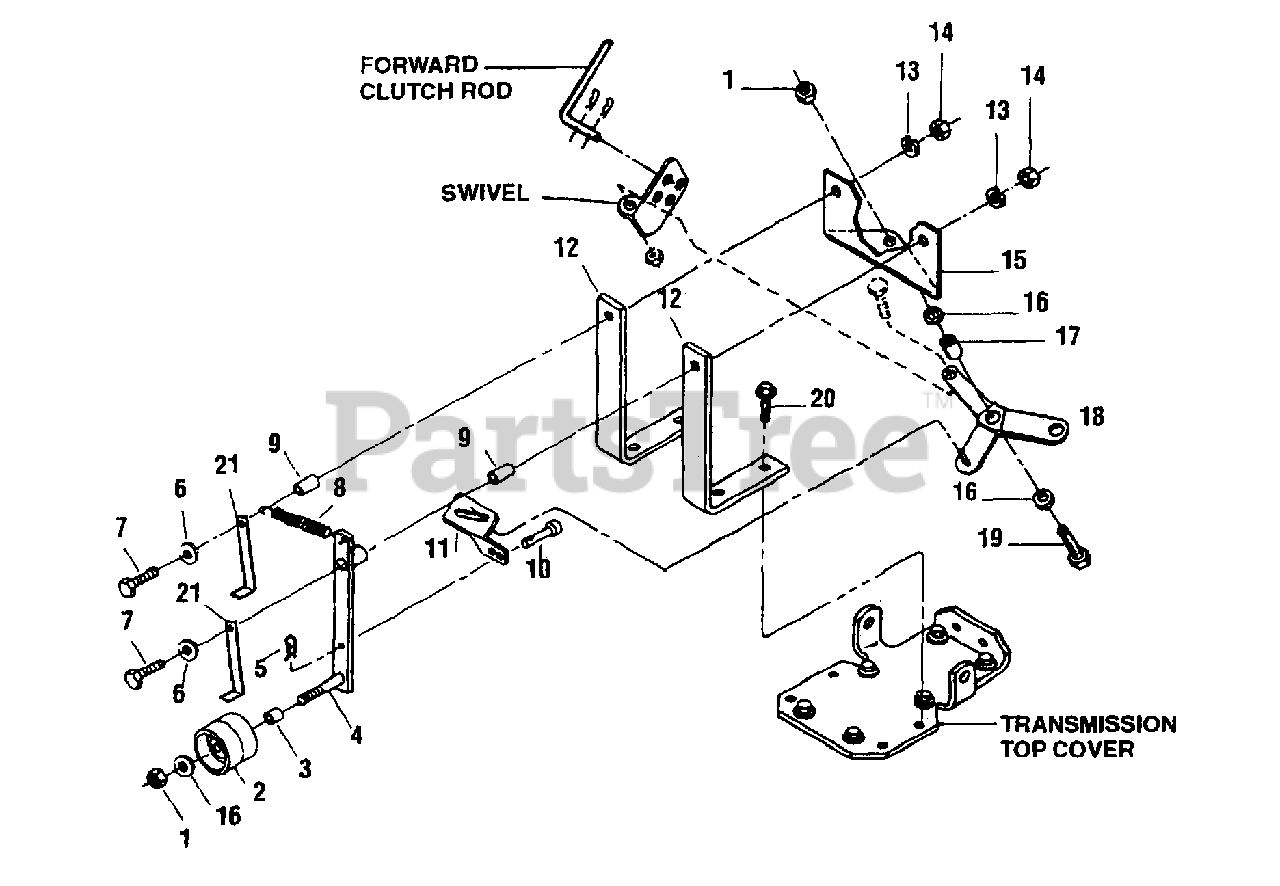

Forward Idler Assembly Parts Diagram

  • Title

1

Troy-Bilt 1110108

Hex LOCknut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

2

Troy-Bilt 9090

Idler Pulley, Forward
(Superseded to 756-04170)

$35.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 20532

Spacer
(Superseded to GW-20532)

$

$

Not available

4

MTD 1916192001

Left Idler Arm, forward tiller direction

$

$

Not available

5

Troy-Bilt 9338

Hairpin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

6

MTD 20545

Plain Washer. 5/16

$

$

Not available

7

Troy-Bilt 1111607

Hex Hd. Screw, 5/16-18 x 2-1/4
(Superseded to 710-0395)

Note: Specify GRADE 5 if ordering part locally.

$4.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 1916727

Spring
(Superseded to 732-04078)

$

$

Not available

9

MTD 9479

Pivot Bushing

$

$

Not available

10

MTD 9340

Pin

$

$

Not available

11

MTD 20517-01

Forward Link

$

$

Not available

12

MTD 1916194001

Mounting Bar

$

$

Not available

13

Troy-Bilt 1100242

Lockwasher, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 1916195001

Shifting Base

$

$

Not available

16

Troy-Bilt 20553

Spacer (Bushing)
(Superseded to GW-20553)

$

$

Not available

17

Troy-Bilt 20532

Bushing (Bellcrank)
(Superseded to GW-20532)

$

$

Not available

18

Troy-Bilt 1916196001

Bellcrank

$43.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 1100043

Hex Hd. Screw, 3/8-16 x 1-1/4
(Superseded to 710-3005)

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 1186331

Hex Flange Screw, 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

21

MTD 1917149001

Belt Guide, Forward Belt

$

$

Not available
