12211 (21A-531-081) - Troy-Bilt Pony Rear-Tine Tiller Bumper Attachment Parts Diagram

Pony Rear-Tine Tiller

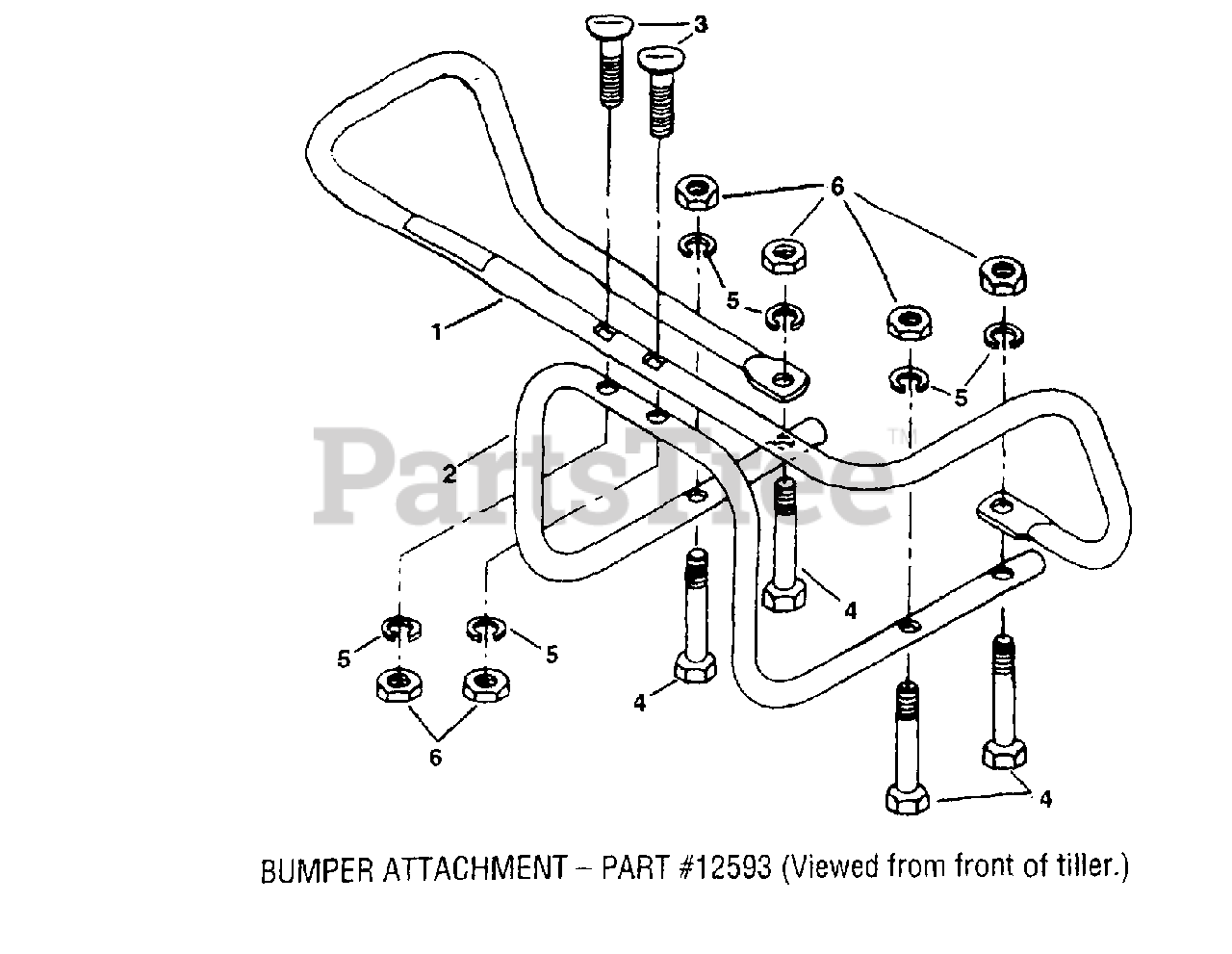

Bumper Attachment Parts Diagram

  • Title

1

Troy-Bilt 1904757001

Bumper, Top Section 1
(Superseded to 749-04193-0637)

$54.99

$

In Stock, Qty 6

0

2

Troy-Bilt 1904758001

Bumper, Bottom Section 1
(Superseded to 749-04193-0637)

$54.99

$

In Stock, Qty 6

0

3

Troy-Bilt 1731025

Curved Hd. Screw, 5/16-18 x 2
(Superseded to 710-1174)

Note: (Special); also see #1915811 Hardware Kit

$7.49

$

In Stock, Qty 20+

0

4

MTD 1111608

Hex Hd. Screw, 5/16-18 x 2-1/2,

Note: (Not avail. separately - order #1915811 Hardware Kit); Specify Grade 5 if ordering part locally.

$

$

Not available

5

Troy-Bilt 1100242

Lockwasher, 5/16,
(Superseded to 936-0119)

Note: (Not avail. separately - order #1915811 Hardware Kit)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

Note: (Not avail. separately - order #1915811 Hardware Kit)

$4.49

$

In Stock, Qty 20+

0

MTD 1915811

Hardware Kit.

Note: Includes: two Ref. 21; four Ref. 22; six Ref. 23 and six Ref. 24

$

$

Not available
