1221 (1690511) - Simplicity 21" 4-in-1 Walk-Behind Mower Chute, Bag & Deck Group Parts Diagram

21" 4-in-1 Walk-Behind Mower

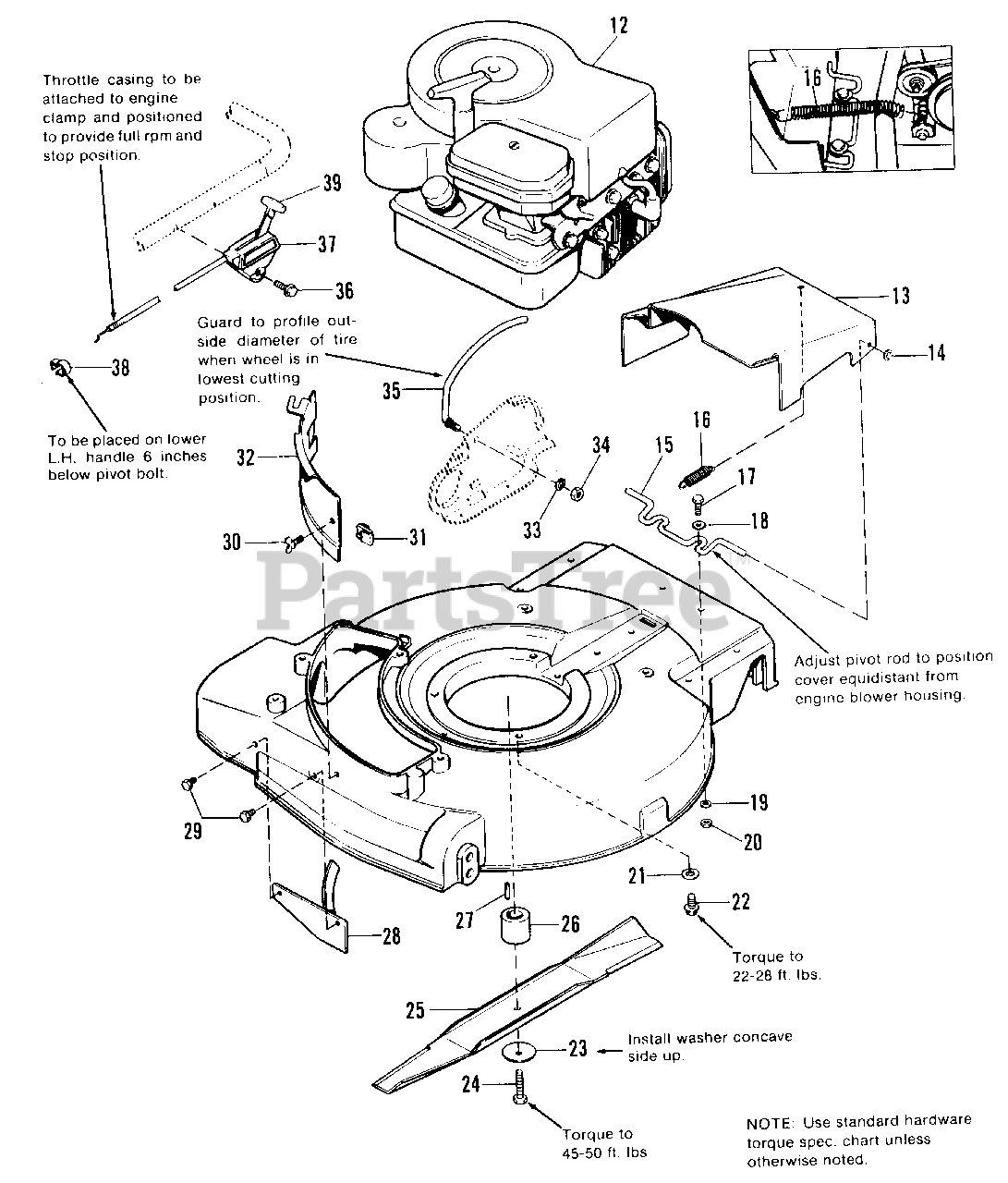

Chute, Bag & Deck Group Parts Diagram

  • Title

12

ENGINE, 3.5 W/PTO Briggs & Stratton, Model 93598, Type 0280-01 (Mfg. No. 1690512 & 541) ENGINE, 3.5 (Mfg. No. 1690511 & 540)

$

$

Not available

13

Simplicity 1666957

COVER, Belt

$

$

Not available

14

Simplicity 1960140SM

NUT, Pal

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 1666986

HINGE

$

$

Not available

16

Simplicity 2121037SM

SPRING

$

$

Not available

17

Simplicity 930607

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

18

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

19

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

20

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 2820427SM

LOCKWASHER, Int. Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

22

Simplicity 2827187SM

SCREW, Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1663151SM

WASHER, Spring

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 2822128

CAPSCREW, Hex Hd., 3/8-24 x 1-1/2

$

$

Not available

25

Simplicity 1663150

BLADE, 21"

$

$

Not available

26

Simplicity 1663149

ADAPTOR, Blade

$

$

Not available

27

Simplicity 2810224SM

KEY, Woodruff, #6

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1666981

STONE GUARD ASSY.

$

$

Not available

29

Simplicity 2825003

SCREW, Taptite, 1/4-20 x 1/2 (Mfg. No. 1690512)

$

$

Not available

30

Simplicity 2835023

SCREW, Thumb, 1/4-20 x 5/8

Note: Reference Nos. 30 thru 35 are used on Rear Bagging Mower, Mfg. No. 1690511 & 1690512.

$

$

Not available

31

Simplicity 2828705

NUT, Speed

Note: Reference Nos. 30 thru 35 are used on Rear Bagging Mower, Mfg. No. 1690511 & 1690512.

$

$

Not available

32

Simplicity 171644

BAFFLE (Mfg. No. 1690511 & 512)

Note: Reference Nos. 30 thru 35 are used on Rear Bagging Mower, Mfg. No. 1690511 & 1690512.

$

$

Not available

33

Simplicity 1917356SM

LOCKWASHER, 5/16 (Mfg. No. 1690511 & 512)
(Superseded to 703116)

Note: Reference Nos. 30 thru 35 are used on Rear Bagging Mower, Mfg. No. 1690511 & 1690512.

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

Note: Reference Nos. 30 thru 35 are used on Rear Bagging Mower, Mfg. No. 1690511 & 1690512.

$3.49

$

In Stock, Qty 20+

0

35

Simplicity 1666968

GUARD, Bag (Mfg. No. 1690511 & 512)

Note: Reference Nos. 30 thru 35 are used on Rear Bagging Mower, Mfg. No. 1690511 & 1690512.

$

$

Not available

36

Simplicity 2829783

SCREW, Taptite, 1/4-20 x 1

$

$

Not available

37

Simplicity 1666581

CONTROL, Throttle

$

$

Not available

38

Simplicity 2108812

CLAMP, Spring

$

$

Not available

39

Simplicity 1656099SM

KNOB
(Superseded to 1719768SM)

$12.99

$

Usually ships in 2-12 days

0
