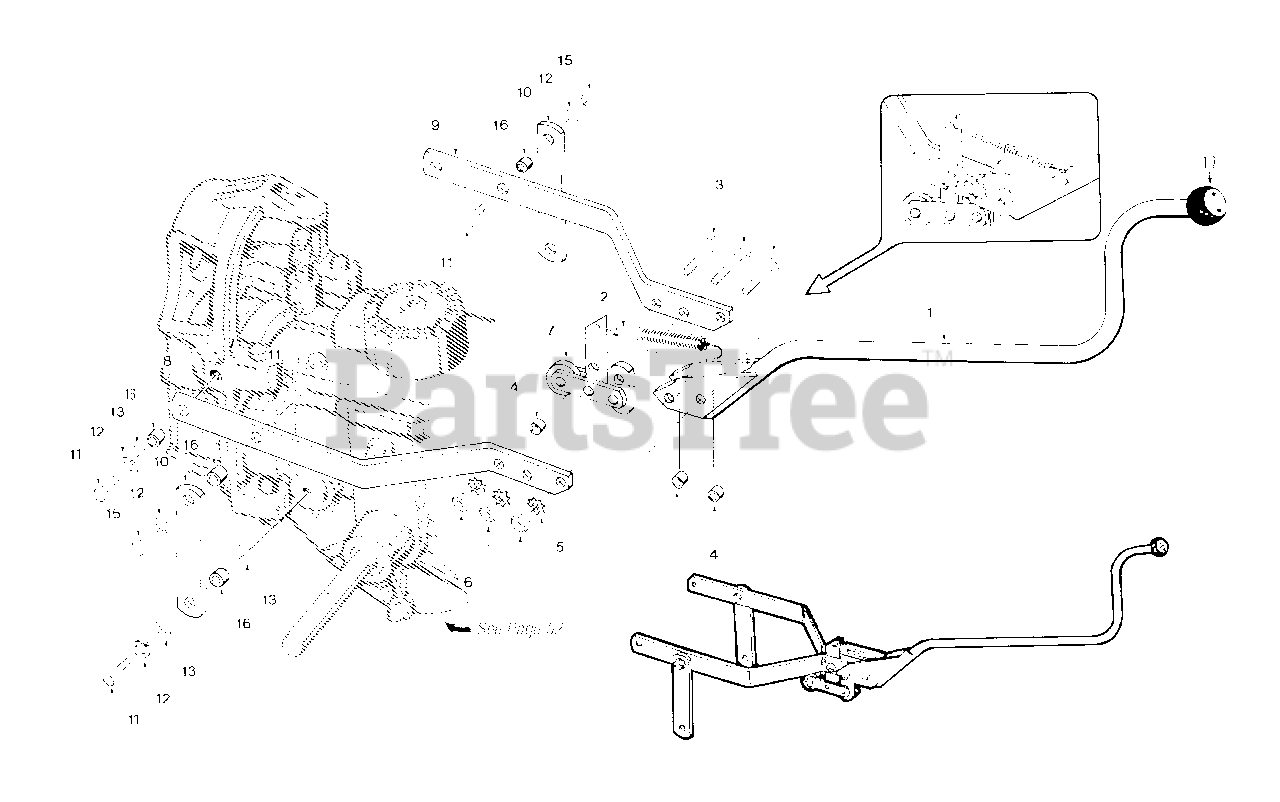

12204 - Troy-Bilt Horse Rear-Tine Tiller, Electric PTO Wheels/Tines/PTO Drive Lever & Yoke Assembly Parts Diagram

Horse Rear-Tine Tiller, Electric PTO

Wheels/Tines/PTO Drive Lever & Yoke Assembly Parts Diagram

  • Title

1

Troy-Bilt 2574

Lever-Wheels/Tines/PTO Drive
(Superseded to 647-04006)

Note: (Incl. knob w/decal)

$134.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 1908156

Spring-clutch pawl

$15.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1100799

Bolt-hex hd., 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 2447

Bushing-3/8"
(Superseded to GW-2447)

$6.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 1177548

Lockwasher-external tooth, 5/16"
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186230

Nut-hex, 5/16"-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1916265001

Roller Assembly
(Superseded to 686-04006)

$93.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 1900468001

Yoke-left side

$

$

Not available

9

Troy-Bilt 1900469001

Yoke-right side

$43.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900860001

Link-Yoke pivot, left & Right 6-7/8" long

$16.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1100046

Bolt-hex hd., 3/8-16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100243

Lockwasher-spring lock, 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1107383

Washer-flat, 3/8", S.A.E.
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

15

Troy-Bilt 1186231

Nut-hex, 3/8"-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1113-1

Bushing-spacer, 19/64" (.300")
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

17

Knob-not avail. separately.

Note: See Ref No. 1

$

$

Not available
