12204 - Troy-Bilt Horse Rear-Tine Tiller, Electric PTO Power Unit Transmission Assemblies Parts Diagram

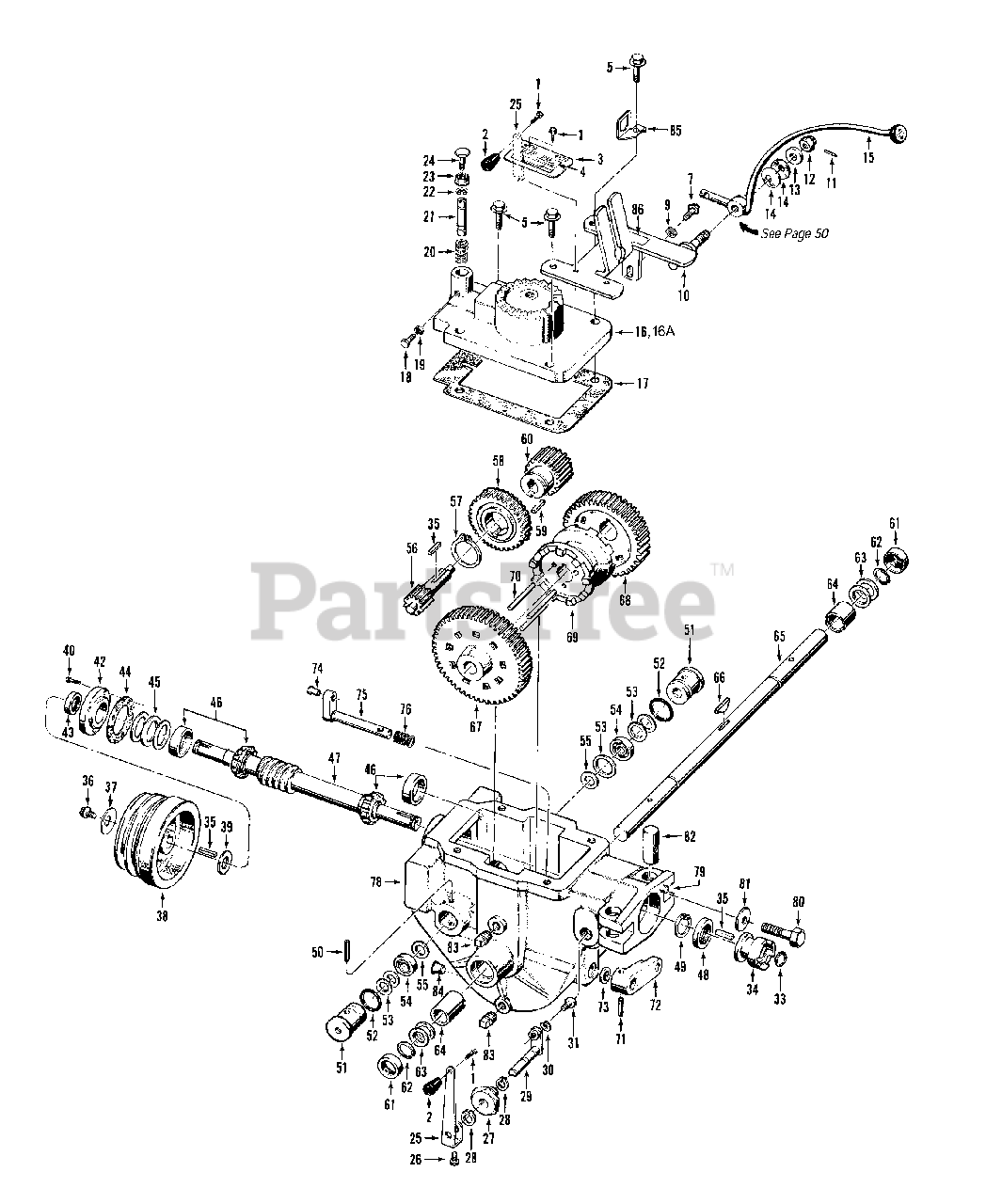

Horse Rear-Tine Tiller, Electric PTO

Power Unit Transmission Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1186299

Bolt-hex hd., #10-32 x 3/8", self-locking flange
(Superseded to 710-04454)

$4.49

$

In Stock, Qty 14

0

2

Troy-Bilt 9463

Knob-tines/PTO clutch lever, tapered, plastic
(Superseded to GW-9463)

$11.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 2263

Detent Plate-tines/PTO clutch lever
(Superseded to GW-2263)

Note: (Incl. Ref. No. 4)

$52.99

$

In Stock, only 1 left!

0

4

Troy-Bilt 1900758

Decal-operating instructions, detent plate
(Superseded to 777I20945)

$4.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 1186347

Bolt-flanged hex hd., 3/8-16 x 1-1/2"
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 1186329

Bolt-flanged hex hd., 5/16-18 x 3/4", Grade 5
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1107382

Washer-flat, 5/16", S.A.E.
(Superseded to 936-0275)

$

$

Not available

10

Troy-Bilt 1900870001

Bracket-shift levers

Note: (Incl. Ref. No. 86)

$178.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 9362

Pin-spring, 1/8"
(Superseded to GW-9362)

$4.49

$

Usually ships in 3-6 days

0

12

MTD 9838

Nut-castle (slotted), 1/2"-20,

$

$

Not available

13

Troy-Bilt 9934

Washer-shoulder, 1/2"
(Superseded to GW-9934)

$15.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 9932

Washer-disc spring
(Superseded to GW-9932)

$24.99

$

In Stock, only 3 left!

0

15

Lever-wheel speed shift

Note: (See "Wheel Speed Lever, Belt Drive System, Engines, Wheels", Ref. No. 5 for part number illustration and parts list)

$

$

Not available

16

Troy-Bilt 1900869001

Cover-power unit transmission
(Superseded to 719-04015P)

$233.99

$

In Stock, only 3 left!

0

16A

MTD 2566

Cover-power unit transmission

Note: (Incl. Ref. No.'s 18, 19, 20, 21, 22, 23 and 24)

$

$

Not available

17

Troy-Bilt 1123

Gasket-transmission cover
(Superseded to GW-1123)

$8.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1100045

Bolt-hex hd., 5/16-18 x 1", Grade 5,
(Superseded to 710-0376)

Note: (Remove with care)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1186230

Nut-hex, 5/16"-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 1901439

Spring-neutral plunger

Note: (Remove with care)

$12.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 1035

Plunger-neutral
(Superseded to GW-1035)

Note: (Remove with care); (Incl. Ref. No. 22)

$37.99

$

In Stock, Qty 5

0

22

Troy-Bilt 1901440

Clip Ring-retains neutral plunger

$5.49

$

In Stock, Qty 19

0

23

Troy-Bilt 1186393

Nut-hex, flange locknut, 3/8"-16

$3.49

$

In Stock, only 2 left!

0

24

Troy-Bilt 1902004

Bolt-hex hd., 3/8-16x1-1/2", threaded full length

$8.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 1900878001

Lever-eccentric, tines/PTO clutch.
(Superseded to 786-04002)

Note: (Also see Ref. No.'s 1, 2, 3 and 4 listed above)

$56.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 1100804

Bolt-hex hd., 1/4-20 x 1/2"
(Superseded to 710-3013)

$4.99

$

In Stock, Qty 11

0

27

Troy-Bilt 2123

Bushing-tines/PTO clutch lever eccentric shaft
(Superseded to 741-04008)

$28.99

$

In Stock, Qty 7

0

28

Troy-Bilt 9516

Retaining Ring-(snap ring), external
(Superseded to GW-9516)

$4.49

$

In Stock, only 4 left!

0

29

Troy-Bilt 2461

Eccentric-shaft, tines/PTO clutch lever
(Superseded to GW-2461)

$39.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 9911

Lockwasher-hi-collar, 1/4"
(Superseded to GW-9911)

$5.99

$

In Stock, Qty 9

0

31

Troy-Bilt 9672

Screw-socket hd., 1/4-20 x 3/8"
(Superseded to 710-04354)

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 9500

Retaining Ring-external
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 1909139

Dog Clutch-power unit
(Superseded to 718-04615)

$53.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 9301

Key-3/16 sq. x 1"
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 1100004

Bolt-hex hd., 5/16-24 x 3/4", self-locking flange, Grade 5
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 14

0

37

Troy-Bilt 9944

Washer-disc spring (concave)
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 18

0

38

Troy-Bilt 2107

Pulley-transmission drive, cast iron
(Superseded to GW-2107)

$145.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 50027

Washer-flat, hardened shoulder 1-1/4"
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 6

0

40

Troy-Bilt 1186310

Bolt-hex hd., 1/4-20 x 3/4", front bearing cap

$3.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt GW-1900879001

Cap-front bearing

$

$

Currently unavailable

43

Troy-Bilt 1983632

Seal-oil, front bearing cap
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 1124-2

Gasket-front bearing cap
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 18

0

45

Troy-Bilt 1224-1

Shim-front bearing cap, .010" thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 1224-2

Shim-as above, .030"
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

45

Troy-Bilt 1224-3

Shim-as above, .005"
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 1224-4

Shim-as above, .062"
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 13

0

46

Troy-Bilt 1714

Bearing & Cup-tapered cone roller bearing with cup (race).
(Superseded to 941-0107)

Note: Cone and cup sold as set only

$47.99

$

In Stock, Qty 17

0

47

MTD 11601

Shaft-main drive, power unit.

Note: Incl. integral worm, plus two pressed-on cone roller bearings, two bearing cups and two shoulder washers

$

$

Not available

48

Troy-Bilt 9617

Seal-oil, drive shaft, rear
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 9517

Retaining Ring-(snap ring), internal
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 9309

Pin-roll (spirol), 1/4 x 2"
(Superseded to 715-0121)

$6.99

$

In Stock, Qty 8

0

51

Troy-Bilt 1060A

Plug-retaining, pinion bearing
(Superseded to GW-1060A)

Note: (Incl. Ref. No. 52)

$

$

Not available

52

Troy-Bilt 9604

O-Ring-retaining plug
(Superseded to GW-9604)

$5.49

$

In Stock, Qty 9

0

53

Troy-Bilt 1132-1

Shim-retaining plug, 1-1/64" inner dia., .033" thick
(Superseded to GW-1132-1)

Note: (On right side only one #1132-1 shim is also used between bearing and washer, Ref. No.'s 54 & 55)

$6.99

$

In Stock, Qty 5

0

53

Troy-Bilt 1132-2

Shim-same as 1132-1, .062"
(Superseded to 736-04310)

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 1132-3

Shim-same as 1132-1, .010"
(Superseded to GW-1132-3)

$6.99

$

In Stock, Qty 5

0

54

Troy-Bilt 9404

Bearing-ball, pinion shaft
(Superseded to GW-9404)

$27.99

$

In Stock, only 2 left!

0

55

Troy-Bilt 1126

Washer-pinion shaft
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 1222

Stem Pinion-slow speed gear & shaft
(Superseded to GW-1222)

$139.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 9502

Ring-retaining, external
(Superseded to GW-9502)

$14.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 2656

Worm Gear-bronze, wheel drive
(Superseded to GW-2656)

$147.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 9300

Key-3/16" x 5/8"
(Superseded to GW-9300)

$3.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 1233

Gear-fast speed pinion
(Superseded to GW-1233)

$142.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 9621

Seal-oil, wheel shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 9511

Retaining ring-external
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1166-1

Shim-wheel shaft, 1-1/64" inner dia., .062" thick
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1166-2

Shim-as above, .030" thick
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 1166-3

Shim-as above, .015" thick
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

63

Troy-Bilt 1166-4

Shim-as above, .010" thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 1166-5

Shim-same as above, .005" thick
(Superseded to 736-04257)

$3.99

$

In Stock, Qty 20+

0

64

Troy-Bilt 1086

Bushing-bronze, wheel shaft bearing
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 6

0

65

Troy-Bilt 1878

Shaft-wheel, 15-5/8",
(Superseded to GW-1878)

Note: (Incl. two of Ref. No. 62 and one Ref. No. 66)

$229.99

$

In Stock, Qty 8

0

66

Troy-Bilt 9357

Key-Hi Pro, 1/4" x 1-3/4"
(Superseded to 714-04014)

$20.99

$

In Stock, only 2 left!

0

67

Troy-Bilt 1223

Gear-slow speed, wheel drive
(Superseded to GW-1223)

$223.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 1232

Gear-fast speed, wheel drive
(Superseded to GW-1232)

$154.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 1237

Dog Clutch-wheel drive
(Superseded to GW-1237)

$162.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 1112

Pin-clutch guide, 1/4" diameter
(Superseded to GW-1112)

$4.99

$

In Stock, Qty 6

0

71

Troy-Bilt 9307

Pin-roll, 3/16" x 1-1/4" (spirol)
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

72

Troy-Bilt 1900880001

Lever-eccentric, wheel speed shifting
(Superseded to 619-04000-0637)

$60.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 9622

Seal-oil, eccentric shaft
(Superseded to 921-04034)

$10.99

$

In Stock, Qty 20+

0

74

Troy-Bilt 1442

Pin-eccentric shaft, wheel speed shifting
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

75

Troy-Bilt 2712

Eccentric Shaft-wheel speed shifting
(Superseded to 611-04003)

$89.99

$

In Stock, only 1 left!

0

76

Troy-Bilt 1441

Spring-eccentric shaft
(Superseded to GW-1441)

$4.49

$

Usually ships in 3-6 days

0

78

Troy-Bilt 2260

Housing-power unit transmission
(Superseded to GW-2109099)

Note: (Incl. Ref. No. 79). Empty housing without covers, shafts, gears, seals, etc. (Call Factory before ordering)

$936.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 9359

Pin-alignment
(Superseded to GW-9359)

$3.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt GW-9560

Bolt-hex hd., 1/2-13 x 2" Grade 5
(Superseded to 1100067)

$

$

Not available

81

Troy-Bilt 9928

Washer-disc spring (concave),
(Superseded to GW-9928)

Note: Domed side faces bolt head

$12.99

$

Usually ships in 3-6 days

0

82

MTD 2126

Post-with threaded hole

Note: For Ref. No. 80

$

$

Not available

83

Troy-Bilt 1105620

Plug-pipe, 1/4"

$4.49

$

In Stock, only 3 left!

0

84

Troy-Bilt 9122

Plug-red plastic, thread protector
(Superseded to GW-9122)

$10.99

$

Usually ships in 3-6 days

0

85

MTD 9205

Clip-forward interlock system plug connector

Note: (See "Forward Interlock System" illustration and parts list)

$

$

Not available

86

Troy-Bilt 1900759

Decal-forward interlock wire harness
(Superseded to 777I20944)

$9.99

$

In Stock, only 2 left!

0

$

$

Not available
