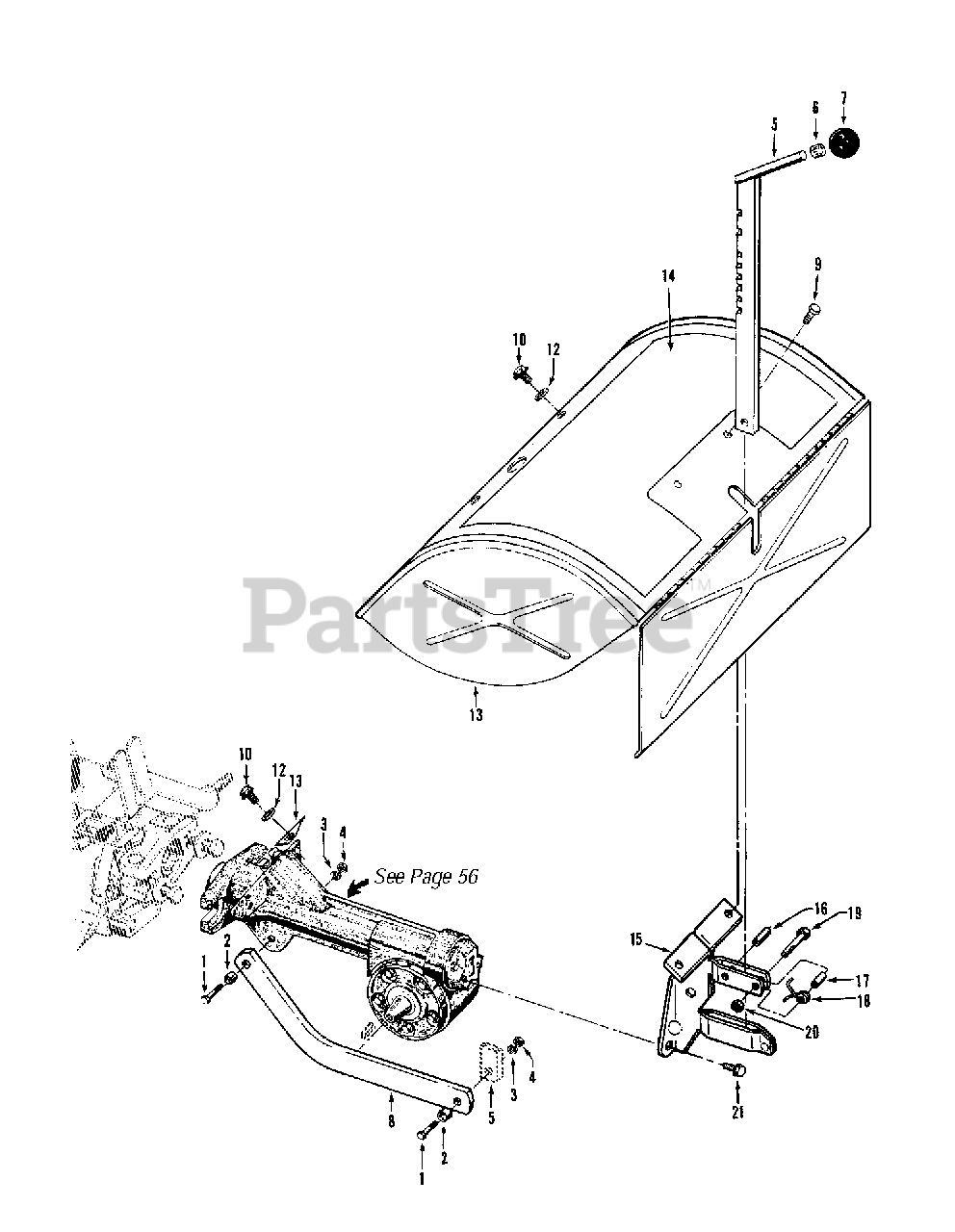

12204 - Troy-Bilt Horse Rear-Tine Tiller, Electric PTO Depth Regulator & Tine Hood Assemblies Parts Diagram

Horse Rear-Tine Tiller, Electric PTO

Depth Regulator & Tine Hood Assemblies Parts Diagram

  • Title

1

Troy-Bilt 1100043

Bolt-hex hd., 3/8-16 x 1-1/4"
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

2

Troy-Bilt 1113-1

Bushing-19/64" (.300" lg.)
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1100243

Lockwasher-spring lock, 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1186231

Nut-hex, 3/8"-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1117A

Bar-depth regulator
(Superseded to 1900864)

Note: (Incl. Ref. No.'s 6 and 7)

$86.99

$

In Stock, only 4 left!

0

6

Troy-Bilt 9120

Ring-retaining
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 9119

Knob-depth regulator
(Superseded to GW-9119)

Note: (Incl. Ref. No. 6)

$11.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 1900867001

Bar-drag, depth regulator

$34.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 9552

Screw-thread-forming, 1/4-20 x 1/2"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186329

Bolt-flanged hex hd., 5/16-18 x 3/4"
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 9929

Washer-flat, 5/16"
(Superseded to GW-9929)

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1904563

Hood

Note: (Incl. Ref. No. 14)

$426.99

$

Usually ships in 3-6 days

0

14

MTD 1904543

Decal-hood, operating instructions

$

$

Not available

15

Troy-Bilt 2527

Bracket
(Superseded to GW-2527)

Note: (Incl. Ref. No. 16)

$158.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 9308

Pin-roll (spirol) 1/4" x 1"
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

17

Troy-Bilt 9534

Spacer
(Superseded to GW-9534)

$4.49

$

In Stock, Qty 8

0

18

Troy-Bilt 9384

Spring
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 9

0

19

Troy-Bilt 1100069

Bolt-hex hd., 1/4-20x1"
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

20

Troy-Bilt GW-9811

Locknut-1/4"-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

21

Troy-Bilt 1186328

Bolt-flanged hex hd., 5/16-18 x 5/8"
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0
