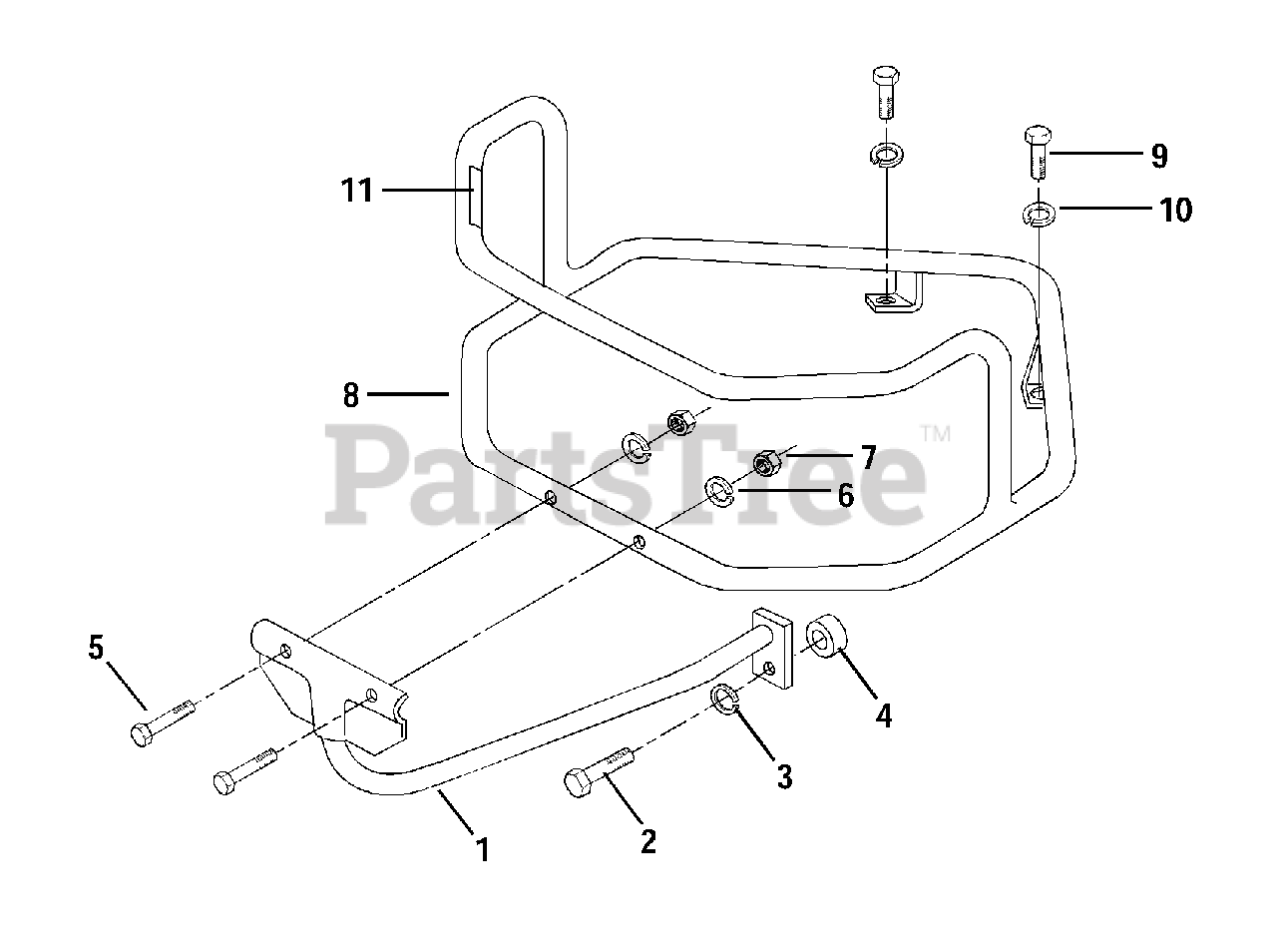

12204 - Troy-Bilt Horse Rear-Tine Tiller, Electric PTO Bumper Attachment Parts Diagram

Horse Rear-Tine Tiller, Electric PTO

Bumper Attachment Parts Diagram

  • Title

Troy-Bilt GW-12588

Bumper Attachment.

Note: Includes Ref. Nos. 1 through 11)

$

$

Currently unavailable

1

Troy-Bilt 1910730001

Brace - bumper bottom

$83.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1909765

Bolt - hex hd., 1/2-13 x 1-1/2"
(Superseded to 710-3181)

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 1100245

Lockwasher - spring lock, 1/2"
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

4

Troy-Bilt 1909748

Spacer, 1/2"

$3.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1100799

Bolt - hex hd., 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 1100242

Lockwasher - spring lock, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1186230

Nut - hex, 5/16"-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1910731001

Bumper wraparound

$215.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1100046

Bolt - hex hd., 3/8-16 x 1"
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100243

Lockwasher - spring lock, 3/8"
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 1448

Decal - for bumper
(Superseded to GW-1448)

$6.49

$

Usually ships in 3-6 days

0
