122 R (21AB122R901) - Yard-Man Tiller (2005) Engine Parts Parts Diagram

Tiller

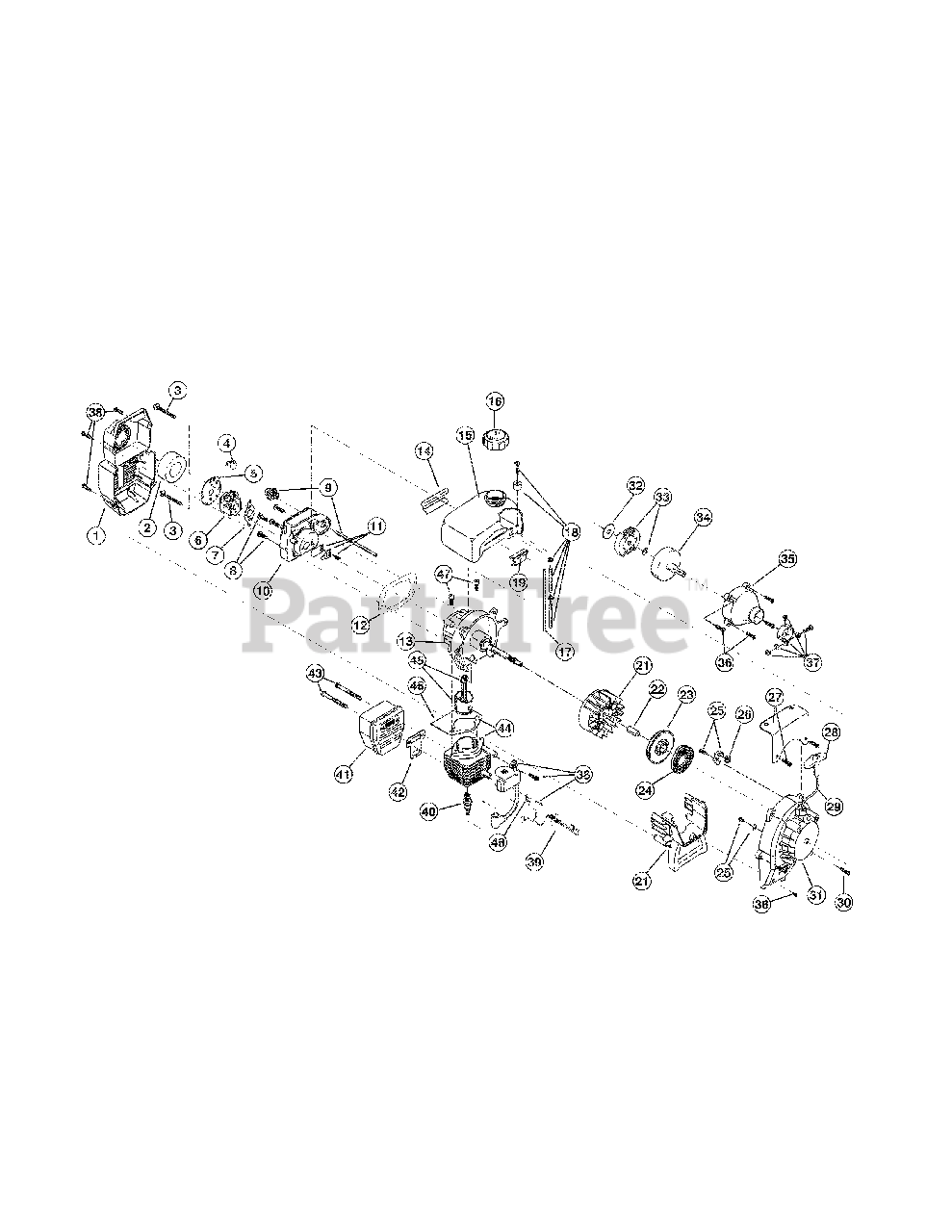

Engine Parts Parts Diagram

  • Title

1

MTD 753-04810

Air Cleaner Assembly (includes 2 & 36)

$

$

Not available

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

MTD 753-04227

Choke Lever

$

$

Not available

5

MTD 753-1194

Choke Plate
(Superseded to 753-04419)

$

$

Not available

6

MTD 753-04318

Carburetor Assembly (includes 7 & 18)
(Superseded to 753-04338)

$96.99

$

In Stock, only 1 left!

0

7

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

8

MTD 791-181860

Carb Mount Screw

$

$

Not available

9

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

10

MTD 753-1196

Carb Mount Assembly (includes 8, 11 & 12)

$

$

Not available

11

MTD 791-684451

Reed Assembly

$

$

Not available

12

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

13

MTD 753-04922

Crank Case Service Assembly (includes 8)

$75.99

$

Usually ships in 3-6 days

0

14

MTD 791-612134

Rear Mounting Pad

$

$

Not available

15

MTD 753-04306

Fuel Tank Assembly (includes 16-18)

$

$

Not available

16

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

17

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

18

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

19

MTD 791-145308

Front Mounting Pad

$

$

Not available

20

MTD 753-04611

Shroud Extension and Stand (includes 36

$

$

Not available

21

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

22

MTD 791-181065

Spacer

$

$

Not available

23

MTD 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

24

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

25

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

26

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

27

MTD 791-180317

Fuel Tank Guard Assembly

$

$

Not available

28

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

29

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

30

MTD 791-181912

Housing Screw

$6.99

$

Usually ships in 3-6 days

0

31

MTD 791-181931

Starter Housing Assembly (includes items 23-26, 28-30 & 36)

$

$

Not available

32

MTD 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

33

MTD 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 10

0

34

MTD 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

35

MTD 791-180098

Clutch Cover Assembly (includes 36)

$35.99

$

Usually ships in 3-6 days

0

36

MTD 791-181345

Clutch Cover Screw

$4.49

$

In Stock, only 4 left!

0

37

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

38

MTD 753-04337

Module Assembly

$

$

Not available

39

MTD 791-182880

Wire Lead

$14.99

$

Usually ships in 3-6 days

0

40

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

41

MTD 753-04926

Muffler Assembly (includes item 42 & 43)

$101.99

$

Usually ships in 3-6 days

0

42

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

43

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

44

MTD 753-04814

Cylinder Assembly (includes items 46 & 47)

$83.99

$

In Stock, only 1 left!

0

45

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

46

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

47

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

48

MTD 791-611063

Ground Tab

$

$

Not available

MTD 753-1209

Piston Ring (NOT SHOWN)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04925

Spark Arrestor (NOT SHOWN)

$

$

Not available

MTD 753-04986

Short Block Assembly (items 10, 15, 40 & 44-47) (NOT SHOWN)

$204.99

$

Usually ships in 3-6 days

0

MTD 791-181599

Clutch Springs (Qty. 2) (NOT SHOWN)

$11.99

$

Usually ships in 3-6 days

0
