122 LDX - Husqvarna String Trimmer FUEL TANK Parts Diagram

String Trimmer

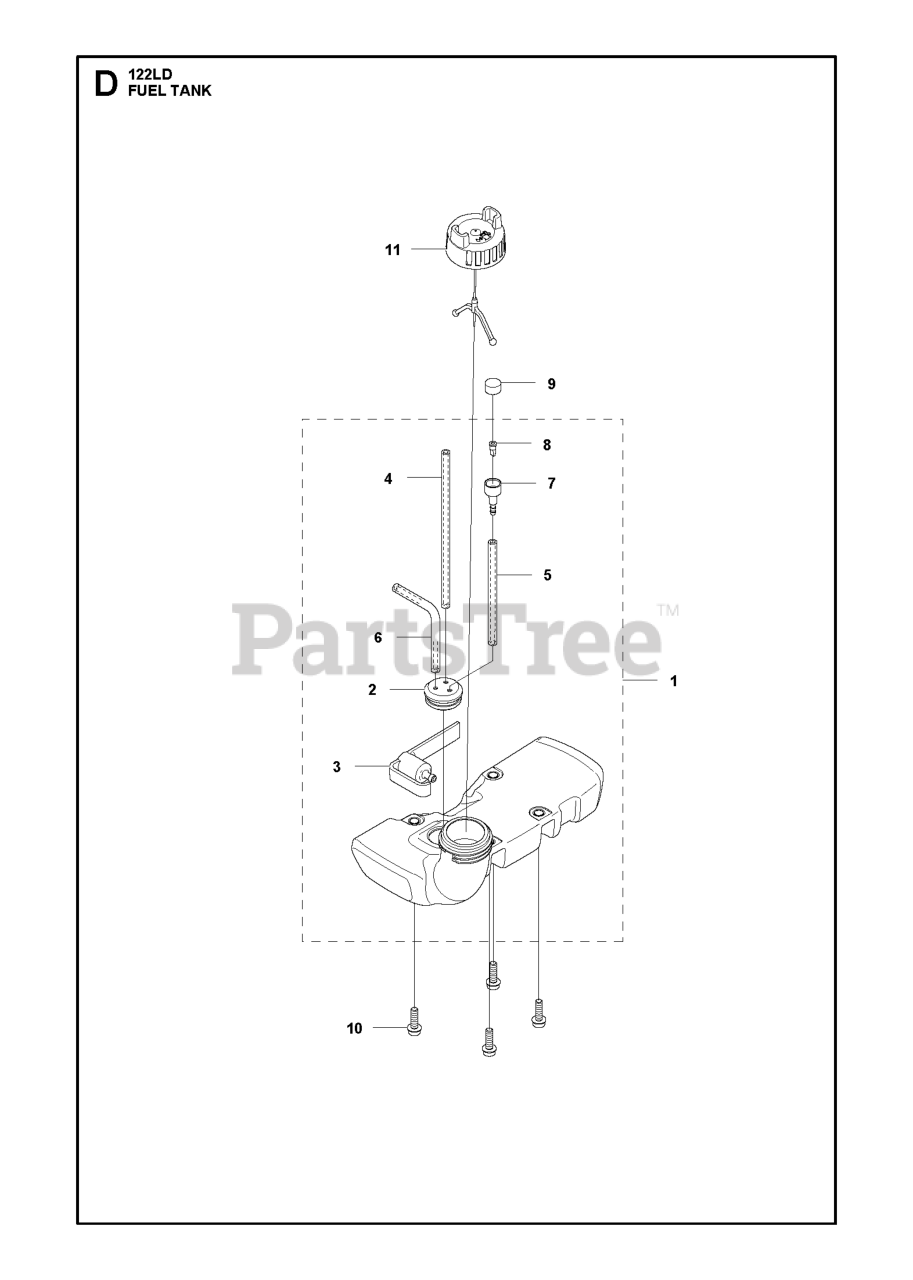

FUEL TANK Parts Diagram

  • Title

2

Husqvarna 574263001

HOSE GROMMET
(Superseded to 580486801)

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575484601

FILTER,VALVE

$5.99

$

In Stock, only 1 left!

0

7

Husqvarna 575484401

FUEL INLET

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 574600202

HOSE

Note: 150mm

$9.99

$

In Stock, only 2 left!

0

6

Husqvarna 578975603

RP FUEL HOSE
(Superseded to 581742701)

Note: 225mm

$9.99

$

Usually ships in 3-10 days

0

10

Husqvarna 525755101

SCREW

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 577044801

FUEL TANK
(Superseded to 577044808)

$37.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544889701

TANK CAP
(Superseded to 590324801)

$17.99

$

In Stock, only 1 left!

0

8

Husqvarna 575484501

VALVE, FUEL INLET

$7.99

$

Usually ships in 3-10 days

0

3

Husqvarna 574603901

FUEL FILTER

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 574600101

HOSE

Note: 155mm

$6.49

$

Usually ships in 3-10 days

0
