122 - Cub Cadet Garden Tractor Implement Handle & Connections Parts Diagram

Garden Tractor

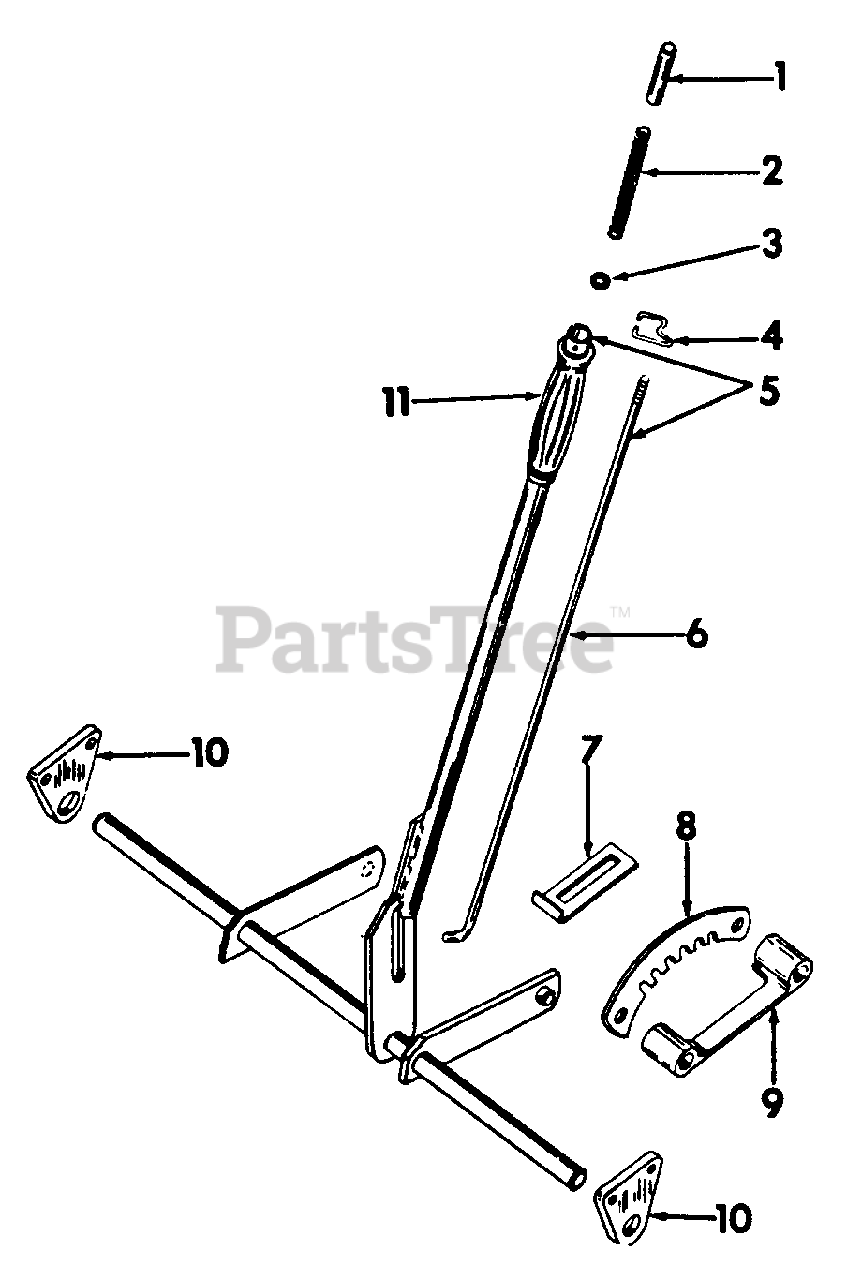

Implement Handle & Connections Parts Diagram

  • Title

1

Cub Cadet IH-376307-R2

Pin, Handle Release Rod

$

$

Not available

2

Cub Cadet 732-3023

Spring, Release Rod Return
(Superseded to 932-3023)

$19.99

$

In Stock, Qty 7

0

3

Cub Cadet IH-376308-R1

Washer, Release Rod Return Spring

$

$

Not available

4

Cub Cadet IH-376314-R1

Lock, Release Rod

$

$

Not available

5

Cub Cadet IH-392601-R91

Handle Assy, Lift

$

$

Currently unavailable

6

Rod, Handle Release

Note: (Not serviced separately order lift handle)

$

$

Not available

7

Cub Cadet IH-384740-R2

Stop, Lift Arm

$

$

Currently unavailable

Bolt, 1/2-13 X 1-1/4 C-Z Crg

$

$

Not available

Cub Cadet 712-0206

Nut, 1/2-13 C-Z Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0921

Washer, 1/2 C-Z Med Lock

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 736-0272

Washer, 17/32 X 1-1/16 X .095 C-Z

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 703-0364

Ratchet, Lift

$

$

Not available

9

Cub Cadet IH-400382-R1

Spacer Assy, Lift Ratchet

$

$

Not available

Bolt, 3/8-16 X 2-1/4 Sq Nc Crg

$

$

Not available

Nut, 3/8-16 Hex

$

$

Not available

Cub Cadet 736-0148

Washer, 3/8 Ext Tooth Lock

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet IH-384739-R1

Bracket, Lift Handle Shaft

$

$

Not available

~NLA

Screw, 3/8-16 X 3/4 Hex Hd Cap

$

$

Not available

11

Cub Cadet IH-384636-R1

Grip, Lift Handle

$

$

Not available
