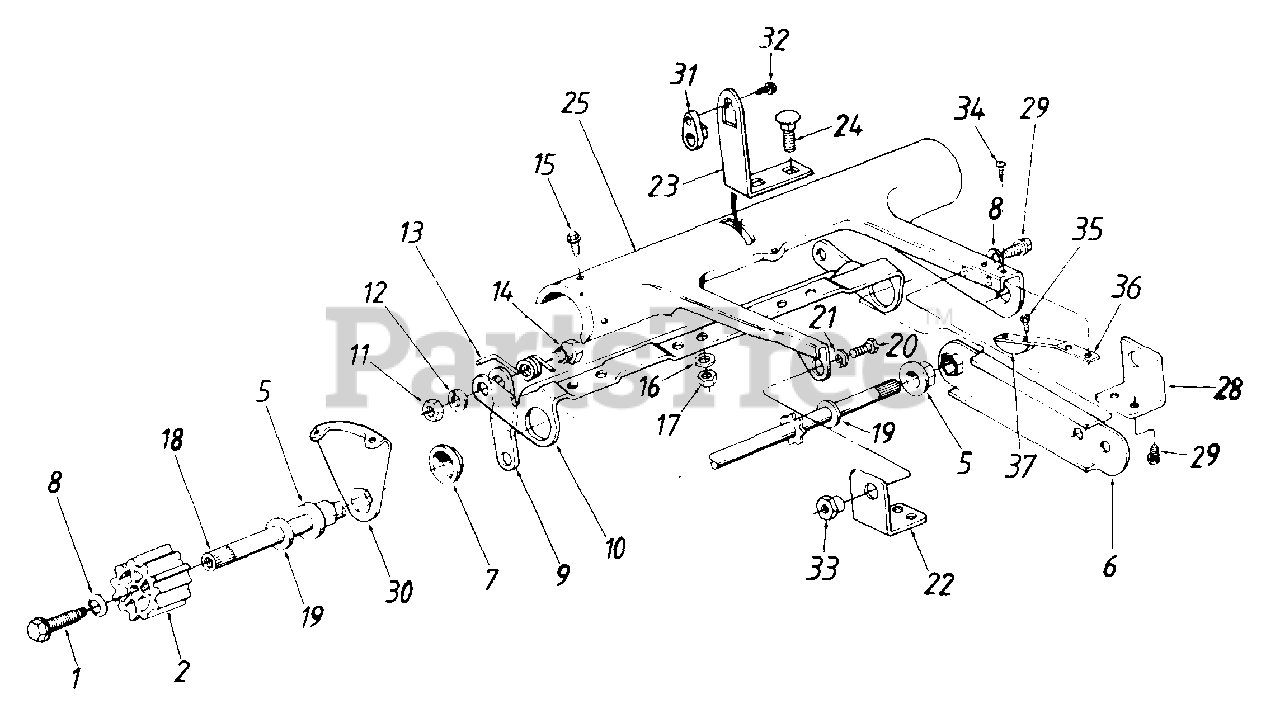

122-280R715 - MasterCut by MTD Walk-Behind Mower (1992) (Value Home Center) Drive Engagement Cam Parts Diagram

Walk-Behind Mower

Drive Engagement Cam Parts Diagram

  • Title

1

MTD 710-1115

Hex Scr. 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

2

MTD 731-0908

Wheel Drive Pinion
(Superseded to 931-0908)

$16.99

$

Usually ships in 3-6 days

0

5

MTD 741-0503

Hex Flange Brg..504" I.D.

$3.49

$

Usually ships in 3-6 days

0

6

MTD 17018

Hex Bearing Support

Variations

MTD 17018-0637

No Longer Available SUPPORT-BE - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 741-0504

Flange Bearing .879" I.D.

$

$

Not available

8

MTD 736-0270

Bell-Wash..265" I.D. x .75" O.O.

$3.99

$

In Stock, Qty 20+

0

9

MTD 14760A

Link 4.58" Lg.

Variations

MTD 14760A-0637

No Longer Available LINK - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 16832

Drive Engagement Cam

$

$

Not available

11

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 732-0569

Torsion Spring - R.H.
(Superseded to 732-0569A)

$

$

Not available

MTD 732-0570

Torsion Spring - L.H.
(Superseded to 732-0570A)

Note: (Not Shown)

$

$

Not available

14

MTD 738-0754

Shoulder Bolt .437" Dia.

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0892

Hex L-Hd. AB-Tap Scr. 1/4" x 62" Lg.
(Superseded to 910-0892)

$

$

Not available

16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

18

MTD 738-0732

Drive Shaft Ass'y.

$

$

Not available

19

MTD 736-0160

Fl -Wash..531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

MTD 710-0168

Hex Bolt 3/8-16 x .5" Lg.

$3.99

$

Usually ships in 3-6 days

0

21

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 17614

Pivot Bracket - R.H.

Note: (280,282)

Variations

MTD 17614-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 16756

Engagement Arm - L.H.

Variations

MTD 16756-0637

No Longer Available ARM-ENGAGE - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

25

MTD 17726

Rear Pinion Pivot Cover

Variations

MTD 17726-0637

No Longer Available COVER-REAR - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 17613

Pivot Bracket - L.H.

Note: (280,282)

Variations

MTD 17613-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 710-0892

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

30

MTD 17017

Hex Bearing Axle Brkt.

Variations

MTD 17017-0637

No Longer Available BRACKET-AX - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 746-0606

Barrel Cable Hold-Down - R.H.

$

$

Not available

32

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0

33

MTD 738-0529

Shld. Nut .625" Dia. x .165" Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

34

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

MTD 710-0429

Hex B-Tap Scr. #10 x 3/8" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

36

MTD 732-0634

Cantilever Spring

$

$

Not available

37

MTD 731-1136

Chain Tensioner

$2.49

$

In Stock, only 1 left!

0
