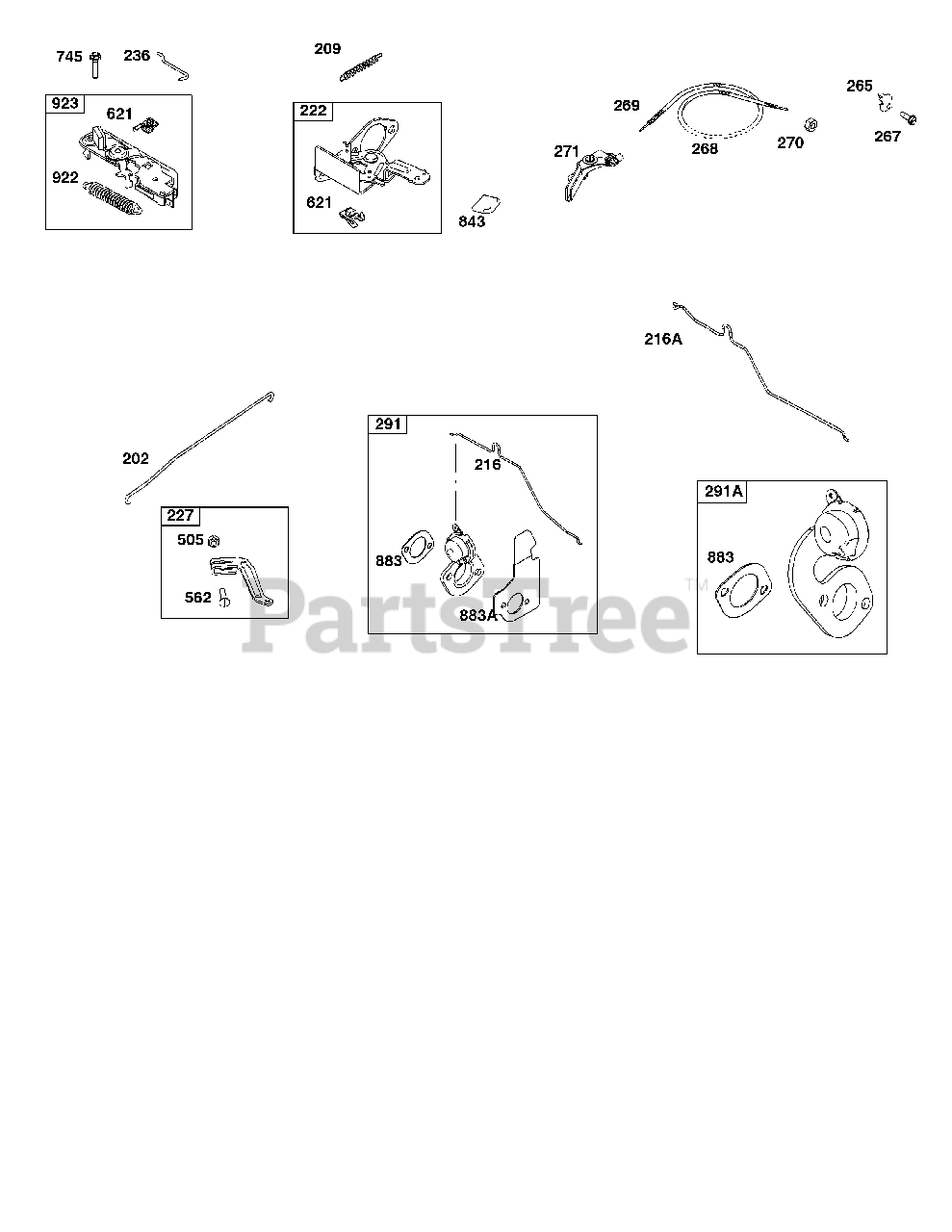

121Q02-0126-F1 - Briggs & Stratton Vertical Engine Controls, Governor Spring, Thermostat Parts Diagram

Vertical Engine

Controls, Governor Spring, Thermostat Parts Diagram

  • Title

202

Briggs & Stratton 796657

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 796484

SPRING, Governor

$7.49

$

In Stock, Qty 10

0

216

Briggs & Stratton 796485

Link-Choke

Note: Used Before Code Date 11070100

$9.49

$

Usually ships in 2-12 days

0

216A

Briggs & Stratton 798944

Link-Choke

Note: Used After Code Date 11063000

$9.49

$

In Stock, only 1 left!

0

222

Briggs & Stratton 796482

Bracket-Control

Note: (Manual Friction, Remote, & Fixed Speed Control)

$43.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 796487

Lever-Governor Control

$14.99

$

Usually ships in 2-12 days

0

236

Briggs & Stratton 691826

Link-Lockout

$7.99

$

In Stock, only 3 left!

0

265

Briggs & Stratton 690798

Clamp-Casing

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

291A

Briggs & Stratton 798938

Thermostat

$39.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 793515

NUT

Note: (Governor Control Lever)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 793514

Bolt

Note: (Governor Control Lever)

$7.49

$

In Stock, only 1 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

745

Briggs & Stratton 793491

Screw

Note: (Brake)

$3.49

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 691884

Sleeve-Lever

$4.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 793497

Gasket-Exhaust

$7.49

$

In Stock, Qty 20+

0

883A

Briggs & Stratton 796677

Gasket-Exhaust

$9.49

$

In Stock, only 3 left!

0

922

Briggs & Stratton 692135

Spring-Brake

$8.49

$

In Stock, Qty 13

0

923

Briggs & Stratton 796635

Brake

$43.99

$

In Stock, only 1 left!

0
