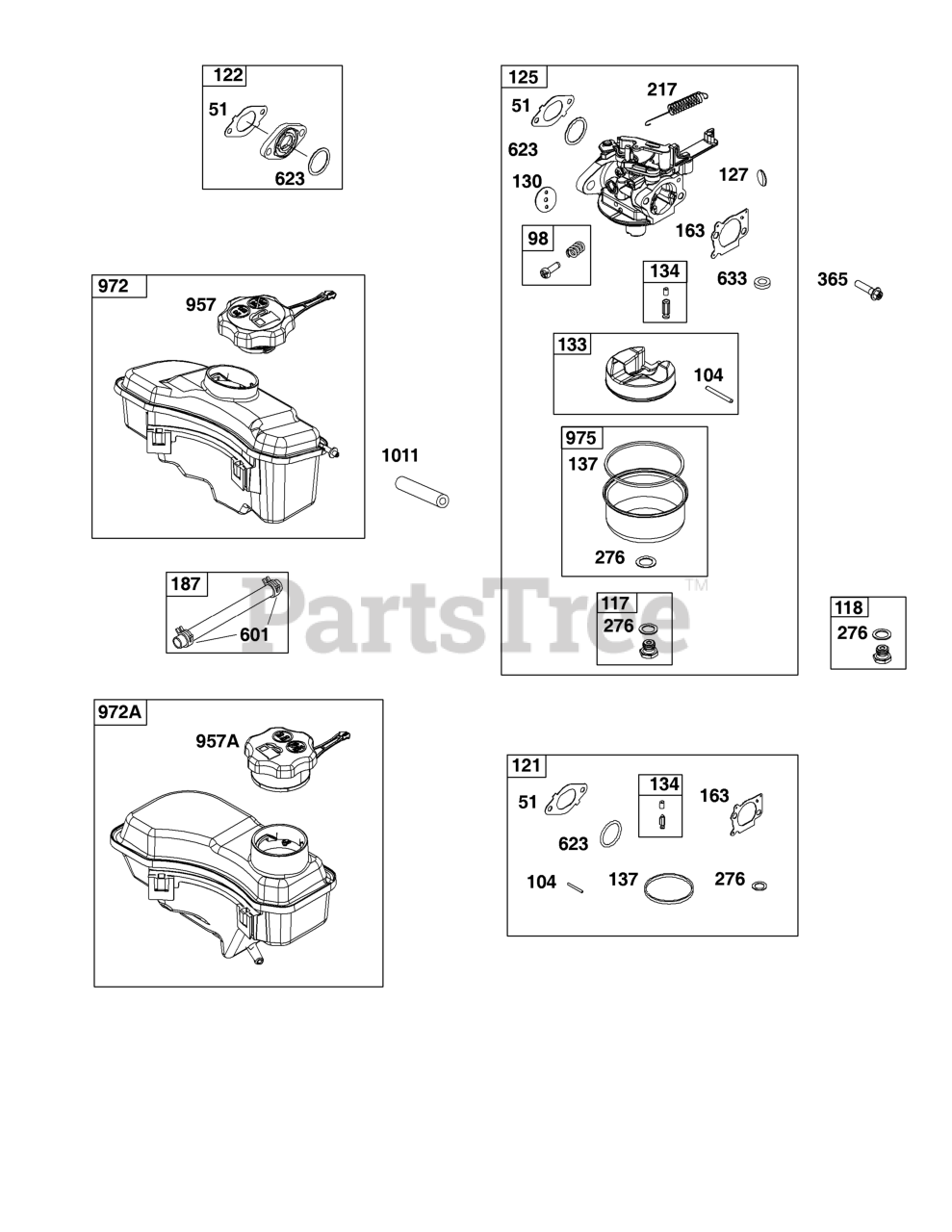

121P02-0005-F1 - Briggs & Stratton Vertical Engine Carburetor and Fuel Supply Group Parts Diagram

Vertical Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title
51

Briggs & Stratton 796596

Gasket-Intake

$4.49

$

In Stock, Qty 5

0

98

Briggs & Stratton 797156

Kit-Idle Speed

$12.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 596856

JET, Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 798606

JET, Main

Note: (High Altitude)

$

$

Currently unavailable

121

Briggs & Stratton 592172

Kit-Carburetor Overhaul

$32.99

$

In Stock, Qty 20+

0

122

Briggs & Stratton 595285

Spacer-Carburetor

$

$

Not available

125

$67.99

$

In Stock, Qty 13

0

127

Briggs & Stratton 694468

Plug-Welch (Bowl Vent)

Note: (9.51 DIA)

$4.49

$

In Stock, only 3 left!

0

127

Briggs & Stratton 797633

Plug-Welch

Note: (7.95 DIA)

$4.99

$

In Stock, only 2 left!

0

130

Briggs & Stratton 797630

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 797626

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

134

Briggs & Stratton 799177

Kit-Needle/Seat

$11.99

$

In Stock, Qty 16

0

137

Briggs & Stratton 797625

Gasket-Float Bowl

$7.99

$

In Stock, Qty 9

0

163

Briggs & Stratton 691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 6

0

187

$7.99

$

In Stock, Qty 20+

0

217

Briggs & Stratton 799179

Spring-Choke Return

$7.49

$

In Stock, Qty 9

0

276

Briggs & Stratton 797632

Washer-Sealing

$7.99

$

In Stock, Qty 13

0

365

Briggs & Stratton 699484

Screw

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

601

$3.49

$

In Stock, Qty 20+

0

623

Briggs & Stratton 793628

Seal-O Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, Qty 17

0

633

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

In Stock, only 1 left!

0

957

Briggs & Stratton 594061

Cap-Fuel Tank
(Superseded to 84004416)

$16.99

$

In Stock, Qty 20+

0

972

Briggs & Stratton 594112

TANK, Fuel
(Superseded to 84004115)

$56.99

$

Usually ships in 2-12 days

0

975

$43.99

$

In Stock, only 2 left!

0

1011

$10.99

$

Usually ships in 2-12 days

0
