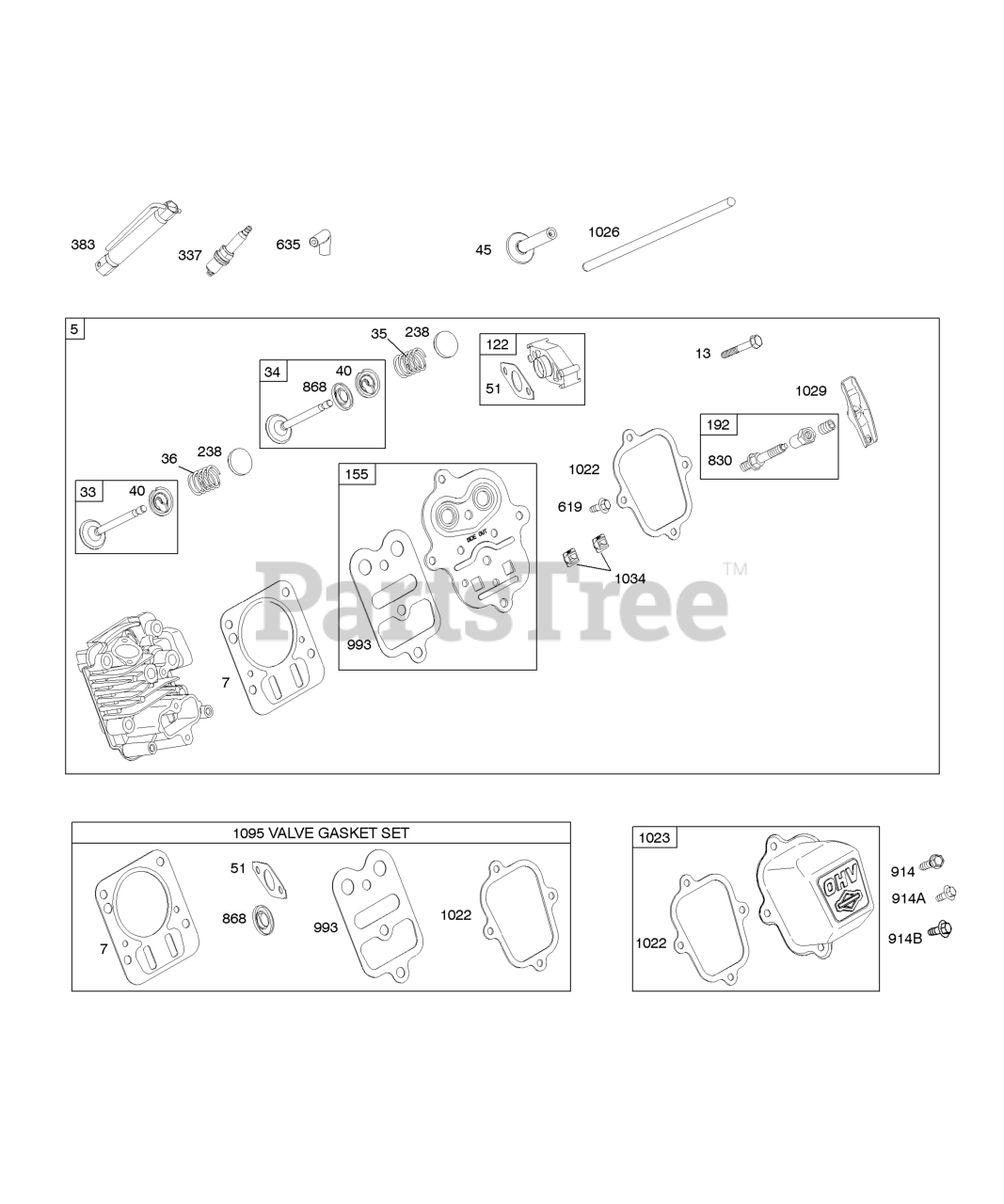

121A02-0020-E1 - Briggs & Stratton Horizontal Engine Cylinder Head Parts Diagram

Horizontal Engine

Cylinder Head Parts Diagram

  • Title
5

Briggs & Stratton 797439

Head-Cylinder
(Superseded to 594514)

Note: (Metric) Used After Code Date 09061700

$

$

Not available

5

Briggs & Stratton 699486

Head-Cylinder
(Superseded to 594514)

Note: (SAE) Used Before Code Date 09061800

$

$

Not available

7

Briggs & Stratton 698210

Gasket-Cylinder Head

$8.99

$

In Stock, Qty 18

0

13

Briggs & Stratton 699482

Screw

Note: (Cylinder Head)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 499642

Valve-Exhaust

$35.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 499641

Valve-Intake
(Superseded to 795443)

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 691304

Spring-Valve

Note: (Intake)

$5.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 691304

Spring-Valve

Note: (Exhaust)

$5.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 18

0

122

Briggs & Stratton 795643

Spacer-Carburetor

$13.99

$

In Stock, Qty 10

0

155

Briggs & Stratton 698214

Plate-Cylinder Head

Note: (SAE) Used Before Code Date 09061800

$10.99

$

Usually ships in 2-12 days

0

155

Briggs & Stratton 797442

Plate-Cylinder Head

Note: (Metric) Used After Code Date 09061700

$17.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 797440

Adjuster-Rocker Arm

Note: (Metric) Used After Code Date 09061700

$13.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 694543

Adjuster-Rocker Arm

Note: (SAE) Used Before Code Date 09061800

$

$

Not available

238

$9.49

$

In Stock, Qty 9

0

337

Briggs & Stratton 691043

PLUG, Spark

Note: (EMS)

$6.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 491055S

PLUG, Spark

Note: (Resistor)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374S

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

619

Briggs & Stratton 699481

SCREW

Note: (Cylinder Head Plate)

$3.99

$

In Stock, only 4 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

830

Briggs & Stratton 694544

Stud-Rocker Arm

Note: (SAE) Used Before Code Date 09061800

$7.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 797441

Stud-Rocker Arm

Note: (Metric) Used After Code Date 09061700

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

$13.99

$

In Stock, Qty 9

0

914

Briggs & Stratton 699481

SCREW

Note: (Rocker Cover) (Bottom)

$3.99

$

In Stock, only 4 left!

0

914A

Briggs & Stratton 692557

Screw

Note: (Rocker Cover) (Top) Used Before Code Date 09061800

$3.99

$

Usually ships in 2-12 days

0

914A

Briggs & Stratton 797444

Screw

Note: (Rocker Cover) (Top) Used After Code Date 09061700

$3.99

$

Usually ships in 2-12 days

0

914B

Briggs & Stratton 697551

Screw
(Superseded to 691108)

Note: (Rocker Cover) (Center) Used Before Code Date 09061800

$3.49

$

In Stock, Qty 20+

0

914B

Briggs & Stratton 797444S

Screw

Note: (Rocker Cover) (Center) Used After Code Date 09061700

$

$

Not available

993

Briggs & Stratton 694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 17

0

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 5

0

1023

Briggs & Stratton 499924

Cover-Rocker
(Superseded to 595245)

$37.99

$

Usually ships in 2-12 days

0

1026

$11.99

$

In Stock, only 2 left!

0

1029

Briggs & Stratton 691230

Arm-Rocker

Note: (SAE) Used Before Code Date 09061800

$9.49

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 797443

Arm-Rocker

Note: (Metric) Used After Code Date 09061700

$10.99

$

In Stock, only 1 left!

0

1034

Briggs & Stratton 691343

Guide-Push Rod

$9.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 791798
