12194 - Troy-Bilt Horse Rear-Tine Tiller (SN: 121941100101 - 121941199999) Handlebar Assembly And Control Levers Parts Diagram

Horse Rear-Tine Tiller

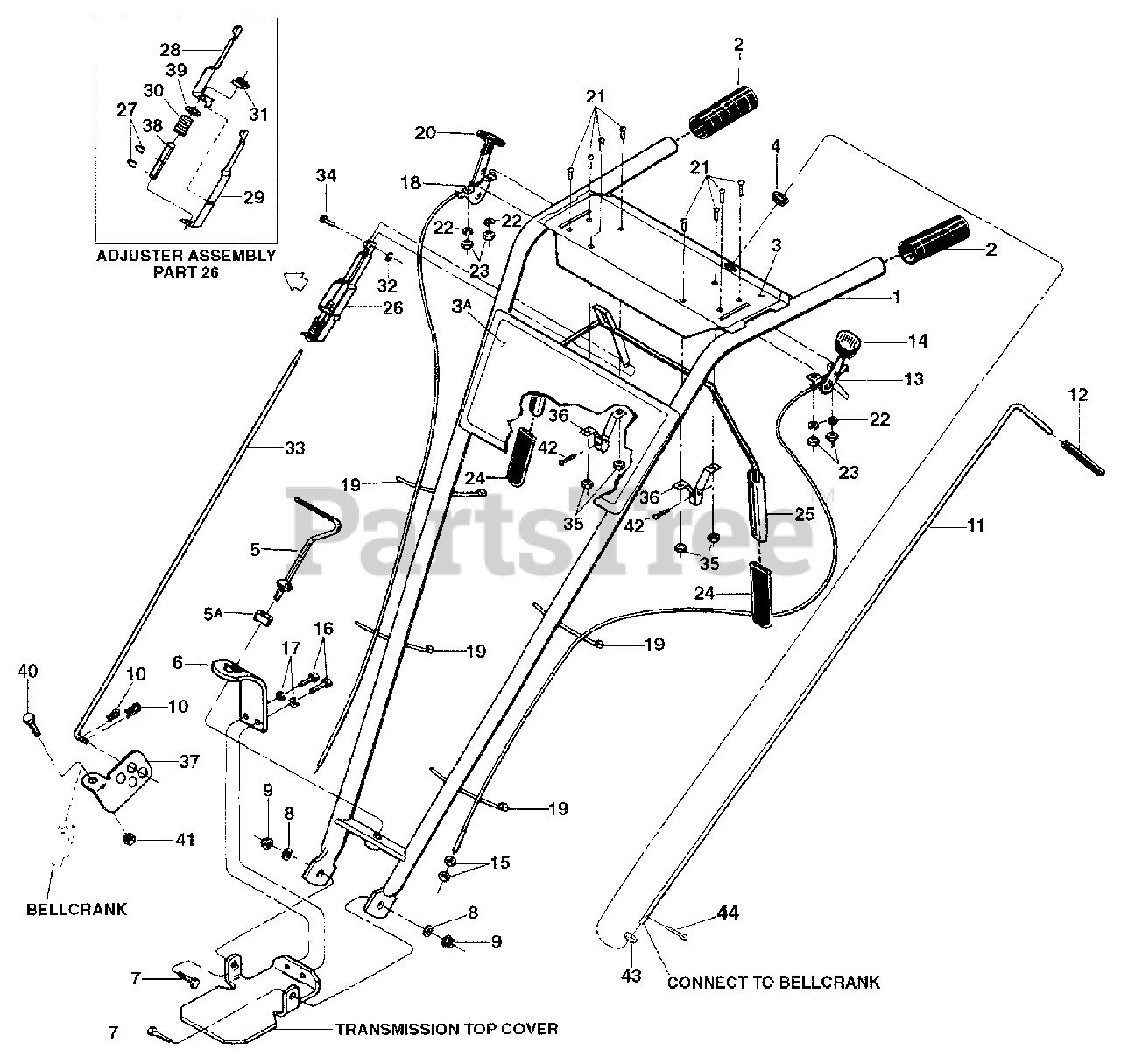

Handlebar Assembly And Control Levers Parts Diagram

  • Title

1

Troy-Bilt 1917117

Handlebars

Note: (Incl. Ref. No.'s 2, 3, 3A and 4)

$

$

Not available

2

Troy-Bilt 9126

Grip-handlebars
(Superseded to 720-0274)

$11.99

$

In Stock, only 1 left!

0

3

MTD 1916927

Decal-for operator control panel

$

$

Not available

3A

Troy-Bilt GW-1916926

Decal- Logo

$

$

Currently unavailable

4

MTD 9251

Grommet-plastic (part of operator control panel)

$

$

Not available

5

Troy-Bilt 1186347

Handle, height adjustment
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

5A

Troy-Bilt 9955

Washer-keyed
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 8

0

6

Troy-Bilt 1900475001

Bracket-handlebar height adjust
(Superseded to 1900475010)

$21.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1100046

Screw-hex hd., 3/8-16 x 1
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 9904

Washer-plain (flat) 3/8, S.A.E.
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

Locknut-hex, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

MTD 1916896

Reverse Clutch Lever-complete

Note: (Incl. grip, #9198)

$

$

Not available

12

Troy-Bilt 9198

Grip-reverse clutch lever

$

$

Currently unavailable

13

Troy-Bilt 1916639

Wheel Gear Control & Cable Assy.
(Superseded to 1916639P)

$

$

Not available

14

Troy-Bilt 9057

Knob-wheel gear control lever
(Superseded to GW-9057)

$8.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 1186211

Nut-hex, 5/16-24, wheel gear cable adjustment
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 1100068

Screw-hex hd., 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

17

Troy-Bilt 1100243

Lockwasher-3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

18

MTD GW-9445

Engine Throttle Control & Cable

$

$

Not available

19

Troy-Bilt 9202

Ties-plastic
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 9212

Knob-throttle control lever
(Superseded to 731-0108)

$9.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 1114748

Screw-round hd, No. 10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1100240

Lockwasher-No. 10

$

$

Not available

23

Troy-Bilt 1186208

Nut-hex, No. 10-32

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 9390

Grip-paddle
(Superseded to GW-9390)

$4.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 20863

Bail-forward clutch control
(Superseded to 1918840)

Note: (Incl. two Grips, Ref. No. 24)

$116.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 20862

Adjuster Assembly
(Superseded to GW-20862)

Note: (Incl. Ref. No.'s 27, 28, 29, 30, 38 and 39)

$

$

Not available

27

Troy-Bilt 9532

Klip Ring
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

28

MTD 20808

Adjuster, Right Side

$

$

Not available

29

Troy-Bilt 20809

Adjuster, Left Side
(Superseded to GW-20809)

$

$

Not available

30

MTD 9059

Spring-Adjuster

$

$

Not available

31

MTD 9522

Nut-rectangular

$

$

Not available

32

MTD 9386

Klip Ring

$

$

Not available

33

MTD 20831

Rod-forward clutch
(Superseded to GW-20831)

$

$

Not available

34

MTD GW-97083

Pin-Clevis

$

$

Not available

35

Troy-Bilt 9853

Sems Nut
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 20806

Bracket-bail support
(Superseded to GW-20806)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 20888

Swivel

$

$

Not available

38

MTD 9432

Bushing

$

$

Not available

39

MTD 9973

Washer

$

$

Not available

40

Troy-Bilt 1100805

Screw-hex hd., 1/4-20 x 3/4
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt GW-9811

Nut-1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

42

Troy-Bilt 9552

Screw-flanged hex hd, self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

43

MTD 20545

Washer-flat, 5/16"

$

$

Not available

44

Troy-Bilt 1185147

Pin - cotter
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0
