12194 - Troy-Bilt Horse Rear-Tine Tiller (SN: 121941100101 - 121941199999) Forward / Reverse Idler Assembly Parts Diagram

Horse Rear-Tine Tiller

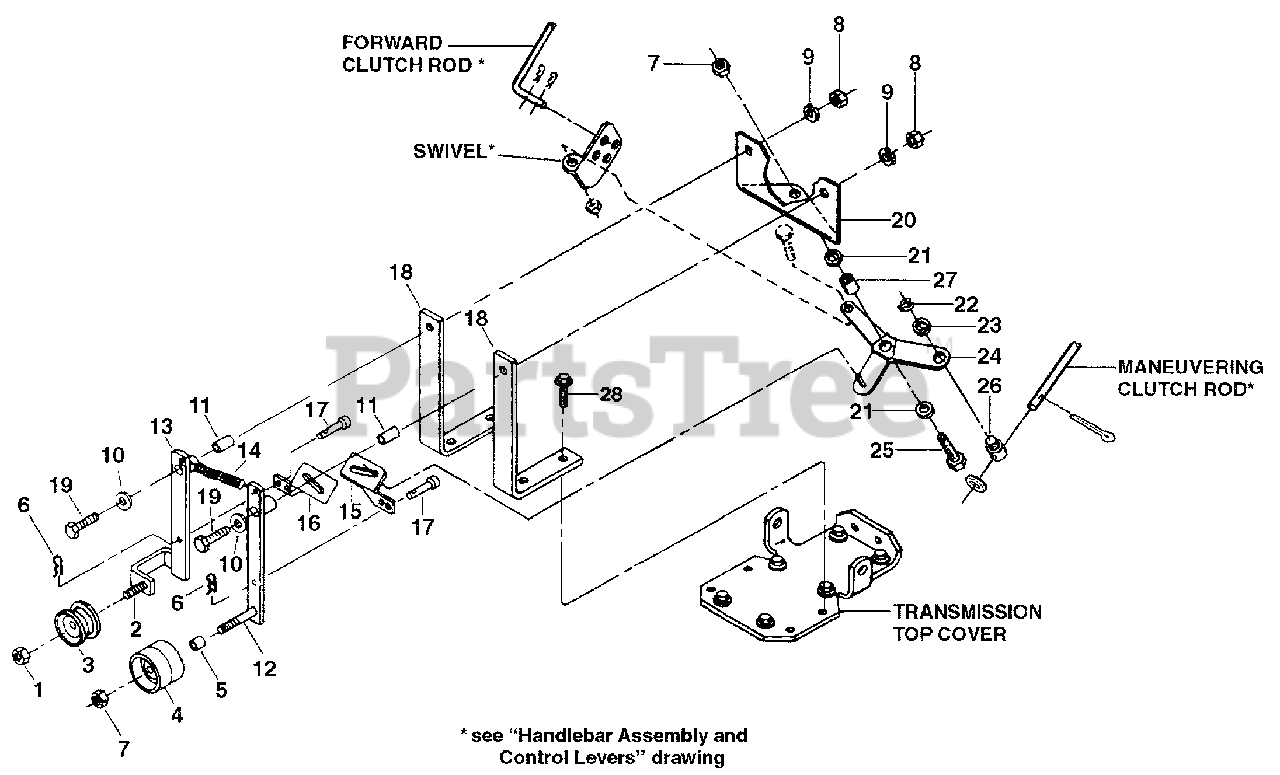

Forward / Reverse Idler Assembly Parts Diagram

  • Title

1

Troy-Bilt 1185506

Locknut-hex, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

2

Troy-Bilt 1110043

Screw-hex hd, 3/8-16 x 1-1/4
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1909266

Pulley-idler, reverse tiller direction
(Superseded to 756-0199)

$25.99

$

In Stock, only 2 left!

0

4

Troy-Bilt GW-9193

Pulley-idler, forward tiller direction

$35.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 1113-1

Spacer
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 9338

Hairpin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 1110108

Locknut-hex, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

8

Troy-Bilt 1186230

Nut-hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1100242

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 20545

Washer-plain, 5/16

$

$

Not available

11

MTD 9479

Pivot Bushing

$

$

Not available

12

MTD 1916192001

Idler Arm-left, forward tiller direction

$

$

Not available

13

MTD 1909682001

Idler Arm-right, reverse tiller direction

$

$

Not available

14

Troy-Bilt 1492

Spring
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

15

MTD 20517-01

Forward Link

$

$

Not available

16

Troy-Bilt 20517-02

Reverse Link

$

$

Currently unavailable

17

MTD 9340

Pin

$

$

Not available

18

MTD 1916194001

Mounting Bar

$

$

Not available

19

Troy-Bilt 1111607

Screw-hex hd., 5/16-18 x 2-1/4
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

20

MTD 1916195001

Shifting Base

$

$

Not available

21

Troy-Bilt 20553

Spacer-Bushing
(Superseded to GW-20553)

$

$

Not available

22

Troy-Bilt 9532

Klip Ring
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 20546

Washer-pivot
(Superseded to GW-20546)

$

$

Not available

24

Troy-Bilt 1916196001

Bellcrank

$43.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 1100043

Screw-hex hd., 3/8-16 x 1-1/4
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1916897

Pivot-for Reverse Clutch lever

$26.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 20532

Bushing-bellcrank
(Superseded to GW-20532)

$

$

Not available

28

Troy-Bilt 1186331

Screw-flanged hex hd., 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0
