12194 - Troy-Bilt Horse Rear-Tine Tiller (SN: 121941100101 - 121941199999) Engine, Support Brackets, Pulleys, Belts And Belt Cover Parts Diagram

Horse Rear-Tine Tiller

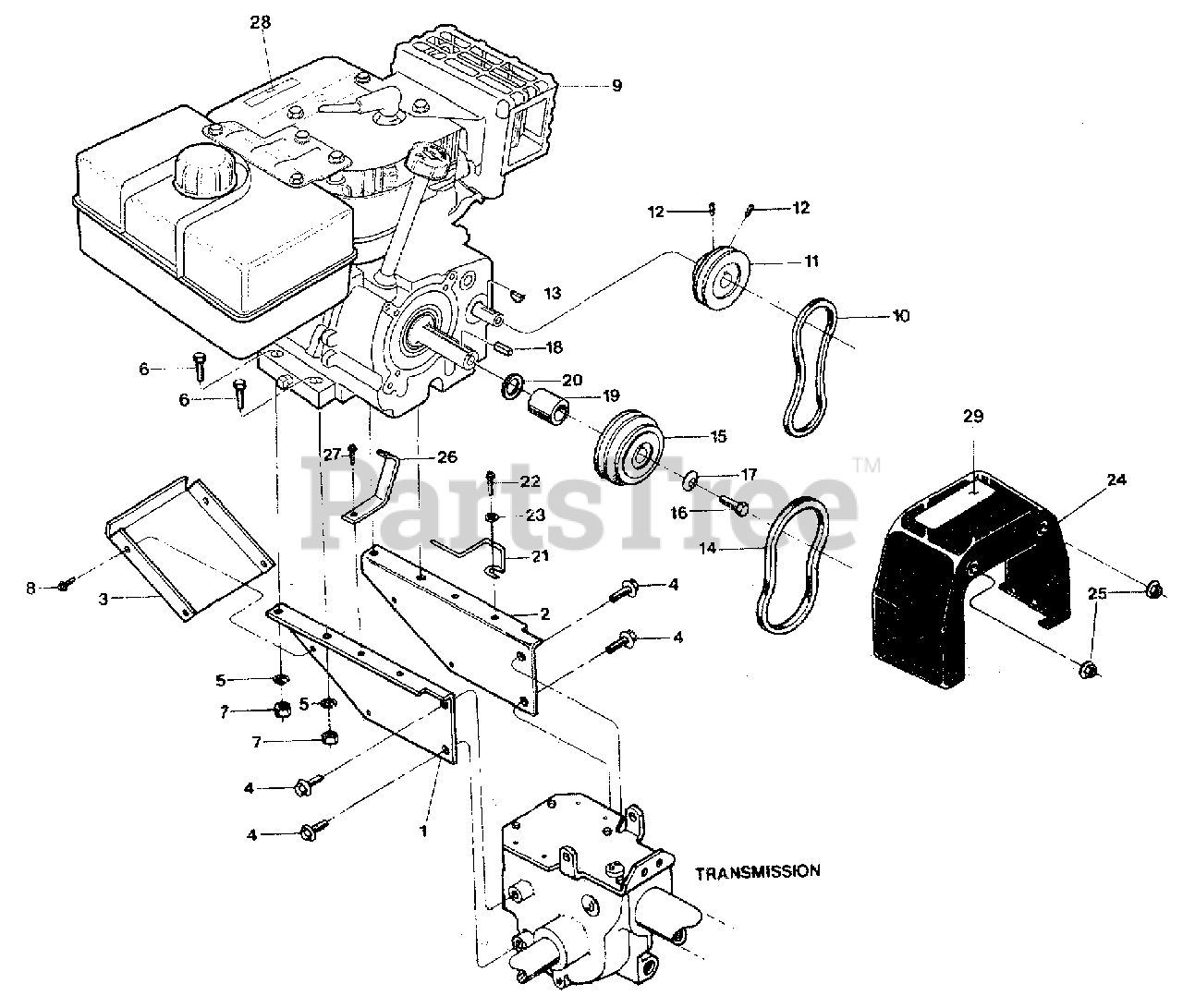

Engine, Support Brackets, Pulleys, Belts And Belt Cover Parts Diagram

  • Title

1

MTD 1916604001

Support Bracket-engine, left side

$

$

Not available

2

MTD 1916602001

Support Bracket-engine, right side

$

$

Not available

3

Troy-Bilt 1916189001

Support Bracket (Pan)-engine, front
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt GW-1186329

Screw-flanged hex hd., 5/16-18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1100242

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1100799

Screw-hex hd , 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1186321

Nut-hex, 5/16-18

$

$

Currently unavailable

8

Troy-Bilt 1900396

Screw-hex hd., 10-32 x 1/2, self-tapping

$5.99

$

Usually ships in 3-6 days

0

9

Engine

Note: Contact the factory or an authorized dealer for replacement engine information. See an authorized engine service dealer for engine parts or service. Refer to engine nameplate for engine type and code.

$

$

Not available

10

Troy-Bilt GW-9022

Flat Belt-reverse drive

$30.99

$

In Stock, only 2 left!

0

11

MTD GW-2477

Reverse Pulley-engine driven, for flat belt (Ref No 10)

$

$

Not available

12

MTD 9561

Set Screw-Socket Head, 1/4-20 x 1/4

$

$

Not available

13

MTD 9361

Key-Woodruff (size #5)

$

$

Not available

14

Troy-Bilt 1909404

V-Belt-forward drive
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

15

Troy-Bilt GW-2476

Forward Pulley-engine drive, for V-Belt (Ref. No. 14)

$

$

Currently unavailable

16

Troy-Bilt 1100004

Screw-hex hd., 5/16-24 x 3/4
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

17

Troy-Bilt 9944

Washer-disc spring (concave surface faces forward pulley)
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 9301

Key-3/16 sq. x 1
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

19

MTD GW-50141

Spacer

$

$

Not available

20

Troy-Bilt 1138-2

Shim
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

21

MTD 1916190001

Belt Guide-forward drive belt

$

$

Not available

22

Troy-Bilt 9573

Screw-hex hd., self-tapping, 1/4-20 x 3/4
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt GW-9900

Washer-plain (flat), 1/4, S.A.E.
(Superseded to 936-3020)

$

$

Not available

24

Troy-Bilt 1904569

Cover
(Superseded to 731-05290)

Note: (Incl. Ref. No. 29)

$26.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1186391

Nut-5/16-18, locking, whiz-style
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

26

MTD 1916191001

Belt Guide-reverse drive belt

$

$

Not available

27

Troy-Bilt 9552

Screw-flanged hex hd., self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

28

MTD 1900766

Decal-Stabilization

$

$

Not available

29

MTD 1904557

Decal-Hot surfaces/belt warning

$

$

Not available

$

$

Not available
