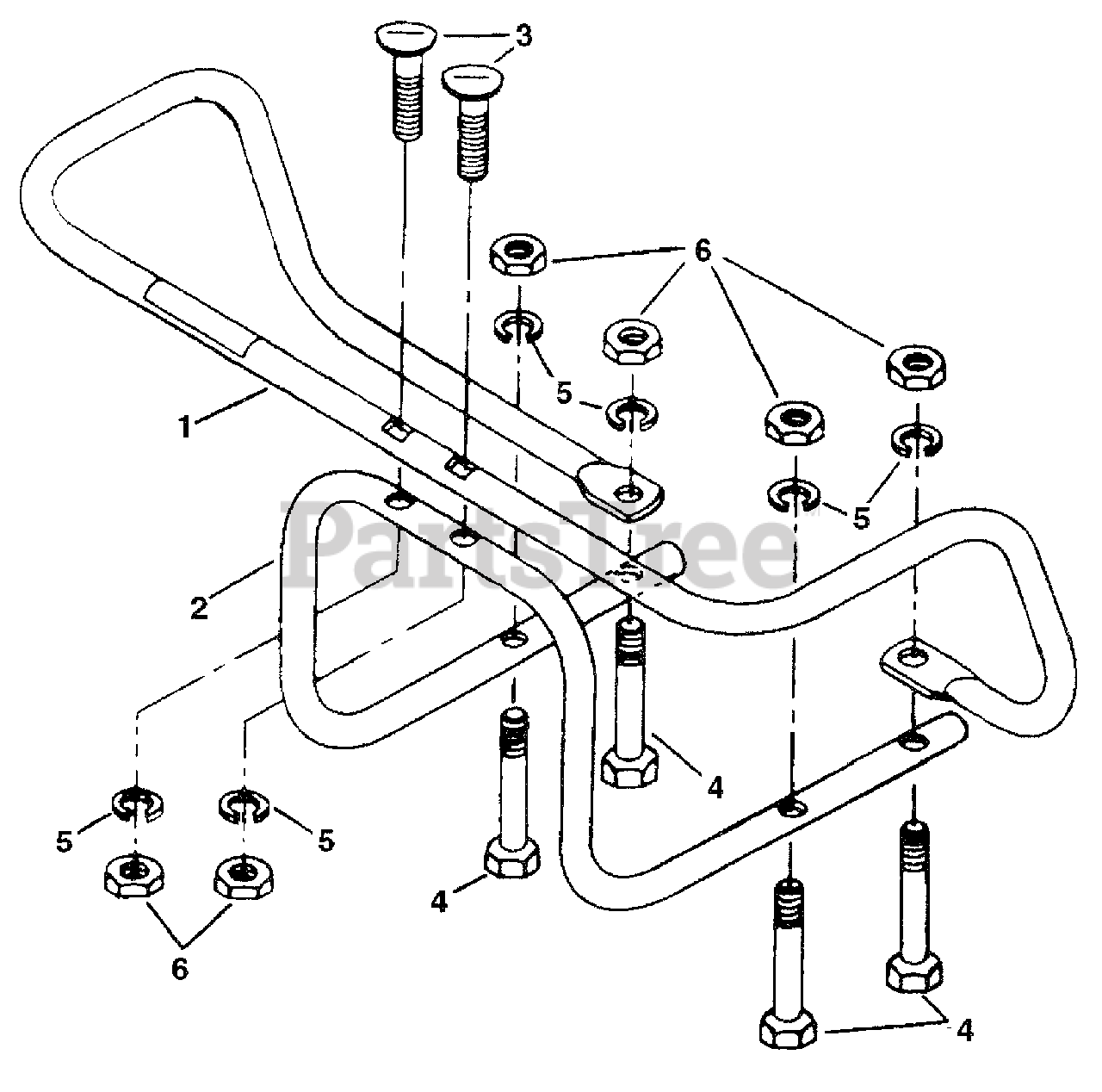

12194 - Troy-Bilt Horse Rear-Tine Tiller (SN: 121941100101 - 121941199999) Bumper Assembly Parts Diagram

Horse Rear-Tine Tiller

Bumper Assembly Parts Diagram

  • Title

1

MTD 1916714001

Bumper-top section

$

$

Not available

2

Troy-Bilt 1904758001

Bumper-bottom section
(Superseded to 749-04193-0637)

$54.99

$

In Stock, Qty 6

0

3

Troy-Bilt 1731025

Bolt-curved head, 5/16-18 x 2 (special bolt);
(Superseded to 710-1174)

Note: Also see #1915811 hardware kit

$7.49

$

In Stock, Qty 20+

0

4

MTD 1111608

Bolt-hex hd., 5/16-18 x 2-1/2,

Note: Not avail. separately (order #1915811 hardware kit

$

$

Not available

5

Troy-Bilt 1100242

Lockwasher-5/16,
(Superseded to 936-0119)

Note: Not avail. separately (order #1915811 hardware kit

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1186230

Nut-hex, 5/16-18,
(Superseded to 912-3010)

Note: Not avail. separately (order #1915811 hardware kit

$4.49

$

In Stock, Qty 20+

0

MTD 1915811

Hardware Kit:

Note: Two #1731025 curved head bolts; four #1111608 hex hd. bolts; six #1100242 lock washers: six #1186230 hex nuts

$

$

Not available
