12191 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 121911100101 - 121911199999) Wheels Parts Diagram

Tuffy Rear-Tine Tiller

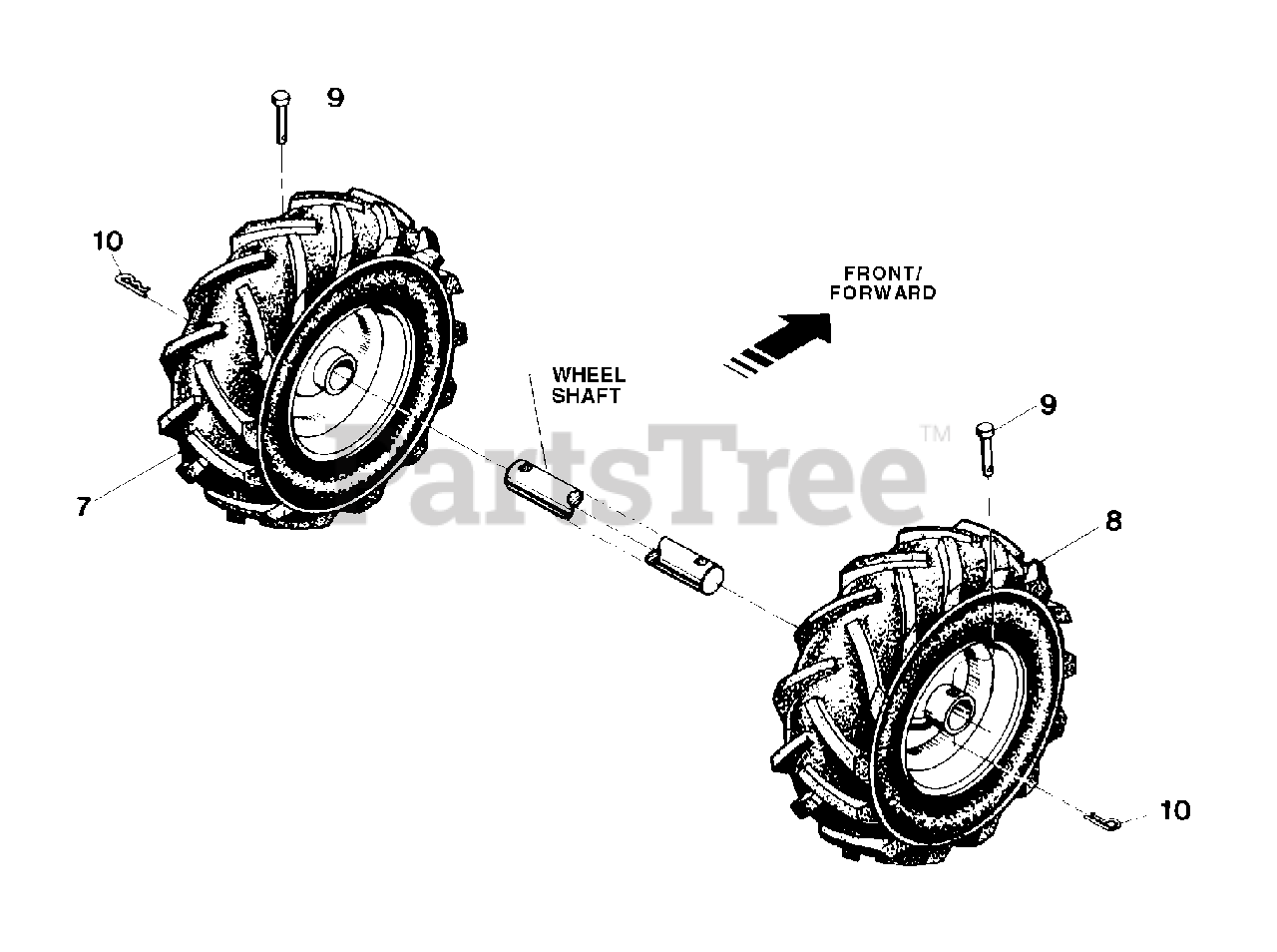

Wheels Parts Diagram

  • Title
7

Troy-Bilt 55095-01

Wheel & Tire Assy-Left Side
(Superseded to 734-04162)

Note: Model 12190 - 3HP

$

$

Not available

MTD 20918-01

Wheel & Tire Assy-Left Side
(Superseded to 634-04201-0911)

Note: Model 12191 - 5HP

$

$

Not available

MTD 2706-01

Wheel & Tire Assy-Left Side

Note: Model 12193 - 6.5HP

$

$

Not available

8

Troy-Bilt 55095-02

Wheel & Tire Assy-Right Side
(Superseded to 734-04161)

Note: Model 12190 - 3HP

$

$

Not available

MTD 20918-02

Wheel & Tire Assy-Right Side
(Superseded to 634-04202-0911)

Note: Model 12191 - 5HP

$

$

Not available

MTD 2706-02

Wheel & Tire Assy-Right Side

Note: Model 12193 - 6.5HP

$

$

Not available

9

Troy-Bilt 9380

Clevis Pin-.312 x 1-3/4, secures wheel hub to wheel shaft
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt 9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0
